DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

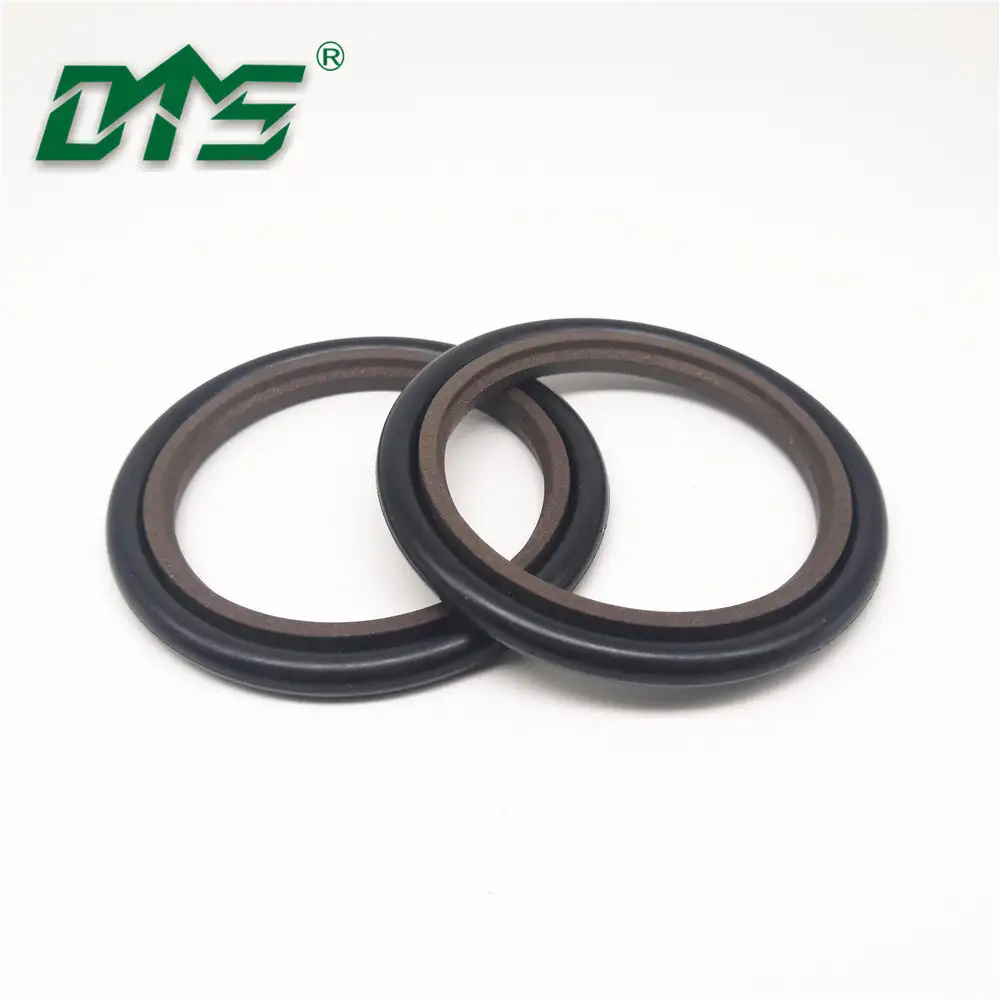

Rod Seals
Rod seals for hydraulic cylinders seal the system pressure on the rod side of the cylinder aginst the athmosphere.
They seal the pressures during the stroke phase and position holding operation of the cylinder.
The individual profile design show specific behaviors and perfomance which need to be in line with the application´s requirements.
There are single or tandem designs of reod sealing systems. The rod sealing system considers also the wiper and the guiding elements.
Product Name | Factory High Demand Products Bearing Oil Seal |
Category | Hydraulic seals, Pneumatic seals, customize seals |
Type | Rod seals |
Material | PTFE, NBR |
PTFE Fillers | Carbon, graphite, glass, MoS2, bronze and virgin PTFE |
Propeties | High temperature, low temperature, high pressure, low pressure, friction resistance |
Color | Brown, green |
Sizes | Standard and customize |
Temperature | -45℃ +200℃ |
Miedum | Hydraulic oil, anti-fire fluid, water, gas etc |
Pressure | 0-60MPa |
Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
DMS SEALS was established in 2008. We are a technology enterprise which specialized in the production of seals,
the development of seals material and the solution of the sealing of special working condition.
We own 120 staffs which including 70 middle and senior technicians.
Our factory covers more than 10000 square meters which including 8000 square meters for the workshop.
Our production equipment and test equipment are on leading level in the same industry.
We are the one of the biggest enterprise who specialized in manufacturing and developing seals in China.
We have long time cooperation and communication with many universities and research institutions at home and board.
We have already passed the certification of ISO 9001 and TS 16949. We have the mature technical reserve for the
solution of ultra-high temperature, ultra-high pressure, ultra-low temperature, highly corrosive and other special working
condition.
A: We are factory.
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
