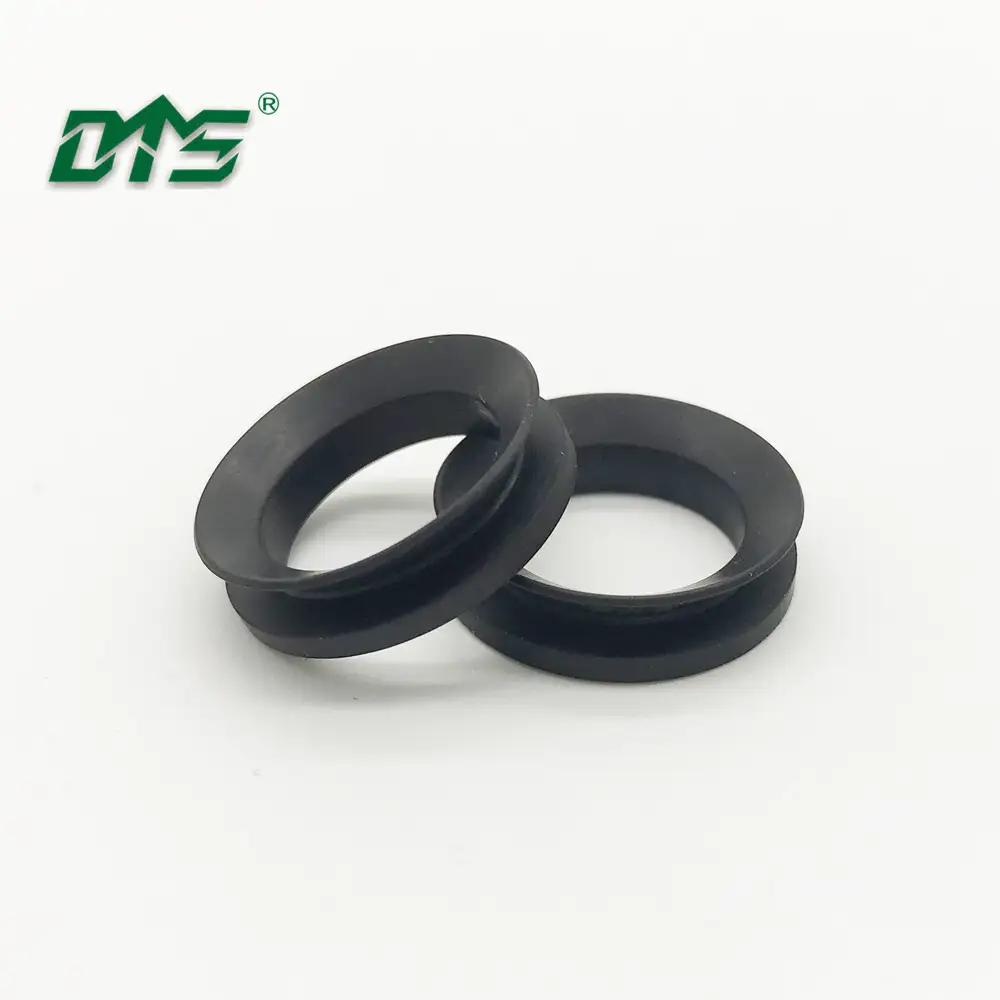

Product Name | VS NBR Seal, Black NBR V Ring S |
Materials | NBR/FKM |
Feature | water resistance |
Temperature | -30~+100°C |
Hardness | 60,70shores A or customize |
Color | brown,black |
Size | various |
About size:
Please refer to the size of the NBR seal below. Free sample is available.
If you want to know more about the product or other seals,
Further information on NBR V ring seal, please contact me online or send me email below.
Size | Φd1 | Φd | c | A | B | Φd2 | Φd3 | Assembly width B1 |
VS-5 | 4.5-5.5 | 4 | 2 | 3.9 | 5.2 | d1+1 | d1+6 | 4.5±0.4 |
VS-6 | 5.5-6.5 | 5 | 2 | 3.9 | 5.2 | d1+1 | d1+6 | 4.5±0.4 |
VS-7 | 6.5-8 | 6 | 2 | 3.9 | 5.2 | d1+1 | d1+6 | 4.5±0.4 |
VS-8 | 8-9.5 | 7 | 2 | 3.9 | 5.2 | d1+1 | d1+6 | 4.5±0.4 |
VS-10 | 9.8-11.5 | 9 | 3 | 5.6 | 7.7 | d1+1 | d1+9 | 6.7±0.6 |
VS-12 | 11.5-13.5 | 10.5 | 3 | 5.6 | 7.7 | d1+1 | d1+9 | 6.7±0.6 |
VS-14 | 13.5-15.5 | 12.5 | 3 | 5.6 | 7.7 | d1+1 | d1+9 | 6.7±0.6 |
VS-16 | 15.5-17.5 | 14 | 3 | 5.6 | 7.7 | d1+1 | d1+9 | 6.7±0.6 |
VS-18 | 17.5-19 | 16 | 3 | 5.6 | 7.7 | d1+1 | d1+9 | 6.7±0.6 |
VS-20 | 19-21 | 18 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-22 | 21-24 | 20 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-25 | 24-27 | 22 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-28 | 27-29 | 25 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-30 | 29-31 | 27 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-32 | 31-33 | 29 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-35 | 33-36 | 31 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-38 | 36-38 | 34 | 4 | 7.9 | 10.5 | d1+2 | d1+12 | 9±0.8 |
VS-40 | 38-43 | 36 | 5 | 9.5 | 13 | d1+2 | d1+15 | 11±1 |
VS-45 | 43-48 | 40 | 5 | 9.5 | 13 | d1+2 | d1+15 | 11±1 |
VS-50 | 48-53 | 45 | 5 | 9.5 | 13 | d1+2 | d1+15 | 11±1 |
VS-55 | 53-58 | 49 | 5 | 9.5 | 13 | d1+2 | d1+15 | 11±1 |
VS-60 | 58-63 | 54 | 5 | 9.5 | 13 | d1+2 | d1+15 | 11±1 |
VS-65 | 63-68 | 58 | 5 | 9.5 | 13 | d1+2 | d1+15 | 11±1 |
VS-70 | 68-73 | 63 | 6 | 11.3 | 15.5 | d1+3 | d1+18 | 13.5±1.2 |
VS-75 | 73-78 | 67 | 6 | 11.3 | 15.5 | d1+3 | d1+18 | 13.5±1.2 |
VS-80 | 78-83 | 72 | 6 | 11.3 | 15.5 | d1+3 | d1+18 | 13.5±1.2 |
VS-85 | 83-88 | 76 | 6 | 11.3 | 15.5 | d1+3 | d1+18 | 13.5±1.2 |
VS-90 | 88-93 | 81 | 6 | 11.3 | 15.5 | d1+3 | d1+18 | 13.5±1.2 |
VS-95 | 93-98 | 85 | 6 | 11.3 | 15.5 | d1+3 | d1+18 | 13.5±1.2 |
VS-100 | 98-105 | 90 | 6 | 11.3 | 15.5 | d1+3 | d1+18 | 13.5±1.1 |
VS-110 | 105-115 | 99 | 7 | 13.1 | 18 | d1+4 | d1+21 | 15.5±1.5 |
VS-120 | 115-125 | 108 | 7 | 13.1 | 18 | d1+4 | d1+21 | 15.5±1.5 |
VS-130 | 125-135 | 117 | 7 | 13.1 | 18 | d1+4 | d1+21 | 10.5±1.5 |
VS-140 | 135-145 | 126 | 7 | 13.1 | 18 | d1+4 | d1+21 | 10.5±1.5 |
VS-150 | 145-155 | 135 | 7 | 13.1 | 18 | d1+4 | d1+21 | 10.5±1.5 |
VS-160 | 155-165 | 144 | 8 | 15 | 20.5 | d1+4 | d1+24 | 12±1.8 |
VS-170 | 165-175 | 153 | 8 | 15 | 20.5 | d1+4 | d1+24 | 12±1.8 |
VS-180 | 175-185 | 162 | 8 | 15 | 20.5 | d1+4 | d1+24 | 12±1.8 |
VS-190 | 185-195 | 171 | 8 | 15 | 20.5 | d1+4 | d1+24 | 12±1.8 |
VS-199 | 195-210 | 180 | 8 | 15 | 20.5 | d1+4 | d1+24 | 12±1.8 |
Exhibition
For people who have already washed or dried this product, they say that there was no shrinkage problem at all. Quality control of the seals is the basis for DMS Seals. For people who are ready to improve their foot health, this product will be a good choice for its excellent fit and comfort. Quality control of the seals is the basis for DMS Seals.
NBR Seal wholesale, contact DMS Seals.
