DMS SEALS TECHNOLOGY CO.,LIMITED
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

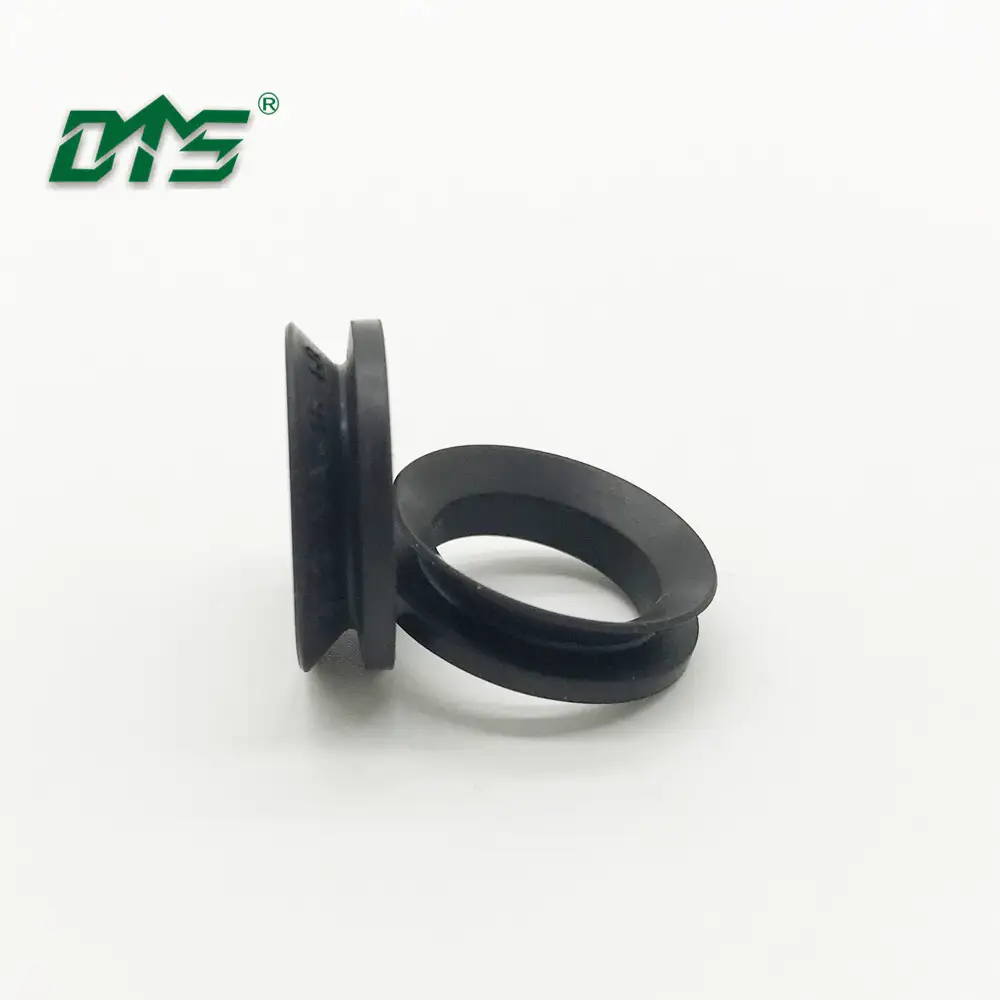

Product Name | VA NBR Seal,Black NBR V Ring A |
Materials | NBR/FKM |
Feature | water resistance |
Temperature | -30~+100°C |
Hardness | 60,70shores A or customize |
Color | brown,black |
Size | various |
About size:
Please refer the size below.Free sample is available .
If you want to know more about the product or other seals,
Please contact me online or send me email below.
Size | Φd1 | Φd | c | A | B |
VA-3 | 2.7-3.5 | 2.5 | 1.5 | 2.1 | 3 |
VA-4 | 3.5-4.5 | 3.2 | 2 | 2.4 | 3.7 |
VA-5 | 4.5-5.5 | 4 | 2 | 2.4 | 3.7 |
VA-6 | 5.5-6.5 | 5 | 2 | 2.4 | 3.7 |
VA-7 | 6.5-8 | 6 | 2 | 2.4 | 3.7 |
VA-8 | 8-9.5 | 7 | 2 | 2.4 | 3.7 |
VA-10 | 9.5-11.5 | 9 | 3 | 3.4 | 5.5 |
VA-12 | 11.5-13.5 | 10.5 | 3 | 3.4 | 5.5 |
VA-13 | 12.5-13.5 | 11.7 | 3 | 3.4 | 5.5 |
VA-14 | 13.5-15.5 | 12.5 | 3 | 3.4 | 5.5 |
VA-16 | 15.5-17.5 | 14 | 3 | 3.4 | 5.5 |
VA-18 | 17.5-19 | 16 | 3 | 3.4 | 5.5 |
VA-20 | 19-21 | 18 | 4 | 4.7 | 7.5 |
VA-22 | 21-24 | 20 | 4 | 4.7 | 7.5 |
VA-25 | 24-27 | 22 | 4 | 4.7 | 7.5 |
VA-28 | 27-29 | 25 | 4 | 4.7 | 7.5 |
VA-30 | 29-31 | 27 | 4 | 4.7 | 7.5 |
VA-32 | 31-33 | 29 | 4 | 4.7 | 7.5 |
VA-35 | 33-36 | 31 | 4 | 4.7 | 7.5 |
VA-38 | 36-38 | 34 | 4 | 4.7 | 7.5 |
VA-40 | 38-43 | 36 | 5 | 5.5 | 9 |
VA-45 | 43-48 | 40 | 5 | 5.5 | 9 |
VA-50 | 48-53 | 45 | 5 | 5.5 | 9 |
VA-55 | 53-58 | 49 | 5 | 5.5 | 9 |
VA-60 | 58-63 | 54 | 5 | 5.5 | 9 |
VA-65 | 63-68 | 58 | 5 | 5.5 | 9 |
VA-70 | 68-73 | 63 | 6 | 6.8 | 11 |
VA-75 | 73-78 | 67 | 6 | 6.8 | 11 |
VA-80 | 78-83 | 72 | 6 | 6.8 | 11 |
VA-85 | 83-88 | 76 | 6 | 6.8 | 11 |
VA-90 | 88-93 | 81 | 6 | 6.8 | 11 |
VA-95 | 93-98 | 85 | 6 | 6.8 | 11 |
VA-100 | 98-105 | 90 | 6 | 6.8 | 11 |
VA-110 | 105-115 | 99 | 7 | 7.9 | 12.8 |
VA-120 | 115-125 | 108 | 7 | 7.9 | 12.8 |
VA-130 | 125-135 | 117 | 7 | 7.9 | 12.8 |
VA-140 | 135-145 | 126 | 7 | 7.9 | 12.8 |
VA-150 | 145-155 | 135 | 7 | 7.9 | 12.8 |
VA-160 | 155-165 | 144 | 8 | 9 | 14.5 |
VA-170 | 165-175 | 153 | 8 | 9 | 14.5 |
VA-180 | 175-185 | 162 | 8 | 9 | 14.5 |
VA-190 | 185-195 | 171 | 8 | 9 | 14.5 |
VA-199 | 195-210 | 180 | 8 | 9 | 14.5 |
VA-200 | 190-210 | 180 | 15 | 14.3 | 25 |
VA-220 | 210-235 | 198 | 15 | 14.3 | 25 |
VA-250 | 235-265 | 225 | 15 | 14.3 | 25 |
VA-275 | 265-290 | 247 | 15 | 14.3 | 25 |
VA-300 | 290-310 | 270 | 15 | 14.3 | 25 |
VA-325 | 310-335 | 292 | 15 | 14.3 | 25 |
VA-350 | 335-365 | 315 | 15 | 14.3 | 25 |
VA-375 | 365-390 | 337 | 15 | 14.3 | 25 |
VA-400 | 390-430 | 360 | 15 | 14.3 | 25 |
VA-450 | 430-480 | 405 | 15 | 14.3 | 25 |
VA-500 | 480-530 | 450 | 15 | 14.3 | 25 |
VA-550 | 530-580 | 495 | 15 | 14.3 | 25 |
VA-600 | 580-630 | 540 | 15 | 14.3 | 25 |
VA-650 | 630-665 | 600 | 15 | 14.3 | 25 |
VA-700 | 665-705 | 630 | 15 | 14.3 | 25 |
VA-725 | 705-745 | 670 | 15 | 14.3 | 25 |
VA-750 | 745-785 | 705 | 15 | 14.3 | 25 |
VA-800 | 785-830 | 745 | 15 | 14.3 | 25 |
VA-850 | 830-870 | 785 | 15 | 14.3 | 25 |
VA-900 | 875-920 | 825 | 15 | 14.3 | 25 |
VA-950 | 920-965 | 865 | 15 | 14.3 | 25 |
VA-1000 | 965-1015 | 910 | 15 | 14.3 | 25 |
VA-1050 | 1015-1065 | 955 | 15 | 14.3 | 25 |
