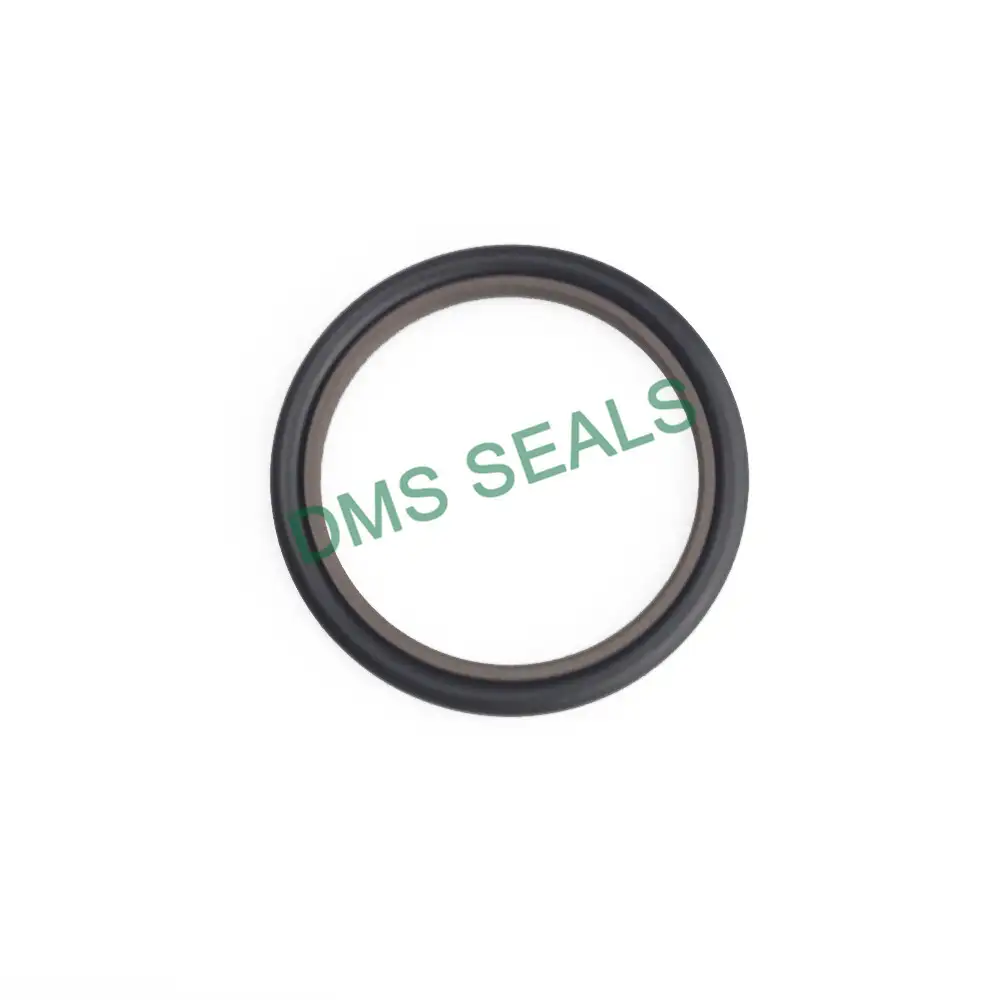

Spno Rolling Mill Bearing Seal Ring Mg Type Non-Skeleton Oil Seal 1
Spno Rolling Mill Bearing Seal Ring Mg Type Non-Skeleton Oil Seal 2
Spno Rolling Mill Bearing Seal Ring Mg Type Non-Skeleton Oil Seal 3
Spno Rolling Mill Bearing Seal Ring Mg Type Non-Skeleton Oil Seal 1
Spno Rolling Mill Bearing Seal Ring Mg Type Non-Skeleton Oil Seal 2
Spno Rolling Mill Bearing Seal Ring Mg Type Non-Skeleton Oil Seal 3

Spno Rolling Mill Bearing Seal Ring Mg Type Non-Skeleton Oil Seal

Inquiry

    oops...!

    no product data.

    Go to homepage
    Write a Review


    Product Description
    bg


    1. Installation Recommendation




                                                                     DMS Seal Manufacturer-Hydraulic Rod Seal | Shaft Oil Seals | O-ring Seal




    2. Application and properties

    The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.


    3. Standard materials

    Sealing ring: filled PTFE

    O-Ring: NBR / FKM


    4. Working Conditions

    Working  Conditions

    Diameter Range

    Pressure Range

    Temperature Range

    Speed

    Medium

    3 - 1600mm

    0 - 35MPa

    -30℃ +200℃

    1.5 m/s

    general hydraulic oil,water glycol Hydraulic oil and water emulsion type hydraulic oil.





    Product Parameters



    NO.SIZENO.SIZE
    1SPNO12*18*3.230SPNO130*145*6.5
    2SPNO14*20*3.231SPNO135*150*6.5
    3SPNO16*22*3.232SPNO140*155*6.5
    4SPNO18*24*3.233SPNO145*160*6.5
    5SPNO20*26*3.234SPNO150*170*10
    6SPNO22*31*435SPNO160*180*10
    7SPNO25*34*436SPNO170*190*10
    8SPNO28*37*437SPNO180*200*10
    9SPNO30*39*438SPNO190*210*10
    10SPNO32*41*439SPNO200*220*10
    11SPNO36*45*440SPNO210*230*10
    12SPNO40*49*441SPNO220*240*10
    13SPNO45*54*442SPNO224*244*10
    14SPNO50*65*6.543SPNO230*250*10
    15SPNO56*71*6.544SPNO240*260*10
    16SPNO60*75*6.545SPNO250*270*10
    17SPNO63*78*6.546SPNO260*280*10
    18SPNO70*85*6.547SPNO270*290*10
    19SPNO75*90*6.548SPNO280*300*10
    20SPNO80*95*6.549SPNO290*310*10
    21SPNO85*100*6.550SPNO300*320*10
    22SPNO90*105*6.551SPNO310*330*10
    23SPNO95*110*6.552SPNO320*340*10
    24SPNO100*115*6.553SPNO330*350*10
    25SPNO105*120*6.554SPNO340*360*10
    26SPNO110*125*6.555SPNO350*370*10
    27SPNO115*130*6.556SPNO360*380*10
    28SPNO120*135*6.557SPNO370*390*10
    29SPNO125*140*6.558SPNO380*400*10
