pneumatic piston seals ptfe DMS Seal Manufacturer Brand piston seals

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. The piston seals facility can pneumatic piston seals and you can specify hydraulic piston seals sizes.Seal we produced has applications in a wide range of fields
2. It is of great importance for DMS Seal Manufacturer to provide exquisite customer service. We have developed solutions of the sealing of special working condition
3. We have the skills and experience to supply your required hydraulic piston seals with any print and size. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
4. We can support OEM and ODM. The vigorous development of o-ring seal,hydraulic piston seals due to its hydraulic cylinder piston seals features.

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

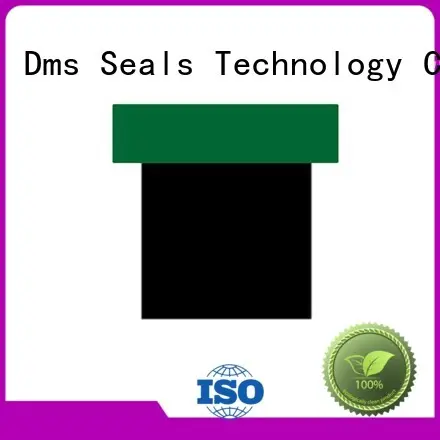

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
30 31.5 32	20.5 22 22.5	4.3 4.3 4.3	4.5 4.5 4.5	SPG3020.54.5 SPG31.5224.5 SPG3222.54.5
35 35.5 40	25.5 26 30	4.3 4.3 4.3	4.5 4.5 4.5	SPG3525.54.5 SPG35.5264.5 SPG40304.5
45 50 55	35 40 45	4.3 4.3 4.3	4.5 4.5 4.5	SPG45354.5 SPG50404.5 SPG55454.5
56 60 63	46 50 48	4.3 4.3 7.3	4.5 4.5 7.5	SPG56464.5 SPG60504.5 SPG63487.5
65 69 70	50 54 55	7.3 7.3 7.3	7.5 7.5 7.5	SPG65507.5 SPG69547.5 SPG70557.5
71 75 80	56 60 65	7.3 7.3 7.3	7.5 7.5 7.5	SPG71567.5 SPG75607.5 SPG80657.5
85 90 95	70 75 80	7.3 7.3 7.3	7.5 7.5 7.5	SPG85707.5 SPG90757.5 SPG95807.5
100 105 108	85 90 92	7.3 7.3 7.3	7.5 7.5 7.5	SPG100857.5 SPG105907.5 SPG108927.5
110 112 120	94 96 104	7.3 7.3 7.3	7.5 7.5 7.5	SPG110947.5 SPG112967.5 SPG1201047.5
125 130 135	109 114 119	7.3 7.3 7.3	7.5 7.5 7.5	SPG1251097.5 SPG1301147.5 SPG1351197.5
140 145 150	124 129 134	7.3 7.3 7.3	7.5 7.5 7.5	SPG1401247.5 SPG1451297.5 SPG1501347.5
155 160 170	139 144 148	7.3 7.3 10.8	7.5 7.5 11	SPG1551397.5 SPG1601447.5 SPG17014811

Installation Dimensions

Company Features
1. piston seals is developed using latest technology support for pneumatic piston seals.
2. Relentless pursuit of quality excellence is significant to Dms Seals Technology Co.,limited. Ask!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
