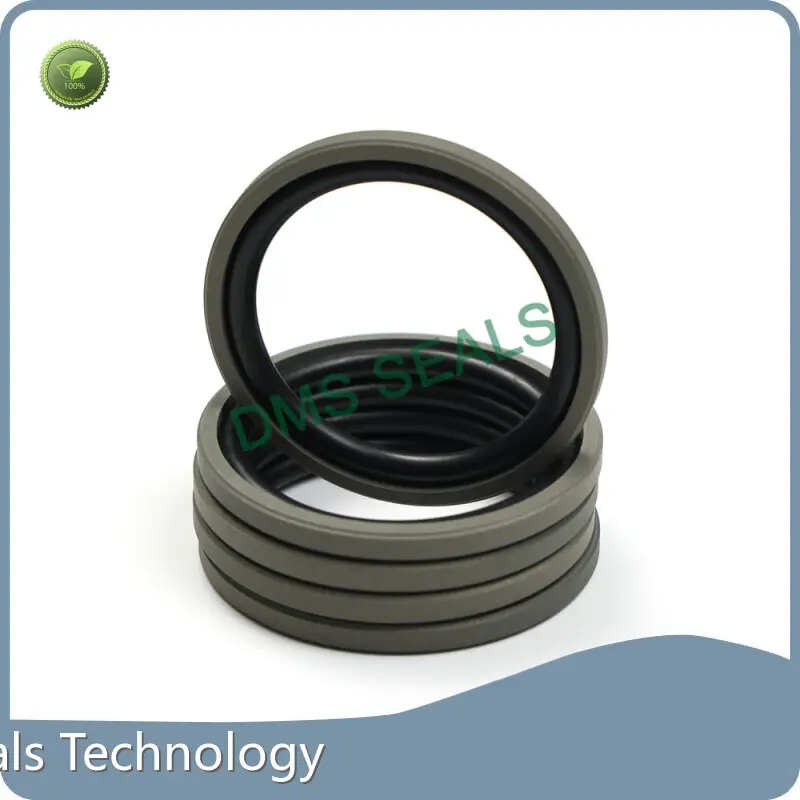

Wiper Seal Design Scraper Seals Wholesale - DMS Seals

1. Performance and use

It is suitable for two-way sealing of reciprocating pistons, especially for quick-response cylinders in control cylinders, servo cylinders, machine tools and construction machinery.

Small coefficient of friction, wear resistance, long life. It can work with or without lubrication, and can be used for oil-free lubrication cylinder seals.

The adaptability of the working medium and the working temperature range can be changed by changing the material of the O-ring.

It can be used in special working conditions such as extremely high speed, extremely low speed, and micro stroke.

Adapt to the one-piece piston, the installation groove is small, which is beneficial to the design of the cylinder size.

Comply with GB/T 15242.1-94 and GB/T 15242.3-94 standards.

It has good extrusion resistance and can adapt to larger installation gaps.

Products with different cross-sections can be selected according to the actual working pressure. In principle, the greater the working pressure, the larger the cross-section should be selected.

The seal is especially suitable for frequent and rapid reversing oil cylinders.

2. Materials

Sealing ring: Filled with polytetrafluoroethylene (PTFE). According to different working conditions and sealing requirements, different filling materials and filling processes can be selected, please contact us for details.

O-ring: nitrile rubber NBR, fluororubber FKM. The material of the O-ring is determined according to the temperature and working medium of the working condition, if you are not sure, please contact us. If you need to match fluorine rubber (FKM) O-ring, you need to explain before ordering.

3. Matters needing attention:

Ⅰ. Under normal circumstances, this seal has a certain amount of static leakage. If there are strict requirements on maintaining the static position, it is recommended to use it with caution.

Ⅱ. If other parameters of the matched O-ring are qualified, the diameter of the ring is 1-2% different from the value listed in the sample, which will not affect the use.

Ⅲ. When installing, be careful not to twist the O-ring.

Ⅳ. Before installation, use tooling or hot oil to expand the slip ring, and return it to its original shape after installation.

Company Advantages

· It is icing on the cake for DMS Seals to carry out the latest design for wiper seal design.

· Our QC team will double check to ensure the quality of this product.

· Dms Seals Technology Co.,limited closely contacts and pays attention to customers.

Company Features

· Dms Seals Technology Co.,limited is a high reliability supplier and manufacturer of wiper seal design.

· Through the high-end technology, wiper seal design is produced to be of high quality.

· Efficiency and waste reduction are the focus jobs towards sustainable development. We will adopt new technology to improve all aspects of production to reduce energy consumption while maintaining high efficiency.

Application of the Product

The wiper seal design developed and produced by our company can be widely used in various industries and professional fields.

Dms Seals Technology has been engaged in the production of O-ring Seal,Oil Seal Manufacturer for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
