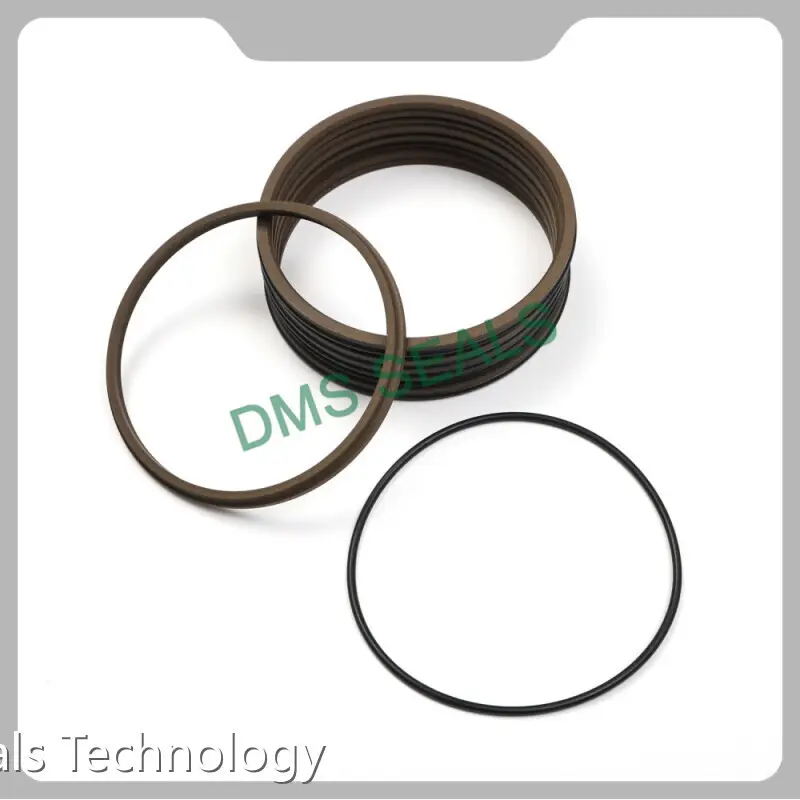

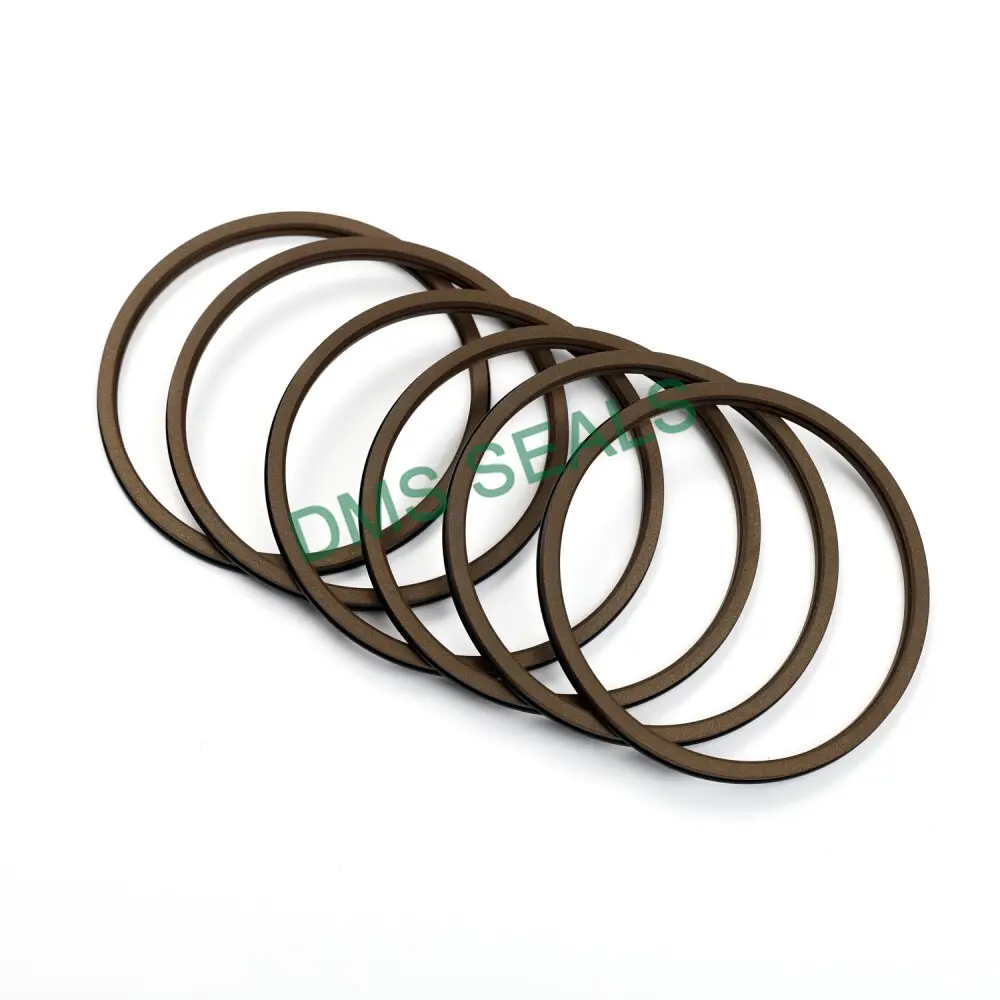

Wiper Seal Design by DMS Seals
Product details of the wiper seal design
Product Overview
The outline of wiper seal design is reasonably designed. Our professional quality check team ensures this cost-effective and high performance product. Dms Seals Technology's wiper seal design is of excellent quality and is widely used in the industry. Dms Seals Technology Co.,limited can accept logo printing on our wiper seal design.
Product Description
The wiper seal design produced by Dms Seals Technology has better quality, as shown below.
GSZ is a reciprocating seal installed on the piston rod to prevent external dust from mixing into the hydraulic cylinder.
Precautions for the use of dust rings: all dust rings cannot bear pressure, that is, they do not have sealing function. Their function is only to prevent dust, and they must be used together with other seals; During the design, the lip of the dust ring shall not be cut due to contact with the piston rod hole or the opposite side of the wrench.
| Item | Specifications |
| Product Name | Combination Dust Ring Gsz Sealing Ring V Type Combination Ring |
| Products Category | Hydraulic seals, Oil seals, O-Rings |
| Material | PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc. |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Sizes | Standard and customize |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
| NO. | SIZE | NO. | SIZE |
| 1 | GSZ20*27.6*4.2 | 30 | GSZ140*156*9.5 |
| 2 | GSZ25*32.6*4.2 | 31 | GSZ145*161*9.5 |
| 3 | GSZ28*35.6*4.2 | 32 | GSZ150*166*9.5 |
| 4 | GSZ30*37.6*4.2 | 33 | GSZ155*171*9.5 |
| 5 | GSZ32*39.6*4.2 | 34 | GSZ160*176*9.5 |
| 6 | GSZ36*43.6*4.2 | 35 | GSZ165*181*9.5 |
| 7 | GSZ40*48.8*6.3 | 36 | GSZ170*186*9.5 |
| 8 | GSZ42*50.8*6.3 | 37 | GSZ175*191*9.5 |
| 9 | GSZ45*53.8*6.3 | 38 | GSZ180*196*9.5 |
| 10 | GSZ50*58.8*6.3 | 39 | GSZ190*206*9.5 |
| 11 | GSZ55*63.8*6.3 | 40 | GSZ200*216*9.5 |
| 12 | GSZ56*64.8*6.3 | 41 | GSZ210*226*9.5 |
| 13 | GSZ60*68.8*6.3 | 42 | GSZ220*236*9.5 |
| 14 | GSZ63*71.8*6.3 | 43 | GSZ240*256*9.5 |
| 15 | GSZ65*73.8*6.3 | 44 | GSZ250*266*9.5 |
| 16 | GSZ70*82.2*8.1 | 45 | GSZ260*276*9.5 |
| 17 | GSZ75*87.2*8.1 | 46 | GSZ270*286*9.5 |
| 18 | GSZ80*92.2*8.1 | 47 | GSZ280*296*9.5 |
| 19 | GSZ85*97.2*8.1 | 48 | GSZ300*316*9.5 |
| 20 | GSZ90*102.2*8.1 | 49 | GSZ320*336*9.5 |
| 21 | GSZ95*107.2*8.1 | 50 | GSZ330*346*9.5 |
| 22 | GSZ100*112.2*8.1 | 51 | GSZ350*366*9.5 |
| 23 | GSZ105*117.2*8.1 | 52 | GSZ360*376*9.5 |
| 24 | GSZ110*122.2*8.1 | 53 | GSZ380*396*9.5 |
| 25 | GSZ115*127.2*8.1 | 54 | GSZ400*424*14 |
| 26 | GSZ120*132.2*8.1 | 55 | GSZ440*464*14 |
| 27 | GSZ125*137.2*8.1 | 56 | GSZ450*474*14 |
| 28 | GSZ130*142.2*8.1 | 57 | GSZ480*504*14 |
| 29 | GSZ135*147.2*8.1 | 58 | GSZ500*524*14 |
