Silicone O Ring Kit by DMS Seals

Inquiry

more products

Send your inquiry

Company Advantages

· The production of DMS Seals silicone o ring kit abides by the international quality standards.

· The product meets the international quality standards and can withstand any rigorous quality and performance tests

· Leading in all directions, DMS Seals's sales network is very comprehensive.

Product Description

1. Performance and use

O-rings are the most used seals in actual production and life, which can seal one-way pressure, two-way pressure or alternating pressure.

It is mainly used for static seals, and a small part of dynamic seals (often pneumatic reciprocating motion) are also used. In dynamic applications, it is only recommended for better conditions. In rotary motion, if the pressure is low and the lubrication is sufficient, it can be recommended.

The service life of O-rings depends on factors such as system lubrication, pressure, temperature, sealing gap, speed, medium and surface quality of metal parts.

Wide range of materials, all kinds of rubber, plastic and even metal can be used as O-ring seal materials. Therefore, its medium adaptability and temperature adaptability are extremely wide.

Small mounting groove size.

Simple structure and low price.

2. Materials

Now the commonly used materials are NBR (butadiene rubber) and FKM (fluorine rubber). NBR is used for ordinary working conditions, mainly oil-proof and waterproof; FKM is mainly used for working conditions with high temperature (<160°C).

3. Performance parameters

	Static seal	Dynamic seal
Work pressure	Without retaining ring, up to 10MPa; with retaining ring, up to 40MPa; with special retaining ring, up to 200MPa;	When there is no retaining ring, the maximum pressure can reach 0.5MPa; when there is a retaining ring, the maximum pressure is 1MPa.
Movement speed	-	The maximum reciprocating speed can reach 0.3m/s, and the maximum rotation speed can reach 2.0m/s.
Temperature	Nitrile rubber NBR: -30℃～110℃; Fluorine rubber FKM: -20℃～160℃

Product Parameters

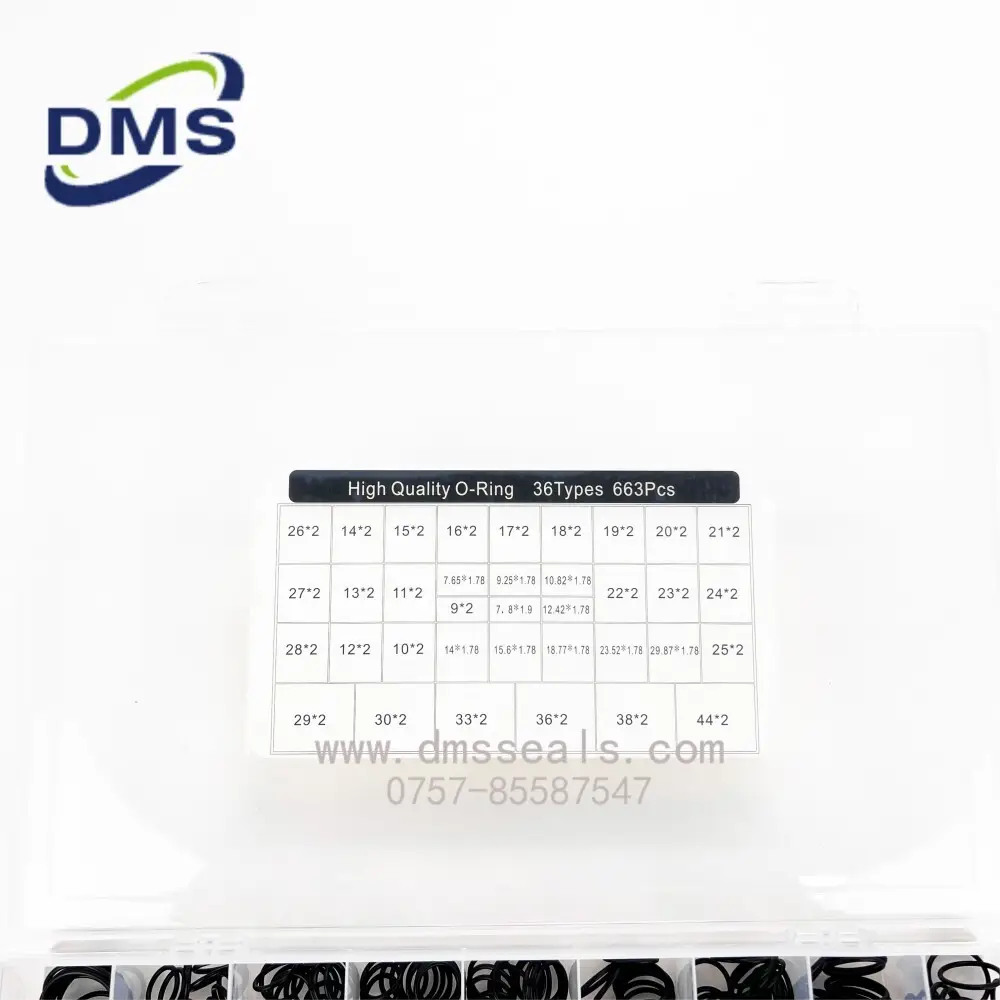

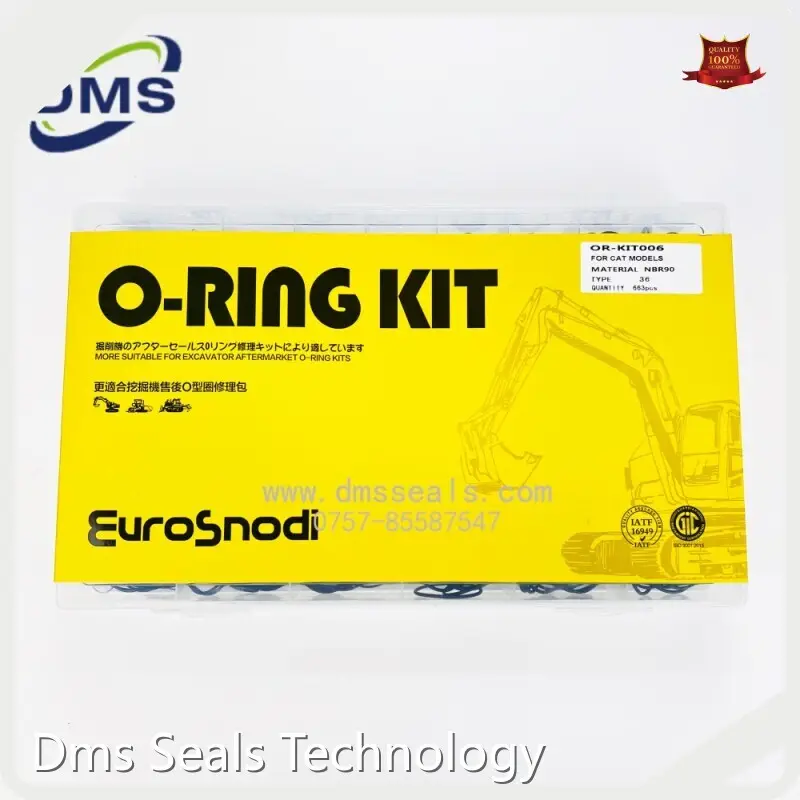

OR-KIT006 NBR90 663PCS
1	7.65*1.78	20	19	17*2	20
2	9.25*1.78	20	20	18*2	20
3	10.82*1.78	20	21	19*2	20
4	12.42*1.78	20	22	20*2	20
5	14*1.78	20	23	21*2	20
6	15.6*1.78	20	24	22*2	20
7	18.77*1.78	30	25	23*2	20
8	23.52*1.78	20	26	24*2	20
9	29.87*1.78	25	27	25*2	20
10	7.8*1.9	20	28	26*2	12
11	9*2	20	29	27*2	12
12	10*2	20	30	28*2	12
13	11*2	20	31	29*2	12
14	12*2	20	32	30*2	12
15	13*2	20	33	33*2	12
16	14*2	20	34	36*2	12
17	15*2	20	35	38*2	12
18	16*2	20	36	44*2	12

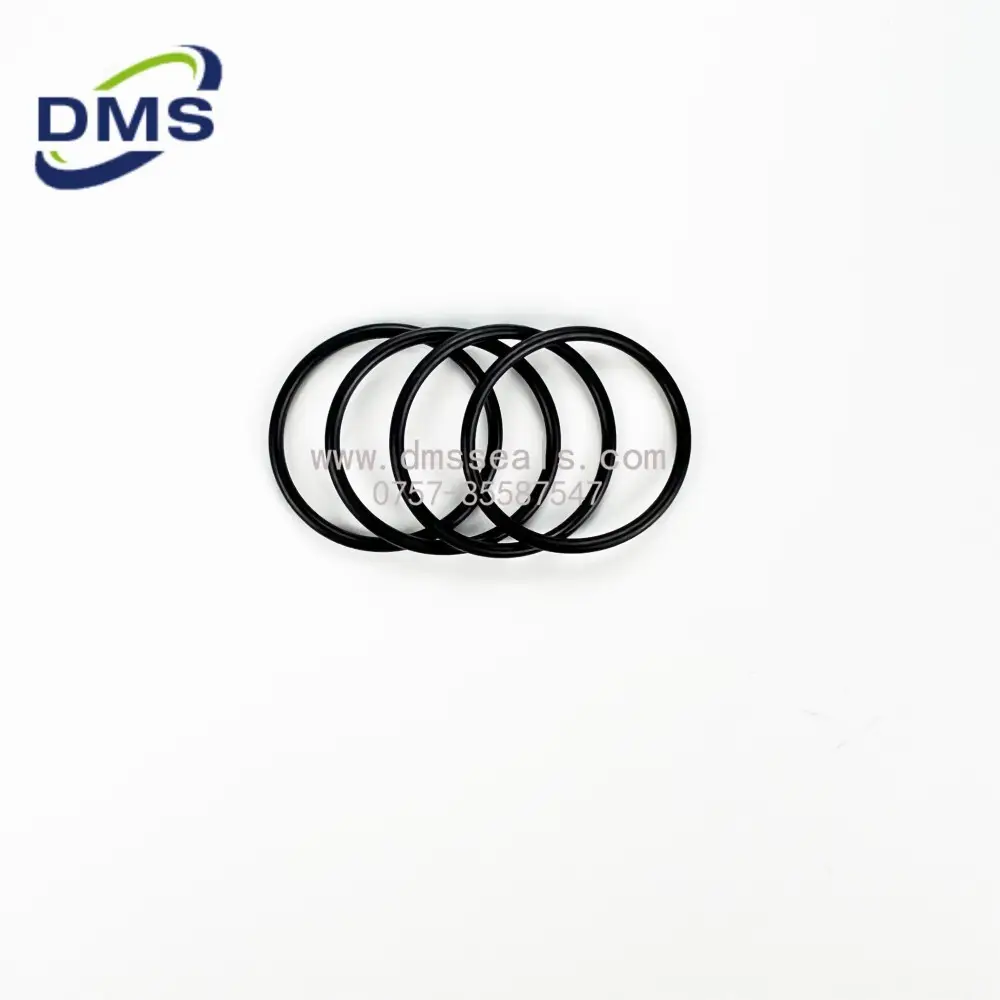

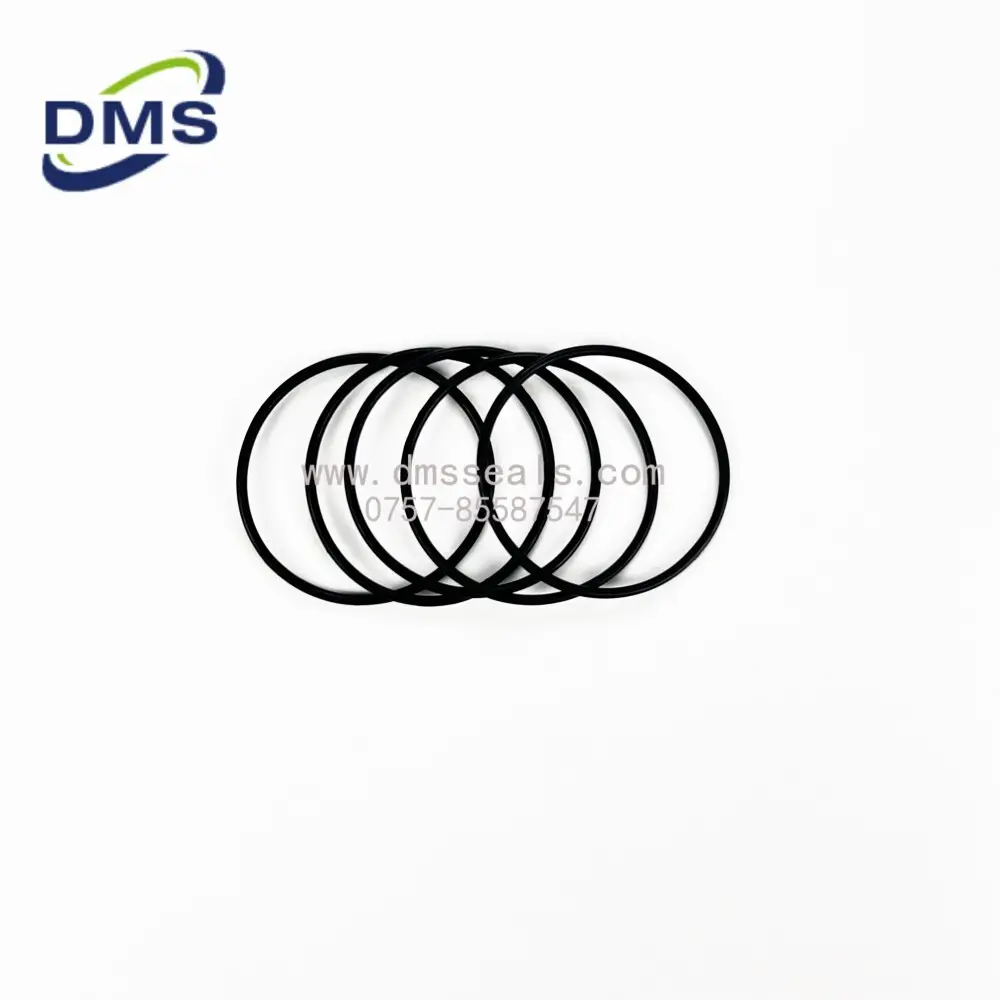

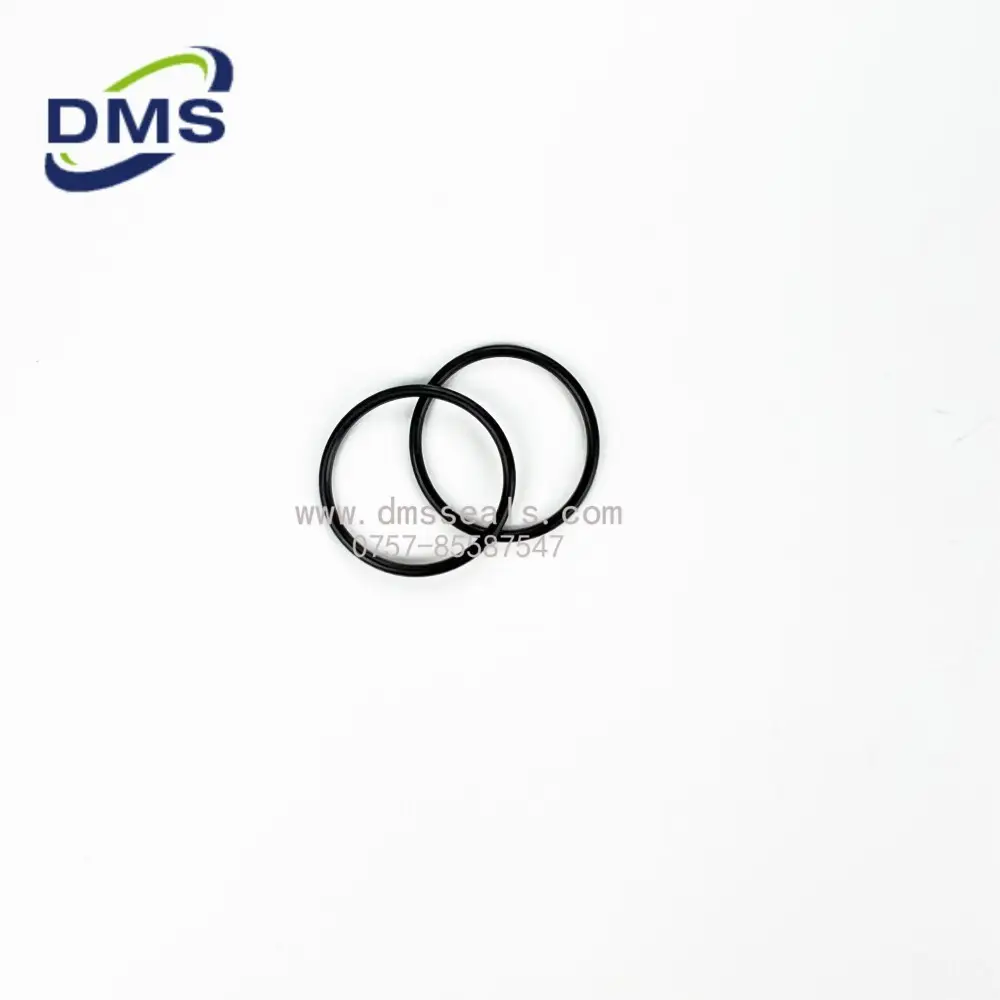

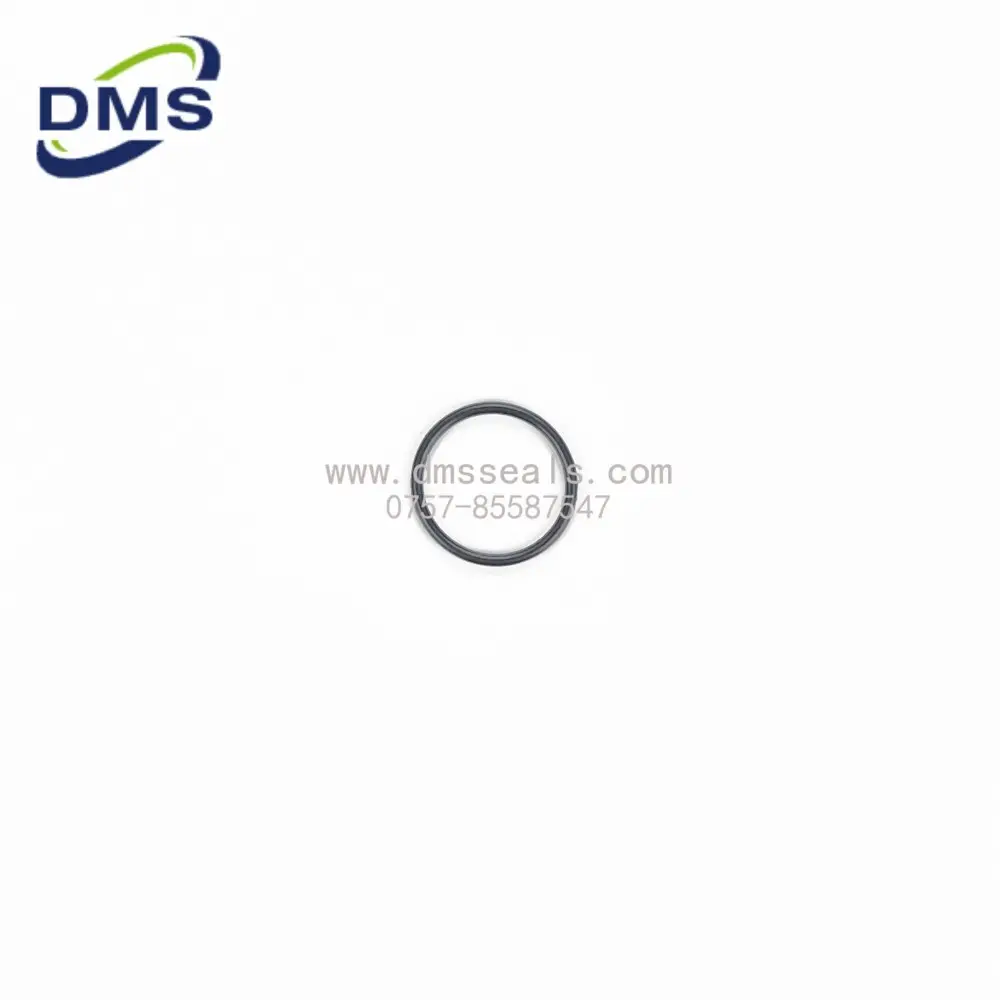

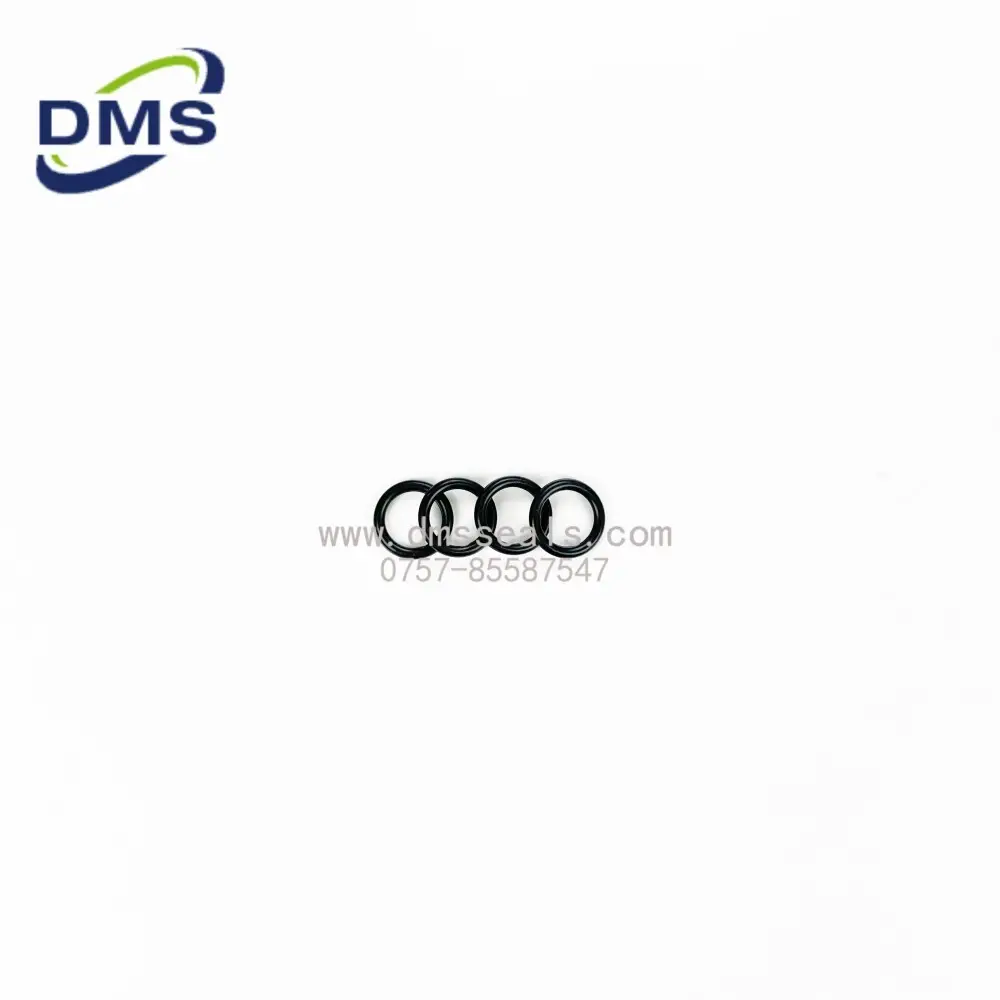

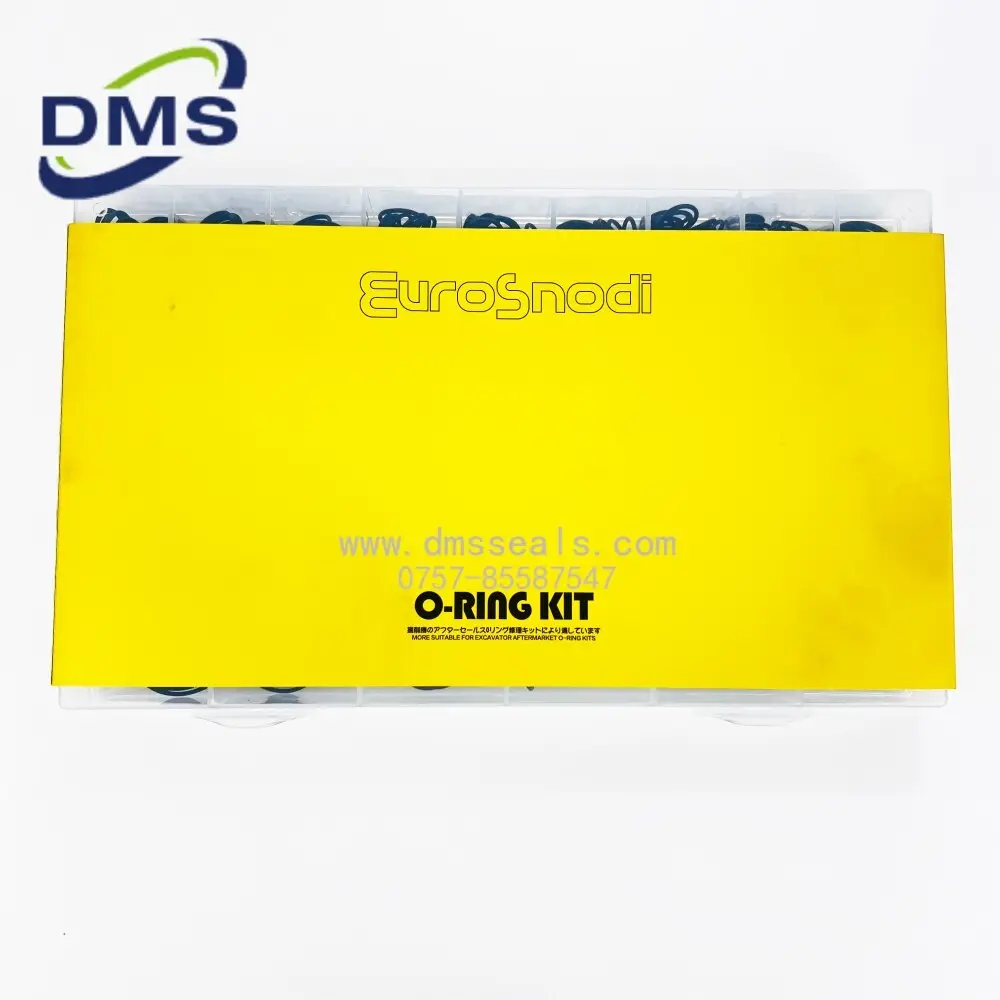

Detailed Photos


Company Features

· With strong developing and manufacturing abilities of silicone o ring kit, Dms Seals Technology Co.,limited has won an honorable reputation in the domestic market.

· There is a sound and standardized quality management system in the DMS Seals factory. Our quality management system provides a strong organizational guarantee for silicone o ring kit quality management. The plant of DMS Seals has advanced machines and professional testing equipment.

· DMS Seals has been working hard to satisfy each customer since its establishment. Welcome to visit our factory!

Product Details

Want to know more about product information? We will provide you with detailed pictures and detailed content of silicone o ring kit in the following section for your reference.

Application of the Product

Dms Seals Technology's silicone o ring kit can be used in different industries to meet the needs of customers.

Dms Seals Technology always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.

Enterprise Advantages

Dms Seals Technology's production team is equipped with rich theoretical and practical know-how in the industry. This allows them to find out and improve the problems occurred during the production in time. All this guarantees the best quality of products.

We established a full set of specifications of the customer service system to provide customers with one-stop services, including details information giving and consultation, return and exchange of products. We solve various needs of customers, so as to improve customer's satisfaction and support for our company.

Dms Seals Technology's mission is to lead the industry to develop and promote society to progress. Customers are our priority and honesty and mutual benefits are what we always adhere to. We are dedicated to providing quality products and services for customers. We strive to be a leading and influential enterprise, so as to lead the industry to develop.

Through the development for years, Dms Seals Technology has become one of the enterprises with large production and sales volume and high brand awareness in the industry.

Dms Seals Technology's products are sold well in China and are exported to North America, Eastern Europe, and Southeast Asia.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
