DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

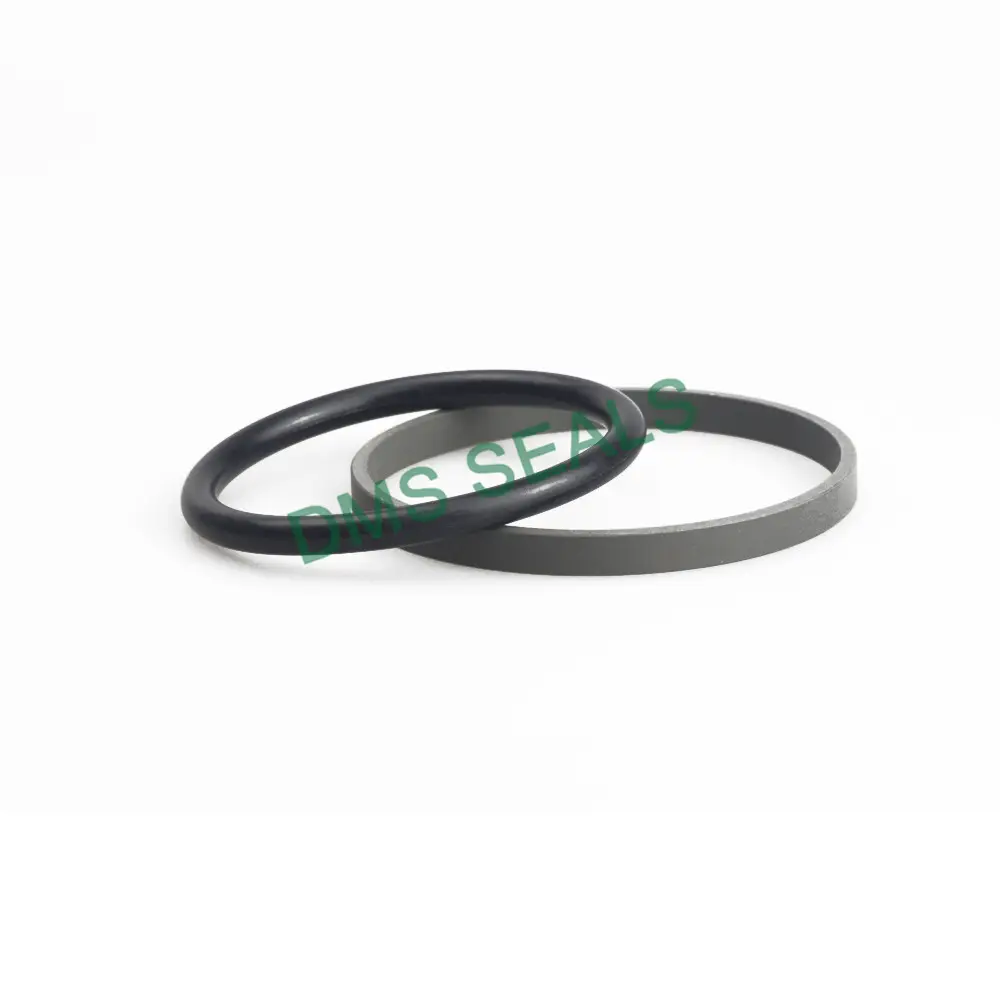

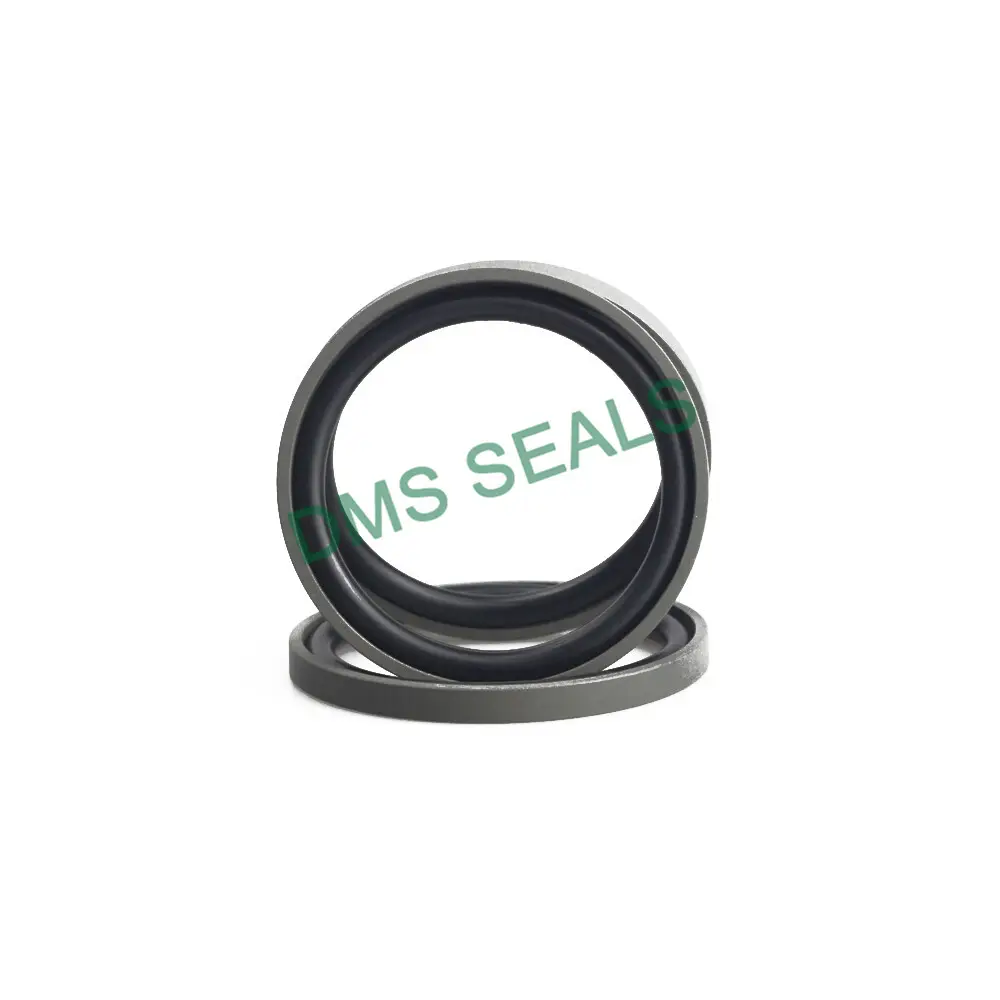

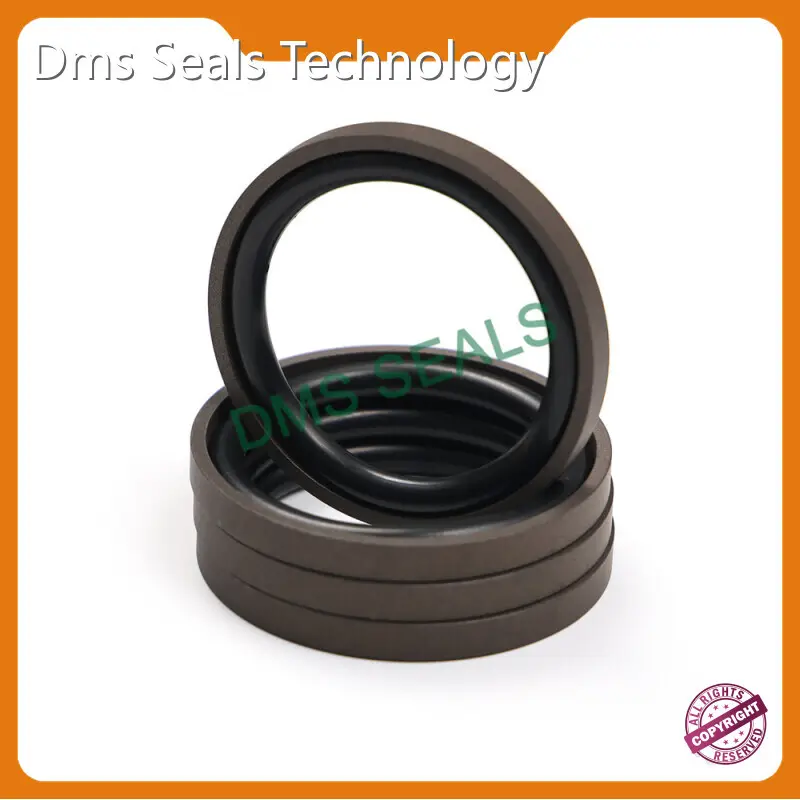

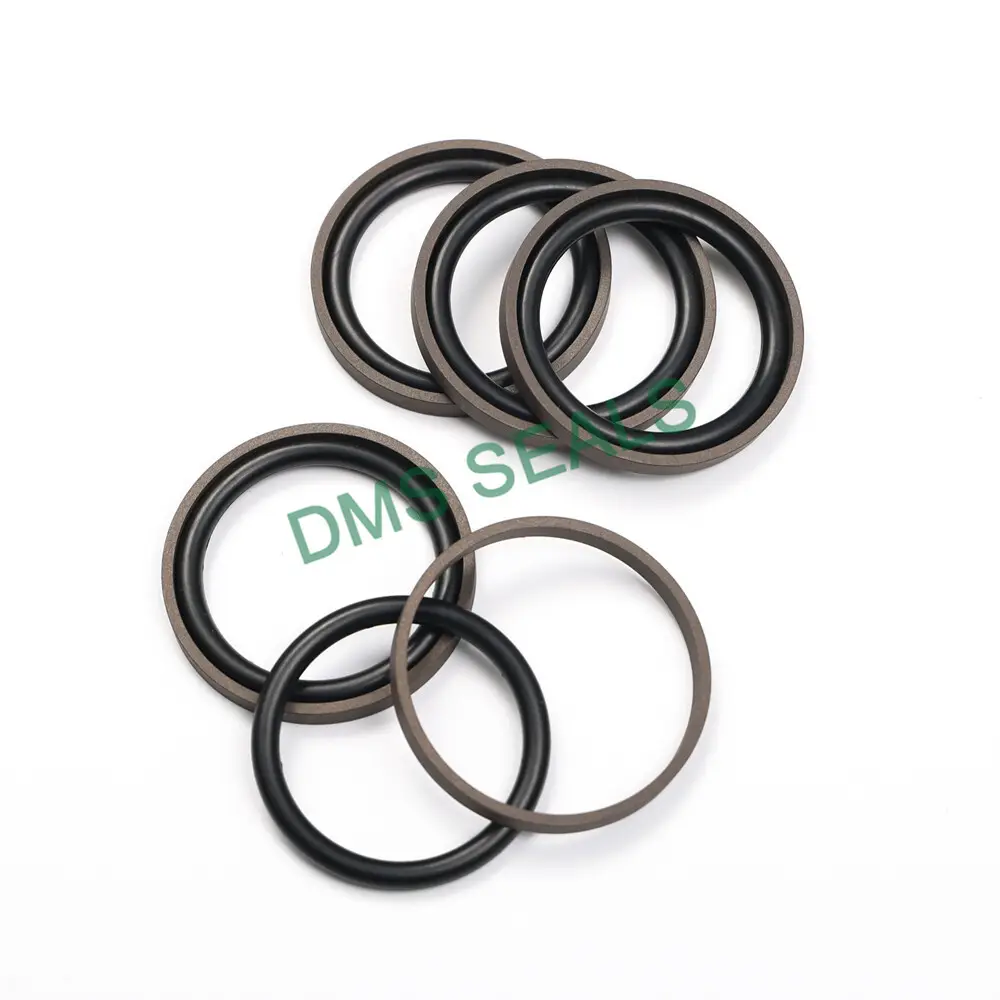

Hydraulic Cylinder Piston Seals Top Brand 0-35MPa
1. Installation Recommendation
2. Application and properties
Standard bidirectional seal, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.
3. Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | hydraulic oil, flame retardant liquid, water and others. |
| NO. | SIZE | NO. | SIZE |
| 1 | DPO20*14*3.2 | 32 | DPO135*121*6.5 |
| 2 | DPO25*19*3.2 | 33 | DPO140*126*6.5 |
| 3 | DPO30*21.5*4 | 34 | DPO150*136*6.5 |
| 4 | DPO31.5*23*4 | 35 | DPO160*146*6.5 |
| 5 | DPO32*23.5*4 | 36 | DPO170*150*10 |
| 6 | DPO35*26.5*4 | 37 | DPO180*160*10 |
| 7 | DPO35.5*27*4 | 38 | DPO190*170*10 |
| 8 | DPO40*31.5*4 | 39 | DPO200*180*10 |
| 9 | DPO45*36.5*4 | 40 | DPO180*160*10 |
| 10 | DPO50*41.5*4 | 41 | DPO190*170*10 |
| 11 | DPO53*44.5*4 | 42 | DPO200*180*10 |
| 12 | DPO55*46.5*4 | 43 | DPO210*190*10 |
| 13 | DPO56*47.5*4 | 44 | DPO220*200*10 |
| 14 | DPO60*51.5*4 | 45 | DPO224*204*10 |
| 15 | DPO63*49*6.5 | 46 | DPO230*210*10 |
| 16 | DPO65*51*6.5 | 47 | DPO240*220*10 |
| 17 | DPO70*56*6.5 | 48 | DPO250*230*10 |
| 18 | DPO71*57*6.5 | 49 | DPO260*240*10 |
| 19 | DPO75*61*6.5 | 50 | DPO270*250*10 |
| 20 | DPO80*66*6.5 | 51 | DPO280*260*10 |
| 21 | DPO85*71*6.5 | 52 | DPO290*270*10 |
| 22 | DPO90*76*6.5 | 53 | DPO300*280*10 |
| 23 | DPO95*81*6.5 | 54 | DPO310*290*10 |
| 24 | DPO100*86*6.5 | 55 | DPO320*300*10 |
| 25 | DPO105*91*6.5 | 56 | DPO340*320*10 |
| 26 | DPO110*96*6.5 | 57 | DPO350*330*10 |
| 27 | DPO112*98*6.5 | 58 | DPO360*340*10 |
| 28 | DPO115*101*6.5 | 59 | DPO375*355*10 |
| 29 | DPO120*106*6.5 | 60 | DPO380*360*10 |
| 30 | DPO125*111*6.5 | 61 | DPO400*380*10 |
| 31 | DPO130*116*6.5 |
Company Advantages
· All specifications of our hydraulic cylinder piston seals are available.
· DMS Seals also adopts eco-friendly materials to guarantee the zero pollution of hydraulic cylinder piston seals.
· hydraulic cylinder piston seals is to the taste of overseas markets.
Company Features
· Dms Seals Technology Co.,limited has been engaged in the production of hydraulic cylinder piston seals since its inception.
· We have a professional production team who are supported by internal and external resources. Frequent internal training is held to improve workers' skills, and cutting-edge manufacturing technologies are introduced to support their work.
· Our goal is to provide the first-class service, and our pursuit is to create the world's first hydraulic cylinder piston seals brand. Get price!
Application of the Product
Our hydraulic cylinder piston seals can be used in multiple scenarios.
We strive to provide customers with efficient, complete, and flexible solutions based on their needs.
