Good Selling Wiper Seal Design Company

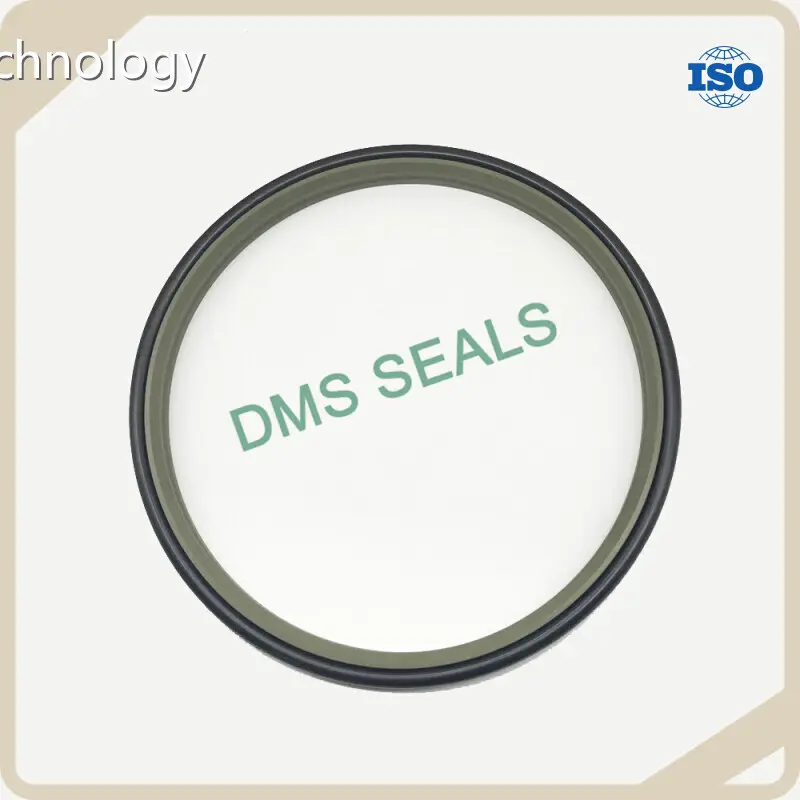

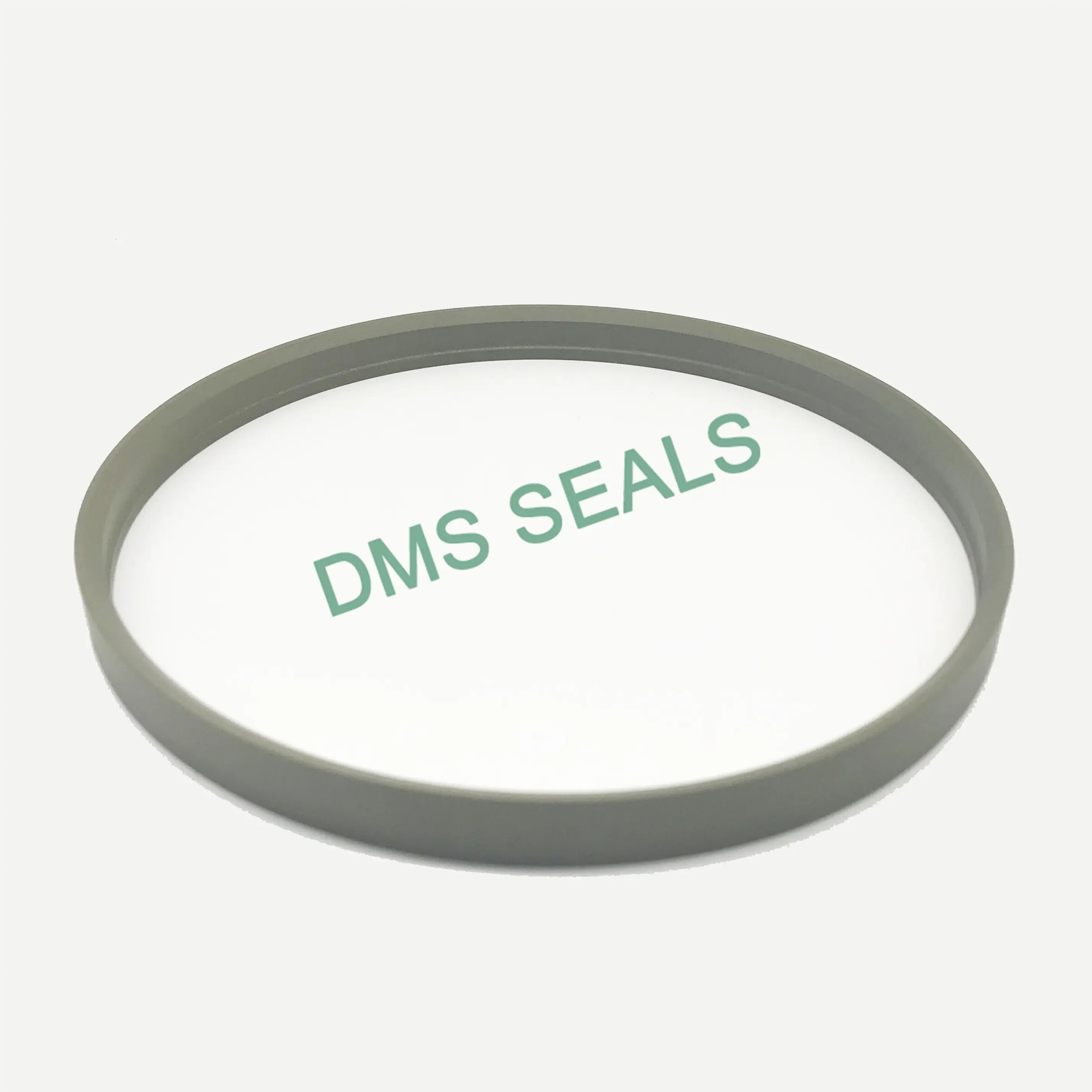

The hole is circled with a T-shaped lattice DPT1
Scope of application
Hydraulic system, reciprocating motion, under high-pressure, low-pressure and high-frequency working conditions, the heavy-duty two-way piston seal is very excellent. It is suitable for long and short stroke, and large piston clearance in a wide range of fluids and high temperature occasions. For example, it is used in injection molding machines, bulldozers, agricultural machinery, presses and other machine tools.
Standard materials
Sealing ring: filled with polytetrafluoroethylene PTFE
0-ring: NBR or FKM
characteristic
-Good dynamic and static sealing performance
-Large extrusion clearance is allowed, depending on the application, so the processing cost can be reduced
-Due to the large extrusion gap, it can also be safely used in dirty media
-Small friction, no crawling
-The groove is simple and can be used for integral piston
-Since many kinds of materials can be used, it has strong adaptability to working conditions
-Hydraulic oil suitable for new environmental protection and safety
| NO. | SIZE | NO. | SIZE | NO. | SIZE |
| 1 | DPT1-20*27.6*4.2 | 29 | DPT1-130*142*8.1 | 57 | DPT1-400*416*11.5 |
| 2 | DPT1-25*32.6*4.2 | 30 | DPT1-135*147*8.1 | 58 | DPT1-420*444*15.5 |
| 3 | DPT1-28*35.6*4.2 | 31 | DPT1-140*156*11.5 | 59 | DPT1-450*474*15.5 |
| 4 | DPT1-30*37.6*4.2 | 32 | DPT1-145*161*11.5 | 60 | DPT1-470*494*15.5 |
| 5 | DPT1-32*39.6*4.2 | 33 | DPT1-150*166*11.5 | 61 | DPT1-480*504*15.5 |
| 6 | DPT1-35*42.6*4.2 | 34 | DPT1-155*171*11.5 | 62 | DPT1-500*524*15.5 |
| 7 | DPT1-36*43.6*4.2 | 35 | DPT1-160*176*11.5 | 63 | DPT1-520*544*15.5 |
| 8 | DPT1-40*48.8*6.3 | 36 | DPT1-165*181*11.5 | 64 | DPT1-550*574*15.5 |
| 9 | DPT1-42*50.8*6.3 | 37 | DPT1-170*186*11.5 | 65 | DPT1-585*609*15.5 |
| 10 | DPT1-45*53.8*6.3 | 38 | DPT1-175*191*11.5 | 66 | DPT1-600*624*15.5 |
| 11 | DPT1-50*58.8*6.3 | 39 | DPT1-180*196*11.5 | 67 | DPT1-620*644*15.5 |
| 12 | DPT1-55*63.8*6.3 | 40 | DPT1-190*206*11.5 | 68 | DPT1-635*659*15.5 |
| 13 | DPT1-56*64.8*6.3 | 41 | DPT1-200*216*11.5 | 69 | DPT1-675*702*18 |
| 14 | DPT1-60*68.8*6.3 | 42 | DPT1-210*226*11.5 | 70 | DPT1-690*717*18 |
| 15 | DPT1-63*71.8*6.3 | 43 | DPT1-220*236*11.5 | 71 | DPT1-700*727*18 |
| 16 | DPT1-65*73.8*6.3 | 44 | DPT1-230*246*11.5 | 72 | DPT1-710*737*18 |
| 17 | DPT1-70*82.2*8.1 | 45 | DPT1-240*256*11.5 | 73 | DPT1-750*777*18 |
| 18 | DPT1-75*87.2*8.1 | 46 | DPT1-250*266*11.5 | 74 | DPT1-780*807*18 |
| 19 | DPT1-80*92.2*8.1 | 47 | DPT1-260*276*11.5 | 75 | DPT1-800*827*18 |
| 20 | DPT1-85*97.2*8.1 | 48 | DPT1-265*281*11.5 | 76 | DPT1-810*837*18 |
| 21 | DPT1-90*102*8.1 | 49 | DPT1-270*286*11.5 | 77 | DPT1-820*847*18 |
| 22 | DPT1-95*107*8.1 | 50 | DPT1-280*296*11.5 | 78 | DPT1-830*857*18 |
| 23 | DPT1-100*112*8.1 | 51 | DPT1-290*306*11.5 | 79 | DPT1-850*877*18 |
| 24 | DPT1-105*117*8.1 | 52 | DPT1-300*316*11.5 | 80 | DPT1-870*897*18 |
| 25 | DPT1-110*122*8.1 | 53 | DPT1-330*346*11.5 | 81 | DPT1-880*907*18 |
| 26 | DPT1-115*127*8.1 | 54 | DPT1-350*366*11.5 | 82 | DPT1-890*917*18 |
| 27 | DPT1-120*132*8.1 | 55 | DPT1-370*386*11.5 | 83 | DPT1-900*927*18 |
| 28 | DPT1-125*137*8.1 | 56 | DPT1-380*396*11.5 | 84 | DPT1-910*937*18 |
Company Advantages
· DMS Seals wiper seal design is high-quality and with an innovative design.
· A strict quality control system has been set up to ensure the quality of this product.
· By optimizing the quality of wiper seal design, DMS Seals has been more popular than before.
Company Features
· Dms Seals Technology Co.,limited has been active in manufacturing wiper seal design since founding and is one of the most veteran manufacturers in the industry.
· Dms Seals Technology Co.,limited has established long-term technical cooperation with several universities.
· Dms Seals Technology Co.,limited is dedicated to meeting your particular service needs. Please contact us!
Application of the Product
Our wiper seal design meets the needs of multiple industries and fields.
Dms Seals Technology insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
