· DMS Seals hydraulic cylinder piston seals is made of high-quality materials which are strictly selected by our experienced production team based on the application requirements and the industry quality standards.

· This product conforms to the international market strict quality standard.

· Dms Seals Technology Co.,limited has great scientific research strength and has accumulated rich experiences in marketing.

Product Description

1.Installation Recommendation

undefined

2.Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

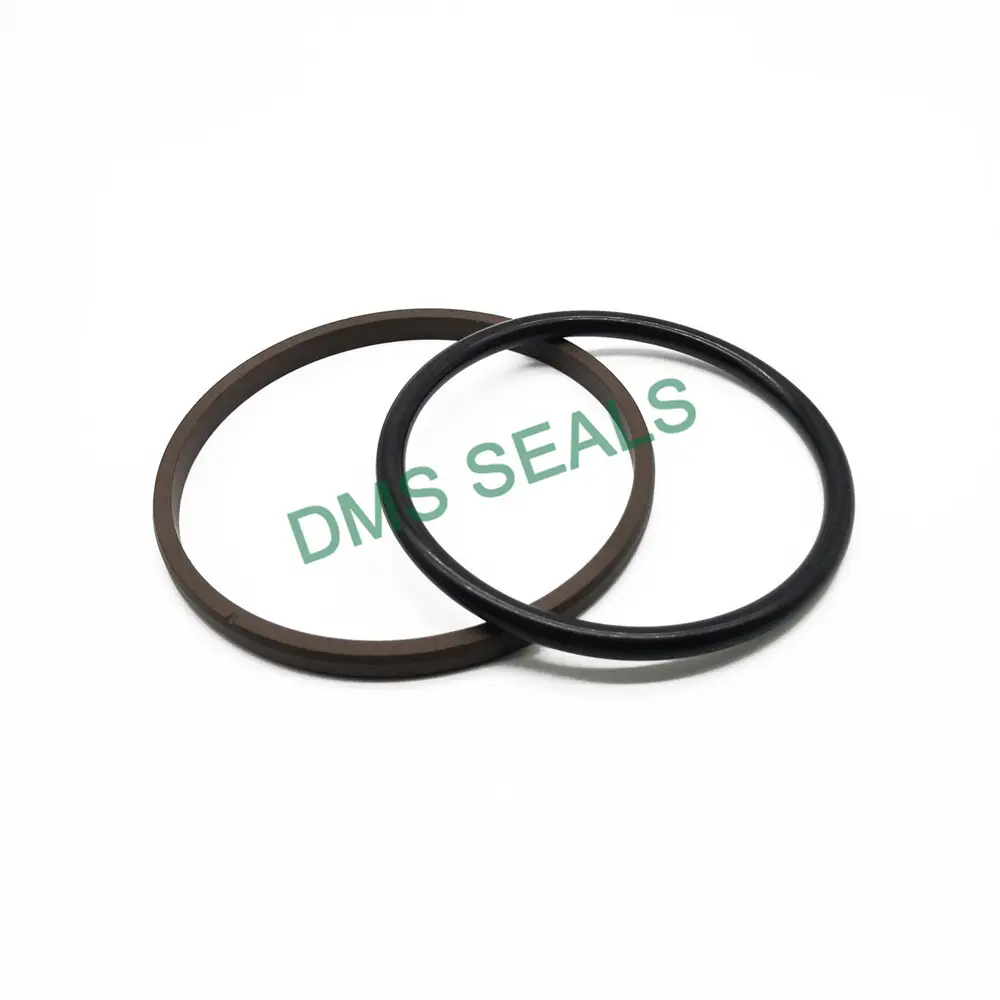

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3.Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

4.Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7

Company Features

· DMS Seals is a renown brand thanks to the top ranking hydraulic cylinder piston seals and excellent service.

· Since the establishment, we have set up a reasonable quality control system. This system allows us to timely give feedback on the quality of hydraulic cylinder piston seals, and prevent possible deficiencies and failures in advance.

· Under the strict code of conduct, our employees have ample experiences and ability to offer hydraulic cylinder piston seals. Get an offer!

Product Details

With the pursuit of excellence, Dms Seals Technology is committed to showing you unique craftsmanship in details.

Application of the Product

hydraulic cylinder piston seals can be applied to different industries, fields and scenarios.

With the concept of 'customers first, services first', Dms Seals Technology always focuses on customers. And we try our best to meet their needs, so as to provide the best solutions.

Enterprise Advantages

Senior experts are hired to be consultants for Dms Seals Technology, who are always ready to answer questions for customers. In addition, our company has high-tech equipment and strong scientific research strength. All these provide strong technical support for the development of high-tech products.

Through the application of online information service tools, our company implements clear management of after-sales service. With the improvement of the efficiency and quality of after-sales service, each customer could enjoy high-quality after-sales service.

Dms Seals Technology adheres to the business philosophy which is to share the joy and worry with customers and seek common development with society. We also promote our enterprise spirit of 'integrity, innovation and win-win'. Based on honesty, we emphasize development and innovation and hope to cooperate with like-minded people. Together we can achieve a win-win situation and create brilliance.

Built in Dms Seals Technology is a enterprise with years of experience.

Dms Seals Technology has a sales network covering the whole country. We strive to expand the international market depending on our advantages.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
