Buy Oil Seal Ring Highly Rated

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Product details of the oil seal ring

Product Introduction

The whole manufacture process for DMS Seals oil seal ring is finished by our experienced pprofessionals by using the latest advanced equipment. Our quality experts test this product for high performance. All these features make it have a broad market prospect in its field.

Product Description

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

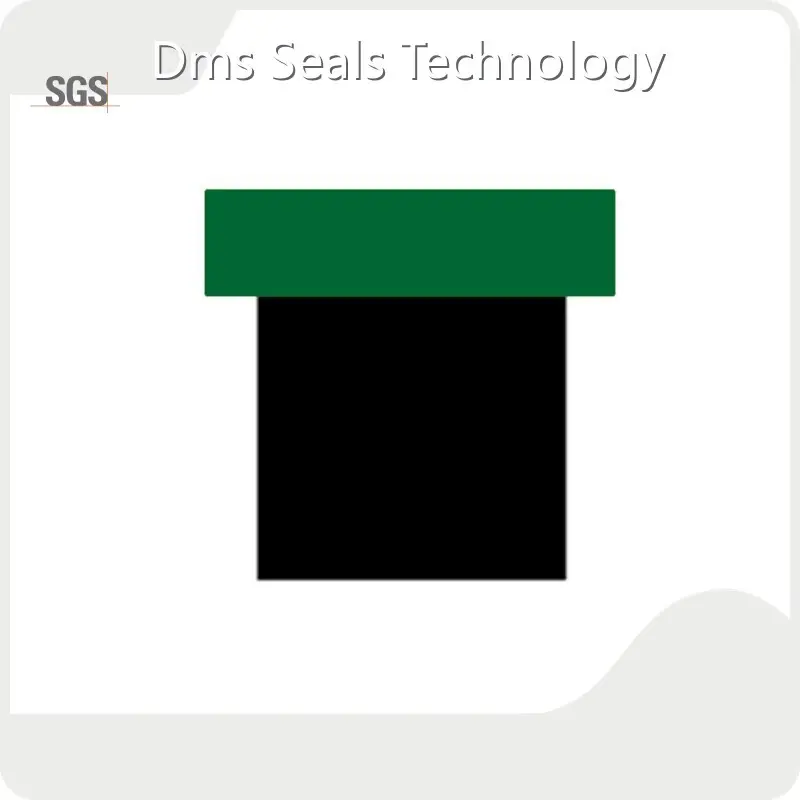

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
30 31.5 32	20.5 22 22.5	4.3 4.3 4.3	4.5 4.5 4.5	SPG3020.54.5 SPG31.5224.5 SPG3222.54.5
35 35.5 40	25.5 26 30	4.3 4.3 4.3	4.5 4.5 4.5	SPG3525.54.5 SPG35.5264.5 SPG40304.5
45 50 55	35 40 45	4.3 4.3 4.3	4.5 4.5 4.5	SPG45354.5 SPG50404.5 SPG55454.5
56 60 63	46 50 48	4.3 4.3 7.3	4.5 4.5 7.5	SPG56464.5 SPG60504.5 SPG63487.5
65 69 70	50 54 55	7.3 7.3 7.3	7.5 7.5 7.5	SPG65507.5 SPG69547.5 SPG70557.5
71 75 80	56 60 65	7.3 7.3 7.3	7.5 7.5 7.5	SPG71567.5 SPG75607.5 SPG80657.5
85 90 95	70 75 80	7.3 7.3 7.3	7.5 7.5 7.5	SPG85707.5 SPG90757.5 SPG95807.5
100 105 108	85 90 92	7.3 7.3 7.3	7.5 7.5 7.5	SPG100857.5 SPG105907.5 SPG108927.5
110 112 120	94 96 104	7.3 7.3 7.3	7.5 7.5 7.5	SPG110947.5 SPG112967.5 SPG1201047.5
125 130 135	109 114 119	7.3 7.3 7.3	7.5 7.5 7.5	SPG1251097.5 SPG1301147.5 SPG1351197.5
140 145 150	124 129 134	7.3 7.3 7.3	7.5 7.5 7.5	SPG1401247.5 SPG1451297.5 SPG1501347.5
155 160 170	139 144 148	7.3 7.3 10.8	7.5 7.5 11	SPG1551397.5 SPG1601447.5 SPG17014811

Installation Dimensions
