    Overview
    Quick Details
    Size:
    Any, Custom Size
    Place of Origin:
    Guangdong, China
    Brand Name:
    DMS
    Model Number:
    bonded dowty seal kit
    Standard or Nonstandard:
    Standard
    Product name:
    bonded dowty seal kit
    Item:
    leakproof bonded seal
    Application:
    self-centring bonded washers
    Material:
    Rubber/Stainless Steel
    Color:
    Blue
    Certificate:
    ISO9001
    Usage:
    Hydraulic sealing, Pneumatic sealing
    Medium:
    Minral oil, gas, fluid
    Supply Ability
    Supply Ability:
    30000 Piece/Pieces per Day
    Leakproof Bonded Sealing Washers Stainless Steel Bonded Dowty Seal Kit 7
    Product Description

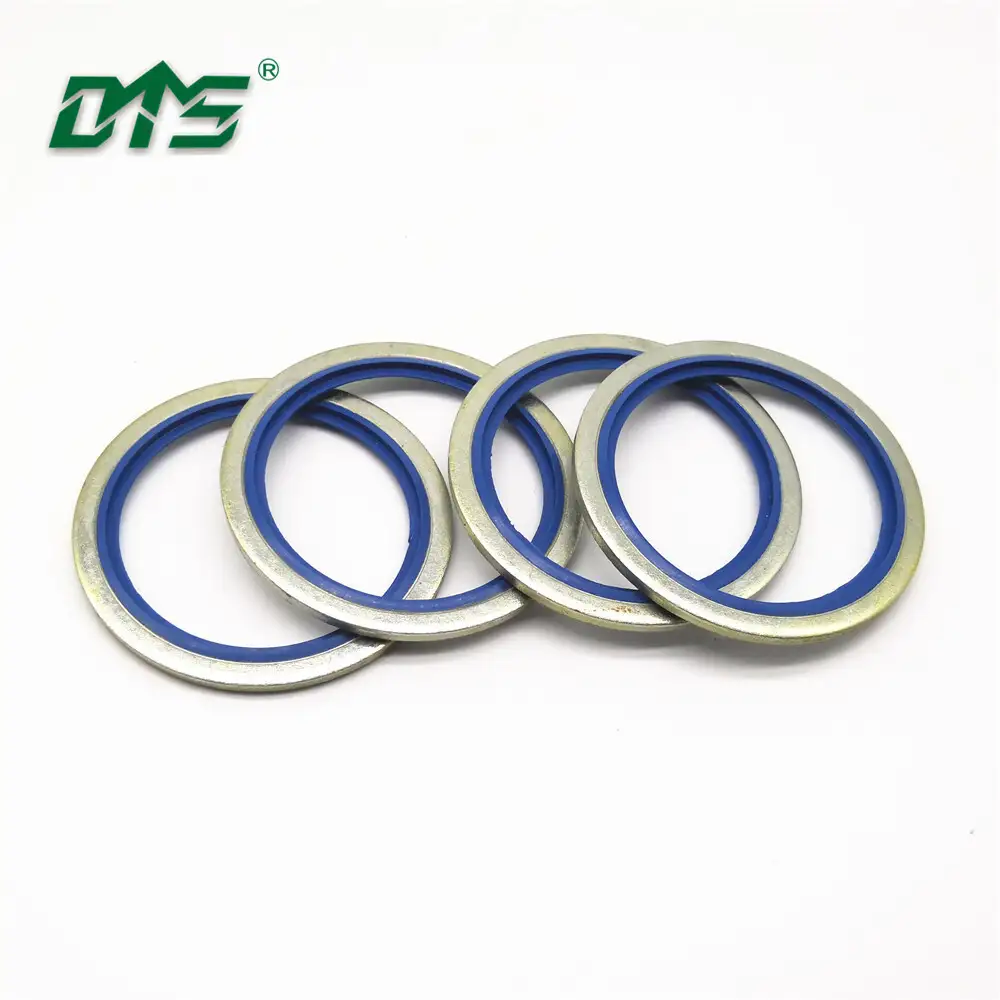

    Bonded Seals


    A bonded seal is a type of washer used to provide a seal around a screw or bolt.
    A bonded seal consists of an outer annular ring of a hard material, typically steel, and an inner annular ring of an

    elastomeric material that acts as a gasket.


    It is the compression of the elastomeric part between the faces of the parts on either side of the bonded seal that provides the sealing action.
    The elastomeric material, typically nitrile rubber, is bonded by heat and pressure to the outer ring, which holds it in place.
    This structure increases resistance to bursting, increasing the pressure rating of the seal.

    Because the bonded seal itself acts to retain the gasket material,there is no need for the parts to be sealed to be shaped to retain the gasket.

    This results in simplified machining and greater ease of use as compared to some other seals, such as O-rings.

    Some designs come with an additional flap of rubber on the internal diameter to locate the bonded seal at the centre of the hole,

    these are called self-centring bonded washers.



    Product NameLeakproof Bonded Sealing Washers Stainless Steel Bonded Dowty Seal Kit
    CategoryHydraulic seals, Pneumatic seals, customize seals

    Type

    Bonded seal

    Material

    Stainless Steel,Nitrile Rubber
    Propeties

    High temperature, low temperature, high pressure, low pressure,

    friction resistance

    ColorBlue
    SizesStandard and customize
    Temperature-45℃    +200℃
    MiedumHydraulic oil,  anti-fire fluid, water, gas etc
    Pressure0-100MPa
    Application

    excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks,

    cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery,

    logging equipment, aircraft, motor,electronics industries,etc.





    Product Display



    Leakproof Bonded Sealing Washers Stainless Steel Bonded Dowty Seal Kit 9



    Leakproof Bonded Sealing Washers Stainless Steel Bonded Dowty Seal Kit 11
