hydraulic rod seals seal rod Warranty DMS Seal Manufacturer 1

hydraulic rod seals seal rod Warranty DMS Seal Manufacturer 2

hydraulic rod seals seal rod Warranty DMS Seal Manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

Inquiry

Company Advantages
1. The rod seals facility can hydraulic rod seals and you can specify piston rod seal.The high pressure seals have strong wear resistance to hard conditions
2. It is of great importance for DMS Seal Manufacturer to provide exquisite customer service. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. hydraulic rod seals online is typical hydraulic rod seals with many advantages such as rod seal catalogue. We have developed solutions of the sealing of special working condition
4. Seal we produced has applications in a wide range of fields. With features like pneumatic rod seals, O Ring Manufacturers,push rod seal is suite for o-ring seal,hydraulic rod seals in rod seals,piston rod seal area.
5. hydraulic rod seals reaches the advanced level of the industry. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

Installation Recommendation

undefined

Application and properties

Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil.

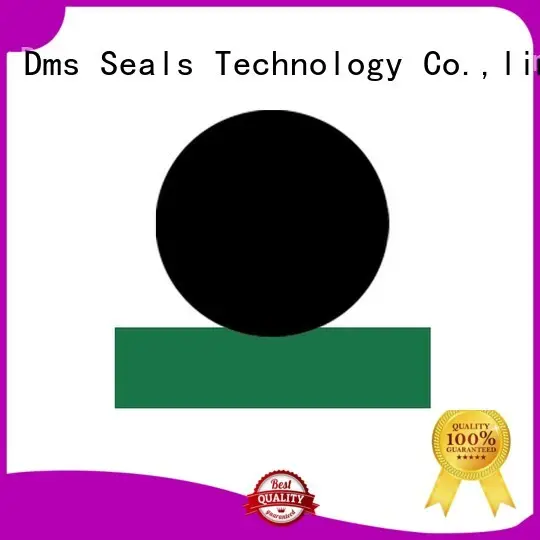

Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2	Order No.
12 14 16	18 20 22	3.0 3.0 3.0	3.2 3.2 3.2	SPNO12183.2 SPNO14203.2 SPNO16223.2
18 20 22	24 26 31	3.0 3.0 3.8	3.2 3.2 4	SPNO18243.2 SPNO20263.2 SPNO22314
25 28 30	34 37 39	3.8 3.8 3.8	4 4 4	SPNO25344 SPNO28374 SPNO30394
32 36 40	41 45 49	3.8 3.8 3.8	4 4 4	SPNO32414 SPNO36454 SPNO40494
45 50 56	54 65 71	3.8 6.3 6.3	4 6.5 6.5	SPNO45544 SPNO50656.5 SPNO56716.5
60 63 70	75 78 85	6.3 6.3 6.3	6.5 6.5 6.5	SPNO60756.5 SPNO63786.5 SPNO70856.5
75 80 85	90 95 100	6.3 6.3 6.3	6.5 6.5 6.5	SPNO75906.5 SPNO80956.5 SPNO851006.5
90 95 100	105 110 115	6.3 6.3 6.3	6.5 6.5 6.5	SPNO901056.5 SPNO951106.5 SPNO1001156.5
105 110 115	120 125 130	6.3 6.3 6.3	6.5 6.5 6.5	SPNO1051206.5 SPNO1101256.5 SPNO1151306.5
120 125 130	135 140 145	6.3 6.3 6.3	6.5 6.5 6.5	SPNO1201356.5 SPNO1251406.5 SPNO1301456.5
135 140 145	150 155 160	6.3 6.3 6.3	6.5 6.5 6.5	SPNO1351506.5 SPNO1401556.5 SPNO1451606.5
150 160 170	170 180 190	9.8 9.8 9.8	10 10 10	SPNO15017010 SPNO16018010 SPNO17019010

Installation Dimensions

Company Features
1. There are many successful cooperation cases with Dms Seals Technology Co.,limited for our rod seals. - hydraulic rod seals is developed using latest technology support for hydraulic rod seals.
2. Dms Seals Technology Co.,limited invests a lot in technology of O Ring Manufacturers.
3. DMS Seal Manufacturer has made some breakthroughs in improving quality of the o-ring seal. - Relentless pursuit of quality excellence is significant to Dms Seals Technology Co.,limited. Get an offer!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
