1. DMS Seal Manufacturer hydraulic rod seals is designed and manufactured with the aid of the best quality raw materials and advanced technology in line with set industry norms. We have developed solutions of the sealing of special working condition
2. DMS Seals provides professional design and production of high-grade o-ring seals. Even in extreme condition, our rod seals,piston rod seal can work normally.
3. One of the most popular functions of hydraulic rod seals is reliability. DMS Seals takes the lead in grasping the development trend of the industry
4. With product quality as the center, Dms Seals Technology Co.,limited insists on the spirit of independent innovation. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

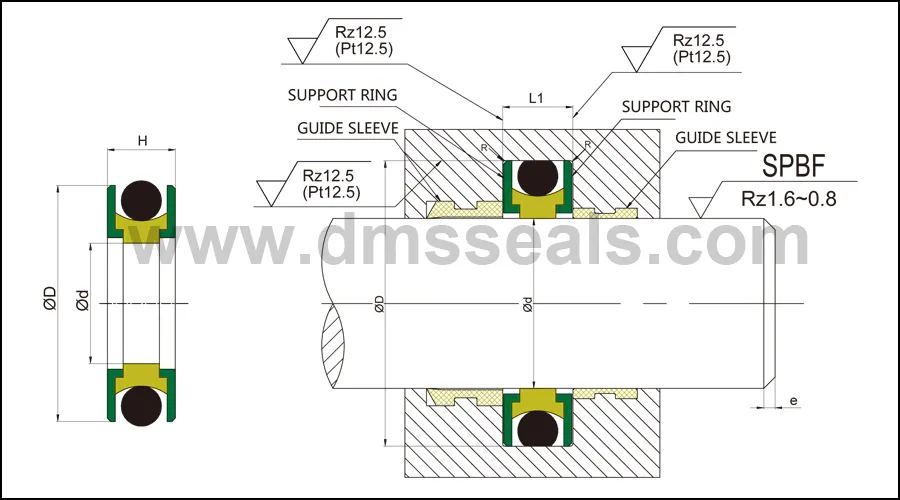

1. Installation Recommendation
2. Installation Sizes
d e8 | D H9 | L D10 | H |
22-39 | d+7.2 | 4.0 | 3.5 |
40-79 | d+10.0 | 5.0 | 4.5 |
80-100 | d+13.8 | 7.5 | 7.0 |
d+20.0 | 10.0 | 9.5 | |
＞250-600 | d+30.0 | 15.0 | 14.5 |
＞600 | d+40.0 | 20.0 | 19.5 |
3. Application and properties
L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
L-Ring: POM / PA
5. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 45MPa | -30℃ +100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
D1 H9 | H | L D10 | e | Order No. | |
22 25 28 | 29.2 32.2 35.2 | 3.5 3.5 3.5 | 4 4 4 | 6 6 6 | RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5 |
30 32 35 | 37.2 39.2 42.2 | 3.5 3.5 3.5 | 4 4 4 | 6 6 6 | RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5 |
36 40 42 | 43.2 50 52 | 3.5 4.5 4.5 | 4 5 5 | 6 6 6 | RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5 |
45 50 55 | 55 60 65 | 4.5 4.5 4.5 | 5 5 5 | 6 6 6 | RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5 |
56 60 63 | 66 70 73 | 4.5 4.5 4.5 | 5 5 7.5 | 6 7 7 | RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5 |
65 70 72 | 75 80 82 | 4.5 4.5 4.5 | 7.5 7.5 7.5 | 7 7 7 | RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5 |
75 80 85 | 85 93.8 98.8 | 4.5 7.0 7.0 | 7.5 7.5 7.5 | 7 7 7 | RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0 |
90 95 100 | 103.8 108.8 113.8 | 7.0 7.0 7.0 | 7.5 7.5 7.5 | 7 7 7 | RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0 |
105 110 115 | 125 130 135 | 9.5 9.5 9.5 | 10 10 10 | 10 10 10 | RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5 |
120 125 130 | 140 145 150 | 9.5 9.5 9.5 | 10 10 10 | 10 10 10 | RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5 |
