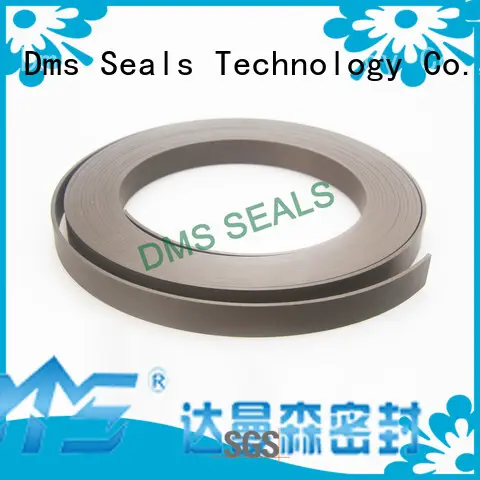

GST - Hydraulic Bronze PTFE Tape Guide Strip Wear Ring

Company Advantages
1. DMS Seal Manufacturer rubber seal design is manufactured employing the optimum quality raw material as per set industry guidelines.
2. The offered DMS Seal Manufacturer rubber seal design is designed by a team of experienced professionals.
3. Innovative design team: DMS Seal Manufacturer rubber seal design is elaborately designed by an innovative design team. This team has learned the industry know-how and are equipped with the latest design ideas in the industry.
4. DMS Seal Manufacturer rubber seal design is manufactured with high precision in order to meet the set industry standards.
5. The product features the desired safety. Its potential mechanical risks, electrical hazards, and sharp edges are kept under tight control.
6. The product features the desired abrasion resistance. Its violent mechanical actions will not cause any loss of materials from the surface.
7. This product is hypoallergenic. All allergens that caused by dyes, chemicals or other additives can be eliminated in the process of the production.
8. The product can run uninterruptedly. Its excellent mechanical properties enable it to work stably and reliably all the time without malfunction.
9. It adds uniqueness to my project and it helps improve the appearance of buildings. - One of our buyers say.
10. The product plays an essential role in any bathroom space – both in how it makes the space more usable, as well as how it adds to the overall design aesthetic of the space.
11. Because this product can be used over and over, fewer batteries need to be manufactured (and transported) than with single-use varieties.
12. People can be set assured that this product will be not subject to problems like color fading and paint flaking off.

1. Installation Recommendation

2. Application and properties

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.
