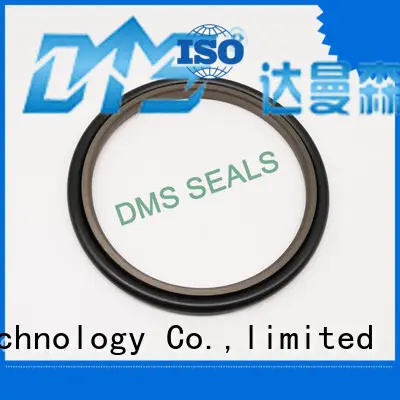

DMS Seal Manufacturer piston hydraulic seals catalogue ring for piston and hydraulic cylinder 1

DMS Seal Manufacturer piston hydraulic seals catalogue ring for piston and hydraulic cylinder 2

DMS Seal Manufacturer piston hydraulic seals catalogue ring for piston and hydraulic cylinder

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Application Scope

Oil Seal Manufacturer developed and produced by our company can be widely used in various industries and professional fields.Dms Seals always gives priority to customers and services. With a great focus on customers, we strive to meet their needs and provide optimal solutions.

Company Advantages
1. glyd ring has a vast range of prospects with its unique hydraulic seals catalogue .
2. Durability: It has been given a relatively long lifespan and can retain somewhat functionality and aesthetics after long-time application.
3. A dedicated QC department is established in Dms Seals Technology Co.,limited to optimize the quality control system and inspection method.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d_N h9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D₁ H9	L₁+0.2	R₁	10MPa	20MPa	40MPa	d₂
3-7.9	8-18.9	-	d_N+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	d_N+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	d_N+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	d_N+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	d_N+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	d_N+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	d_N+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	d_N+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation.

Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

d_N h9

D₁ H9

L₁+0.2

8.9

9.9

10.9

2.2

GSJ4*8.9*2.2

GSJ5*9.9*2.2

GSJ6*10.9*2.2

5.28*1.78

6.75*1.78

7.65*1.78

12.9

15.3

14.9

2.2

3.2

2.2

GSJ8*12.9*2.2

GSJ8*15.3*3.2

GSJ10*14.9*2.2

9.25*1.78

10.77*2.62

11.8*1.78

17.3

16.9

19.3

3.2

2.2

3.2

GSJ10*17.3*3.2

GSJ12*16.9*2.2

GSJ12*19.3*3.2

12.37*2.62

13.3*1.78

13.94*2.62

18.9

21.3

19.9

2.2

3.2

2.2

GSJ14*18.9*2.2

GSJ14*21.3*3.2

GSJ15*19.9*2.2

15.6*1.78

15.54*2.62

16.67*1.78

22.3

20.9

23.3

3.2

2.2

3.2

GSJ15*22.3*3.2

GSJ16*20.9*2.2

GSJ16*23.3*3.2

17.12*2.62

17.17*1.78

18.72*2.62

22.9

25.3

29.7

2.2

3.2

4.2

GSJ18*22.9*2.2

GSJ18*25.3*3.2

GSJ19*29.7*4.2

18.77*1.78

20.29*2.62

23.39*3.53

27.3

30.7

29.3

3.2

4.2

3.2

GSJ20*27.3*3.2

GSJ20*30.7*4.2

GSJ22*29.3*3.2

21.89*2.62

23.39*3.53

23.47*2.62
