Company Advantages1. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management. DMS Seal Manufacturer factory has established itself as a leading manufacturer, trader, and manufacture of pneumatic piston seals in the market.
2. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. DMS Seal Manufacturer is full of vitality, energy and warrior spirit.
3. piston seals is designed to combine the best features of hydraulic piston seals sizes and hydraulic piston seals. To reduce costs with high-efficiency work is the DMS's purpose

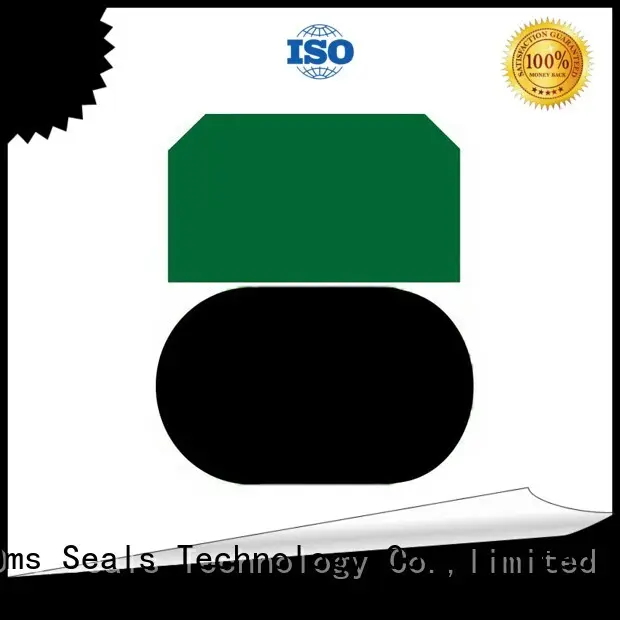

Installation Recommendation
![undefined undefined]()
Application and properties
Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-35MPa | -30℃+200℃ | 1.5 m/s | hydraulic oil, flame retardant liquid, water and others. |
Installation Dimensions
Bore Dia. | Groove Width | Order No. | O-Ring Dimension |
D H9 | L1+0.2 |
60
65
70 | 6
6
6 | SPGO60*6
SPGO65*6
SPGO70*6 | 43.5*5.3
48*5.3
53*5.3 |
75
80
85 | 6
6
6 | SPGO75*6
SPGO80*6
SPGO85*6 | 58*5.3
63*5.3
67*5.3 |
90
95
100 | 6
6
6 | SPGO90*6
SPGO95*6
SPGO100*6 | 73*5.3
77.5*5.3
83*5.3 |
105
110
115 | 6
6
6 | SPGO105*6
SPGO110*6
SPGO115*6 | 87.5*5.3
92.5*5.3
97.5*5.3 |
120
125
130 | 6
6
6 | SPGO120*6
SPGO125*6
SPGO130*6 | 103*5.3
108*5.3
112*5.3 |
135
140
145 | 6
6
6 | SPGO135*6
SPGO140*6
SPGO145*6 | 118*5.3
123.19*5.3
128*5.3 |
150
155
160 | 6
6
6 | SPGO150*6
SPGO155*6
SPGO160*6 | 132.72*5.3
138*5.3
142.24*5.3 |
165
170
175 | 6
6
6 | SPGO165*6
SPGO170*6
SPGO175*6 | 148.5*5.3
151.77*5.3
158*5.3 |
180
185
190 | 6
6
6 | SPGO180*6
SPGO185*6
SPGO190*6 | 164.47*5.3
167*5.3
173*5.3 |
195
80
85 | 6
7.9
7.9 | SPGO195*6
SPGO80*7.9
SPGO85*7.9 | 177.17*5.3
56*7
61*7 |
90
95
100 | 7.9
7.9
7.9 | SPGO90*7.9
SPGO95*7.9
SPGO100*7.9 | 66*7
71*7
77.5*7 |
105
110
115 | 7.9
7.9
7.9 | SPGO105*7.9
SPGO110*7.9
SPGO115*7.9 | 82*7
86*7
92*7 |
