Top transmission piston seal with ptfe nbr and pom for light and medium hydraulic systems 1

Top transmission piston seal with ptfe nbr and pom for light and medium hydraulic systems 2

Top transmission piston seal with ptfe nbr and pom for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. The specifications of DMS Seals are ensured by finest techniques. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. This product is widely used in a variety of applications. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
3. The product is notable for its outstanding electromagnetic compatibility. It has been professionally treated to reduce interference or is designed with immunity to disturbance of other devices. The high pressure seals have strong wear resistance to hard conditions
4. It has desired safety. Its live components, conductors or other internal parts are well housed with insulating materials, to prevent accidental contact. DMS o-ring seal has advanced machines and equipment for its production
5. The product runs stably under a wide voltage range. It has passed the power-on test which requires stability under low, high, and nominal voltage range. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals

Installation Recommendation

undefined

Application and properties

Suitable for light and medium hydraulic systems, also be used for pneumatic equipment. Low friction, no crawling phenomenon.

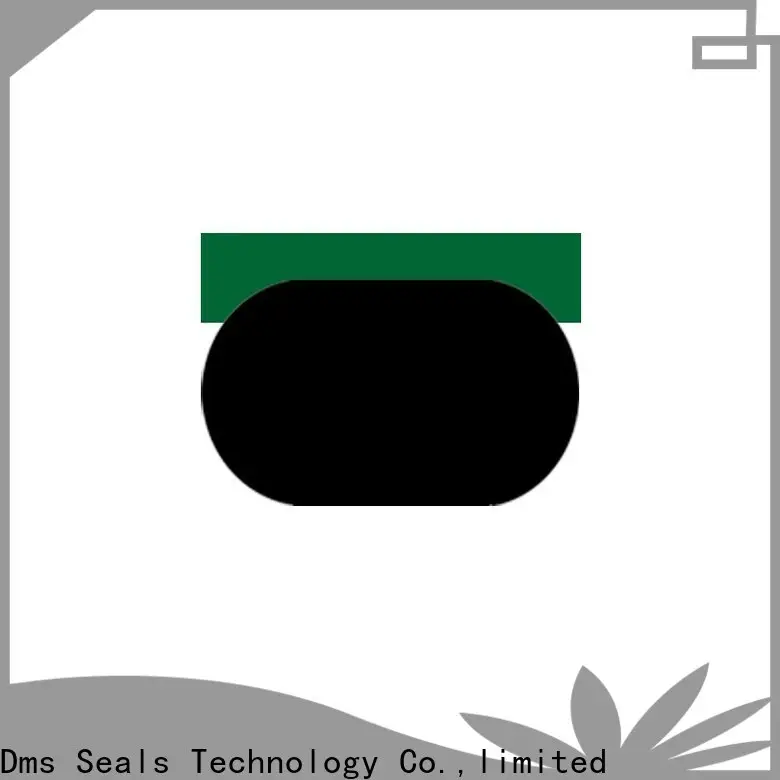

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
28 28.4 30	22 22.4 24	4.4 4.4 4.4	4.7 4.7 4.7	SPGC28224.7 SPGC28.422.44.7 SPGC30244.7
31 31.5 34	25 25.5 28	4.4 4.4 4.4	4.7 4.7 4.7	SPGC31254.7 SPGC31.525.54.7 SPGC34284.7
35 35.5 36	29 29.5 30	4.4 4.4 4.4	4.7 4.7 4.7	SPGC35294.7 SPGC35.529.54.7 SPGC36304.7
37 37.5 38	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPGC37314.7 SPGC37.531.54.7 SPGC38324.7
40 41 41.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPGC40344.7 SPGC41354.7 SPGC41.535.54.7
42 44 45	36 38 39	4.4 4.4 4.4	4.7 4.7 4.7	SPGC42364.7 SPGC44384.7 SPGC45394.7
46 47 48	40 41 42	4.4 4.4 4.4	4.7 4.7 4.7	SPGC46404.7 SPGC47414.7 SPGC48424.7
50 51 52	44 45 46	4.4 4.4 4.4	4.7 4.7 4.7	SPGC50444.7 SPGC51454.7 SPGC52464.7
54 55 56	48 49 50	4.4 4.4 4.4	4.7 4.7 4.7	SPGC54484.7 SPGC55494.7 SPGC56504.7
58 60 62	48 50 52	4.4 4.4 4.4	4.7 4.7 4.7	SPGC58484.7 SPGC60504.7 SPGC62524.7
63 65 66	53 55 56	4.4 4.4 4.4	4.7 4.7 4.7	SPGC63534.7 SPGC65554.7 SPGC66564.7
68 70 72	58 60 62	7.0 7.0 7.0	7.5 7.5 7.5	SPGC68587.5 SPGC70607.5 SPGC72627.5

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited is constantly innovating and taking the lead in transmission piston seal market.
2. We own a considerable market share in overseas markets. They are mainly South Africa, America, England, and Germany. We have invested more staff in exploring more target markets all round the world.
3. DMS Seals is always famous for its exquisite service. Ask!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
