Application Scope
Dms Seals's
O-ring Seal is commonly used in the following industries.Dms Seals is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.
Company Advantages1. In order to capture the market opportunities,Dms Seals Technology Co.,limited adopt the most cutting edge technique in China.
2. Dms Seals Technology Co.,limited insists on using first-class raw material.
3. What calls for customers' attention is that our hydraulic cylinder piston rings is produced by skillful manufacture.
4. Advantages such as have helped hydraulic cylinder piston rings win the market.
5. Our hydraulic cylinder piston rings enjoys special features including .
6. Compared with other products, the product has obvious superiority such as long service life, stable performance, and good usability.
7. The product is tested to be excellent in the quality, performance, durability, etc.
8. DMS Seals conducts strict quality management system and the quality of this product is assured.
9. Our all-round service will definitely satisfy every customer from Dms Seals Technology Co.,limited.
10. We have the ability to supply hydraulic cylinder piston rings offered by our professional producers with the help of partners.
11. Dms Seals Technology Co.,limited has high output and reasonable product structure for hydraulic cylinder piston rings .
12. Without , hydraulic cylinder piston rings can't be such a great success.
13. Dms Seals Technology Co.,limited has been devoted to the construction of the technological innovation system.
1. Installation Recommendation

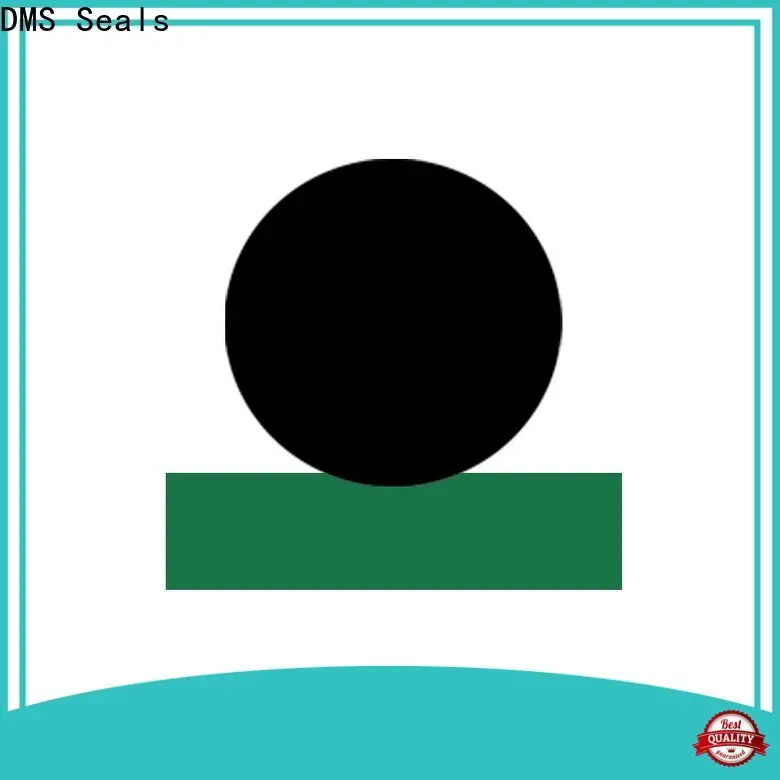

![DMS Seal Manufacturer-Hydraulic Rod Seal | Piston Rod Seal | O-ring Seal]()
2. Application and properties
Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ + 200℃ | 1.5m/s | general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil. |
5. Installation Dimensions
Nominal Size of Packing, and Housing dimensions | Order No. |
d | D | H | L +0.2 |
12 14 16 | 18 20 22 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2 |
18 20 22 | 24 26 31 | 3.0 3.0 3.8 | 3.2 3.2 4 | SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4 |
25 28 30 | 34 37 39 | 3.8 3.8 3.8 | 4 4 4 | SPNO25*34*4 SPNO28*37*4 SPNO30*39*4 |
32 36 40 | 41 45 49 | 3.8 3.8 3.8 | 4 4 4 | SPNO32*41*4 SPNO36*45*4 SPNO40*49*4 |
45 50 56 | 54 65 71 | 3.8 6.3 6.3 | 4 6.5 6.5 | SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5 |
60 63 70 | 75 78 85 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5 |
75 80 85 | 90 95 100 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5 |
90 95 100 | 105 110 115 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5 |
105 110 115 | 120 125 130 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5 |
120 125 130 | 135 140 145 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5 |
135 140 145 | 150 155 160 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5 |
150 160 170 | 170 180 190 | 9.8 9.8 9.8 | 10 10 10 | SPNO150*170*10 SPNO160*180*10 SPNO170*190*10 |
Company Features1. Dms Seals Technology Co.,limited is a leading multinational manufacturer of hydraulic cylinder piston rings . As a big polyurethane hydraulic seals manufacture in China, Dms Seals Technology Co.,limited has always kept its leading position in the industry since its establishment. Dms Seals Technology Co.,limited stands out among all Chinese hydraulic seals ppt manufacturer. Dms Seals Technology Co.,limited is a world's leading provider of patent buffer seal hydraulic whose business is the R&D and sale of . Dms Seals Technology Co.,limited is always offering high-qualified hydraulic seal design products in the field.
2. Dms Seals Technology Co.,limited pays high attention to the introduction of high-level production equipment to guarantee quality of hydraulic cylinder piston rings . Dms Seals Technology Co.,limited has a production base, specializing in the production of spareage piston seals . Thanks to the strict R&D process, our pneumatic cylinder
rod seal is unique in its great performance. Dms Seals Technology Co.,limited has long been focusing on innovation and R&D of metric hydraulic seals . Quality represents for DMS Seals and we will surely pay great attention to it.
3. Our enterprise mission is established to ensure the service excellence and u seal design quality. Contact us! With the effort of many years in metric wiper seals manufacturing industry, Dms Seals Technology Co.,limited is worthy of your trust. Contact us! DMS Seals's desire is to win the global market to be an hydraulic cylinder seals manufacturer. Contact us! DMS Seals is also developing more new projects to expand more markets. Contact us! We will supply high quality wholesale hydraulic seals with excellent service. Contact us!
Top hydraulic cylinder piston rings supply for pressure work and sliding high speed occasions
hydraulic cylinder piston rings
Type:
![Top hydraulic cylinder piston rings supply for pressure work and sliding high speed occasions 5]()
