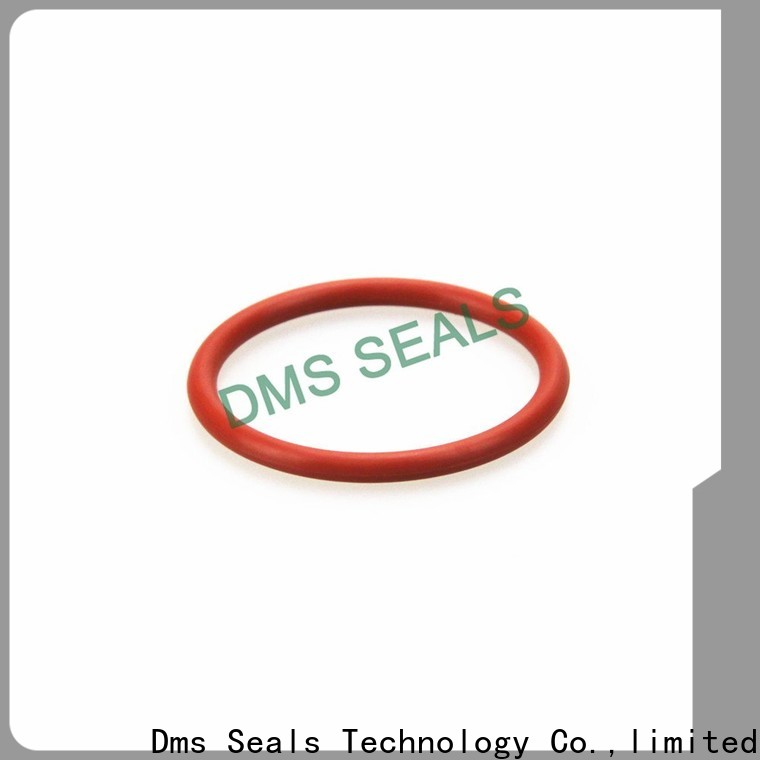

rubber o ring seal groove dimensions for business for sale

Company Advantages
1. The biggest advantage for o ring seal groove dimensions is its unique design with features of .
2. DMS Seal Manufacturer is made of cost-efficient certified materials and exclusively crafted according to requirements.
3. o ring seal groove dimensions is designed and manufactured according to .
4. This product has the expected air permeability, comfortable to sleep on. The proper weight, thickness and porosity of the fabric contribute to this property.
5. If the product is cared for properly, its fabric is anti-pill. It can be washed as many times as possible and will not have fabric balls.
6. The product features a reliable operation. It is mainly controlled through computers. Unless maintenance is needed, it can go on without any break.
7. This product has a high yield. Once the design basic parameters and standard specifications are entered into the product, it can perform high-volume daily tasks from start to finish and provide flexible scalability.
8. Dms Seals Technology Co.,limited practices top-notch customer service.
9. Dms Seals Technology Co.,limited purchased advanced machines for production and employee skilled workers to produce.
10. Dms Seals Technology Co.,limited has the capability to fulfill large custom OEM orders as per customer requests.
11. Dms Seals Technology Co.,limited provides the best o ring seal groove dimensions on the market.

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

Silicone

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. As a great o ring seal groove dimensions supplier, DMS Seal Manufacturer owns capabilities to develop its own finest seals gaskets o rings . With a great advantage of large capacity, Dms Seals Technology Co.,limited is expanding its production scale to meet higher demand for metric wiper seal . As time changes, DMS Seal Manufacturer has been always doing its utmost to provide trending seal ring suppliers . Dms Seals Technology Co.,limited provides world class buy metric o rings and services. DMS Seal Manufacturer specializes in producing magnificent 60mm rubber o ring .
2. Since the day of its establishment, Dms Seals Technology Co.,limited highly values the quality of o ring seal material . Dms Seals Technology Co.,limited is endeavoring to gain professional proficiency in silicone o ring sizes field. Our factory is one of the top manufacturers of fuel rated o rings . Quality Assurance and Quality Control programs are incorporated into every stage of our manufacture and production for cheap o rings . Superb processing level for 005 o ring is acquired by Dms Seals Technology Co.,limited.
3. Quality and service come first for our company. They drive the pace of our work. We will always expect more from ourselves than our customers do. Our sustainability agenda follows the triple bottom line approach to ensure social, environmental, and financial sustainability for the business. We believe a good and healthy environment is the foundation of our development and success. Hence, we attach great importance to sustainable development. We have made progress in our production in reducing wastes. We drive the implementation of environmental protection policy. Take our internal footprint as an example, we have deployed appropriate clean technologies and have engaged all employees in continuous green improvements at the workplace. We are committed to promoting our sustainable development. We constantly enhance the environmental management system to meet the requirements of our environmental awareness.
