Rubber NBR 70 80 90 Oring seal use for hydraulic cylinder and pump

Rubber NBR 70 80 90 Oring seal use for hydraulic cylinder and pump

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Size:
Any sizes, AS568, JIS B
Place of Origin:
Guangdong, China
Brand Name:
DMS
Model Number:
ORING
Product name:
ORING
Application:
Cylinder, Pump, Valve
Color:
Black
Feature:
Durable
Hardness:
70-90 Shore A
Type:
Round O-RING
Certificate:
ISO9001:2015
Temperature:
-30~+100℃
Medium:
Oil and others.
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Day
Product Description
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
product-DMS Seal Manufacturer-img
ITEM
RUBBER NBR ORING SEAL
MATERIAL
NBR, FKM, SILICONE, EPDM, HNBR, FFKM
Color
BLACK
TEMPERATURE
-30~100℃
MEDIUM
HYDRAULIC OIL
STANDARD
AS568, JIS B
HARDNESS
70, 80, 90 shore A

Installation Recommendation
product-DMS Seal Manufacturer-img

Performance parameter
Static Seal
Dynamic Seal
Working Pressure
No support ring, up to 20MPa;
With the support ring, up to 40MPa;
With special support ring, up to 200MPa.
No support ring, up to 5MPa;
With the support ring, higher pressure.
Movement Speed
Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature
NBR: -30℃ - 100℃; FKM: -20℃ - 200℃.

Wire Diameter Tolerance
product-Rubber NBR 70 80 90 Oring seal use for hydraulic cylinder and pump-DMS Seal Manufacturer-img
Wire diameter of O-Ring (mm)
Tolerance (±mm)
0-1.8
0.08
1.80-2.65
0.09
2.65-3.55
0.10
3.55-5.30
0.13
5.30-7.00
0.15
7.00-8.00
0.18
8.00-10.00
0.21
10.00-12.00
0.25
Detailed Images

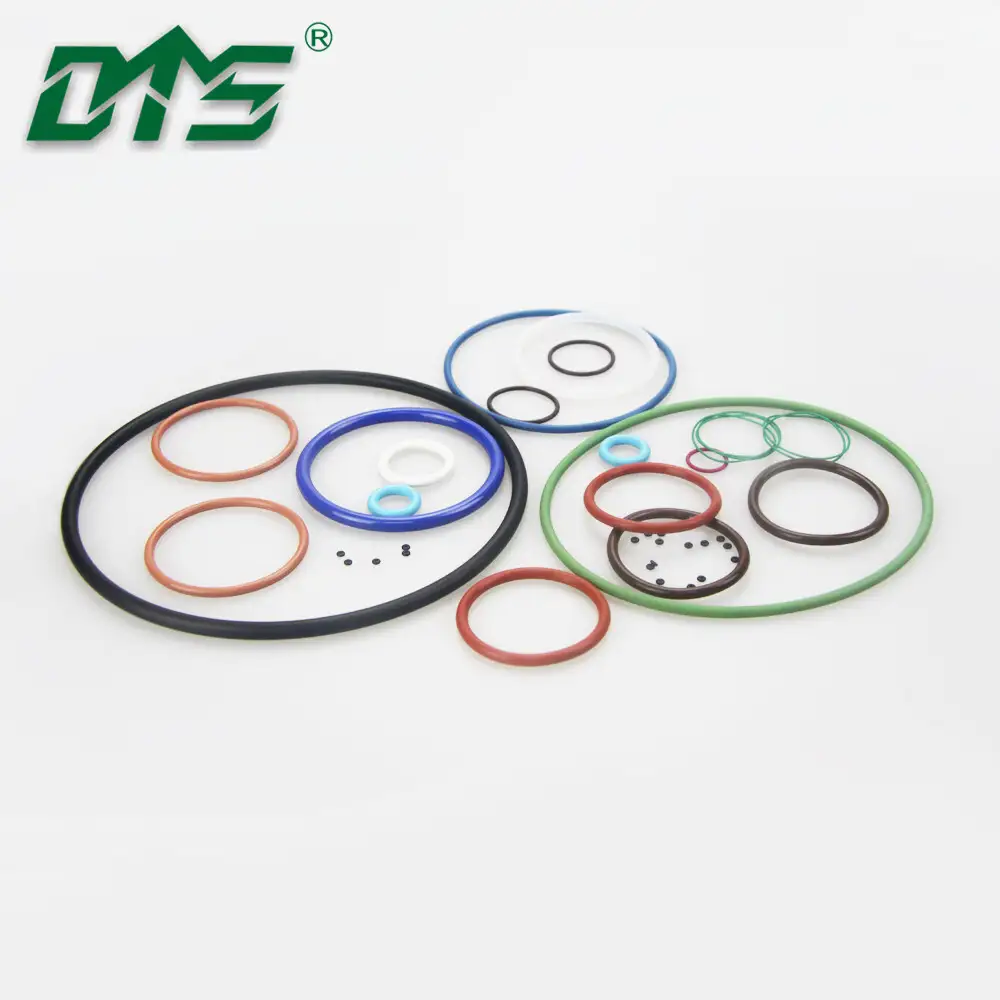

DMS SEALS only provide high quality O-Rings with different materials and different hardness. The material include NBR, FKM, silicone, EPDM, FFKM, PTFE and so on.
product-DMS Seal Manufacturer-img-1
product-DMS Seal Manufacturer-img-1
Related Products
Packing&Shipping
product-Rubber NBR 70 80 90 Oring seal use for hydraulic cylinder and pump-DMS Seal Manufacturer-img-1
product-DMS Seal Manufacturer-img-2
Company Introduction
DMS SEALS was established in 2008. We are a technology enterprise which specialized in the production of seals, the development of seals material and the solution of the sealing of special working condition. We own 120 staffs which including 70 middle and senior technicians. Our factory covers more than 10000 square meters which including 8000 square meters for the workshop. Our production equipment and test equipment are on leading level in the same industry. We are the one of the biggest enterprise who specialized in manufacturing and developing seals in China. We have long time cooperation and communication with many universities and research institutions at home and board. We own a number of invention patents and leading production process. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. We have already passed the certification of ISO 9001 and IATF 16949. We have the mature technical reserve for the solution of ultra-high temperature, ultra-high pressure, ultra-low temperature, highly corrosive and other special working condition. Our products are widely used in construction machinery, automobile, automation equipment, petroleum, water conservancy, chemical engineering, aviation and other area. We insist the purpose of “First Class Design, First Class Manufacture, First Class Service” and strive to become the excellent provider of the sealing system solutions. We will go on to create the value for the customers and grow with clients together.
product-DMS Seal Manufacturer-img-2
product-Rubber NBR 70 80 90 Oring seal use for hydraulic cylinder and pump-DMS Seal Manufacturer-img-2
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
