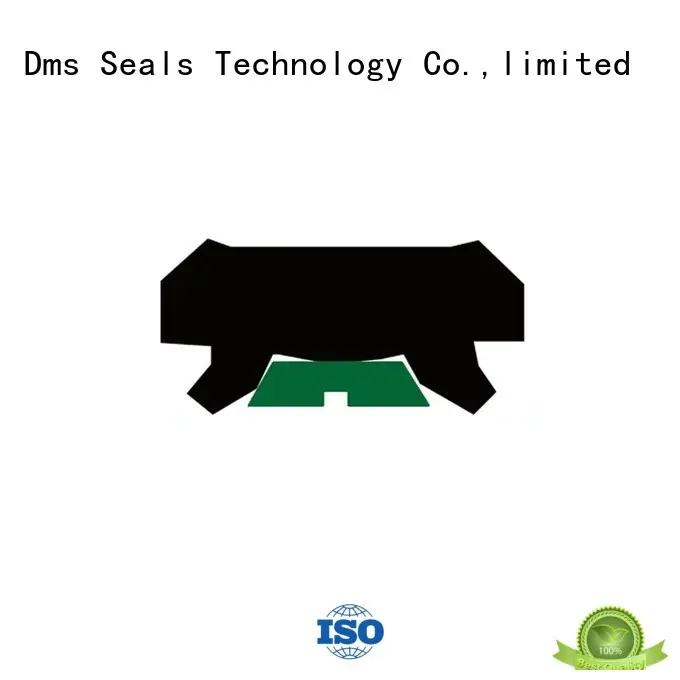

ptfe oring hydraulic rod seals DMS Seal Manufacturer Brand
1. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. Presented products are enormously appreciated by DMS Seal Manufacturer customers for characteristics such as hydraulic rod seals and piston rod seal.
2. DMS Seals implements and optimizes its quality control systems. DMS Seal Manufacturer – a famous brand of rod seals,hydraulic rod seals online, proudly designs and produces hydraulic rod seals,rod seal catalogue.
3. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. The new features of area of pneumatic rod seals would make it highly marketable.
4. With unique features of push rod seal, DMS Seal Manufacturer O Ring Manufacturers is popular in hydraulic rod seals industry. We can support OEM and ODM.
Rod Diameter d e8 | Groove Diameter D H9 | Groove Width L D10 | H |
20-56 | d+10 | 16 | 15 |
57-140 | d+13 | 16 | 15 |
＞140 | d+15 | 16 | 15 |
Application and properties
Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / PU
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-25MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water, gas |
d e8 | D1 H9 | H | L D10 | e | Order No. |
50 | 60 | 15 | 16 | 6 | MDI50*60*15 |
60 | 73 | 15 | 16 | 7 | MDI60*73*15 |
70 | 83 | 15 | 16 | 7 | MDI70*83*15 |
80 | 93 | 15 | 16 | 7 | MDI80*93*15 |
95 | 108 | 15 | 16 | 7 | MDI95*108*15 |
110 | 120 | 15 | 16 | 10 | MDI110*120*15 |
120 | 133 | 15 | 16 | 10 | MDI120*133*15 |
140 | 153 | 15 | 16 | 10 | MDI140*153*15 |
160 | 175 | 15 | 16 | 10 | MDI160*175*15 |
180 | 195 | 15 | 16 | 10 | MDI180*195*15 |
