Shaft Oil Seals 15m/s - - DMS Seals

Company Advantages

· The production procedure of DMS Seals shaft oil seals meets the industry production requirements.

· The product meets stringent quality and regulatory requirements.

· Dms Seals Technology Co.,limited will pays high attention to complaints of our shaft oil seals and take immediate measures to improve.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

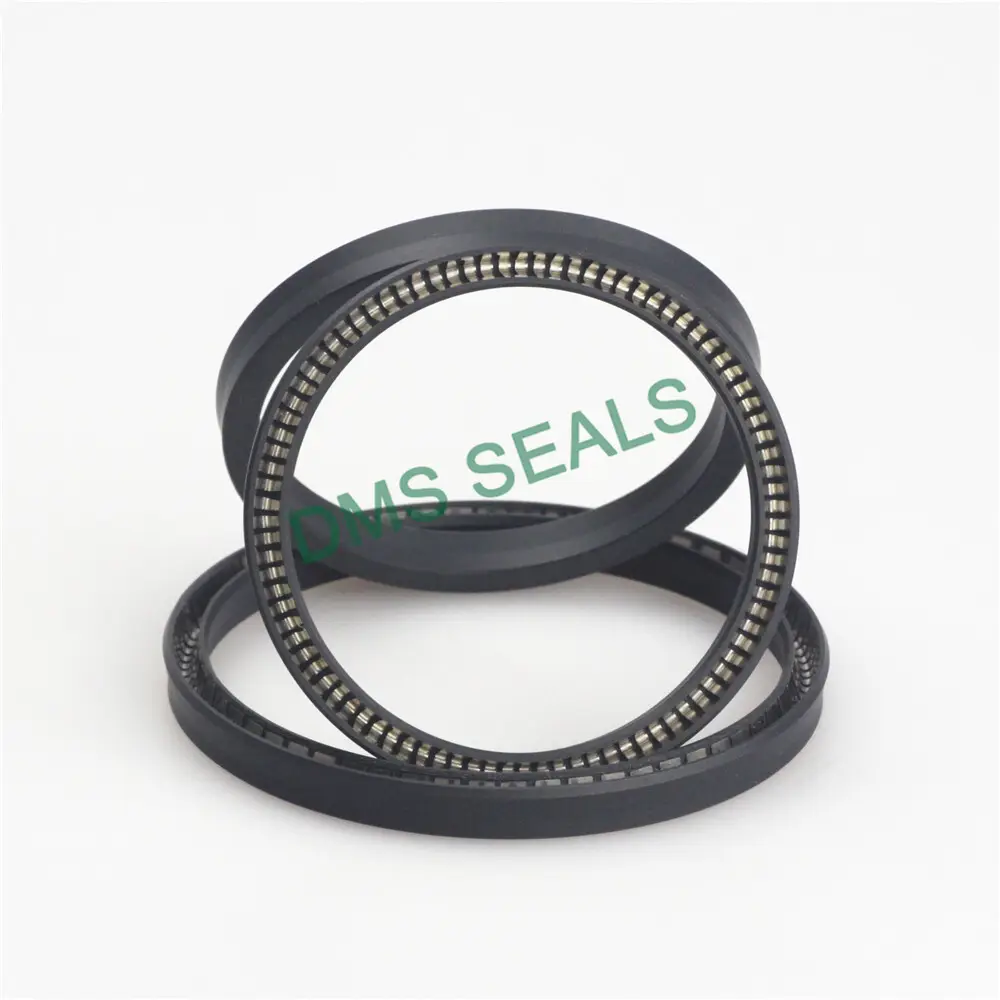

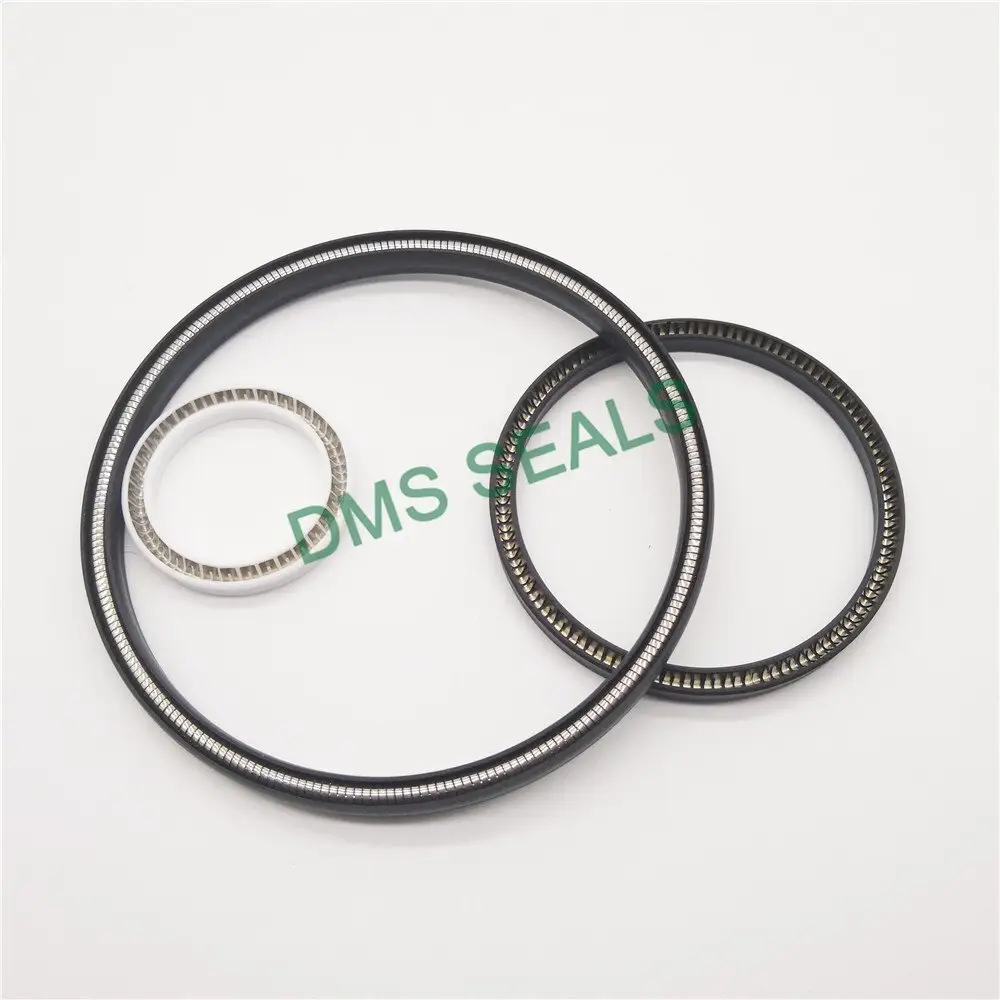

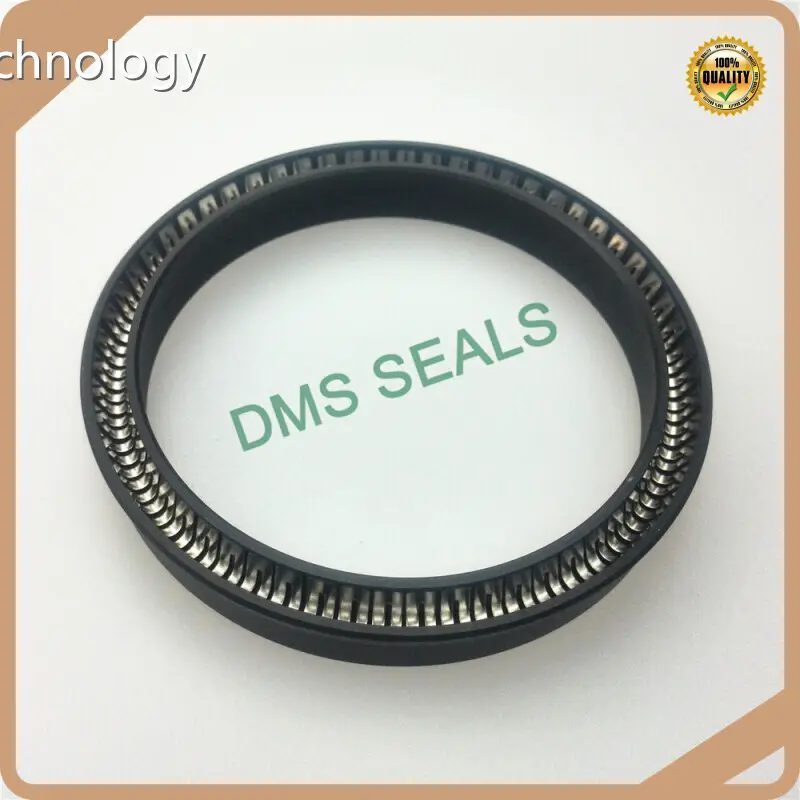

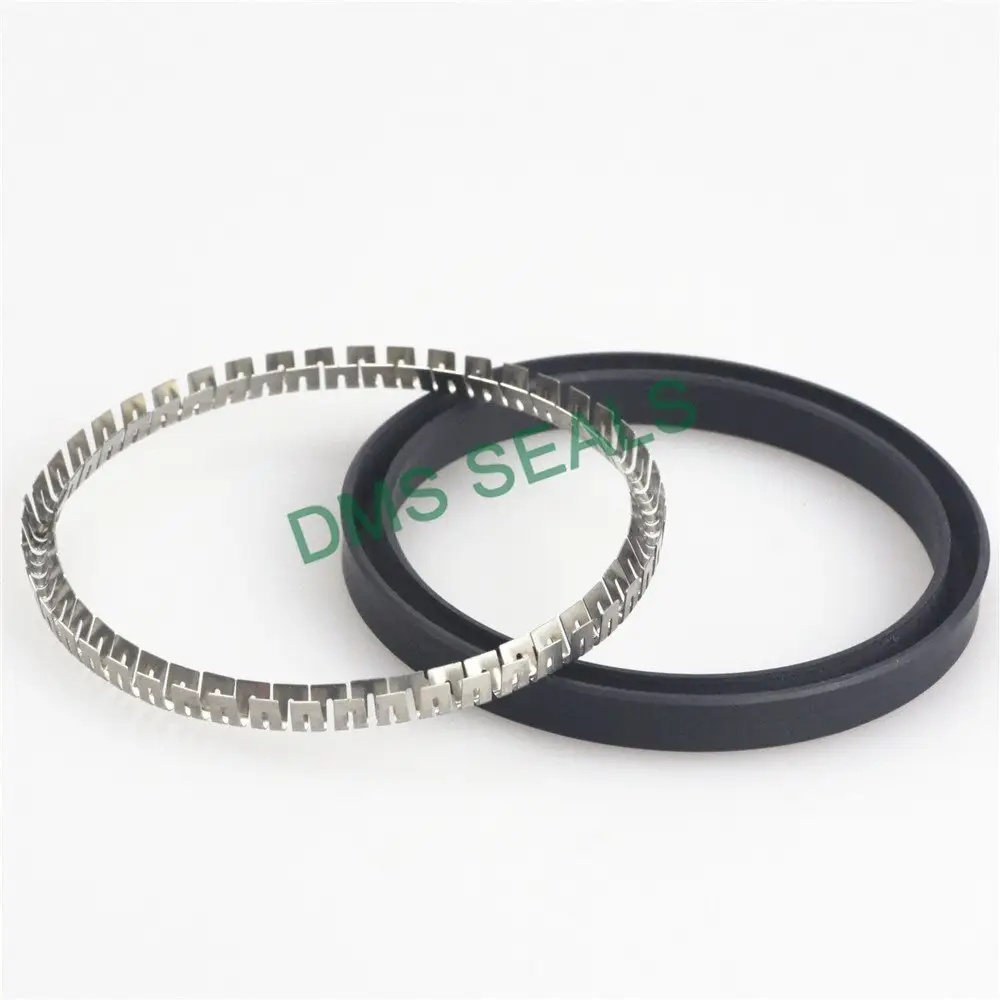

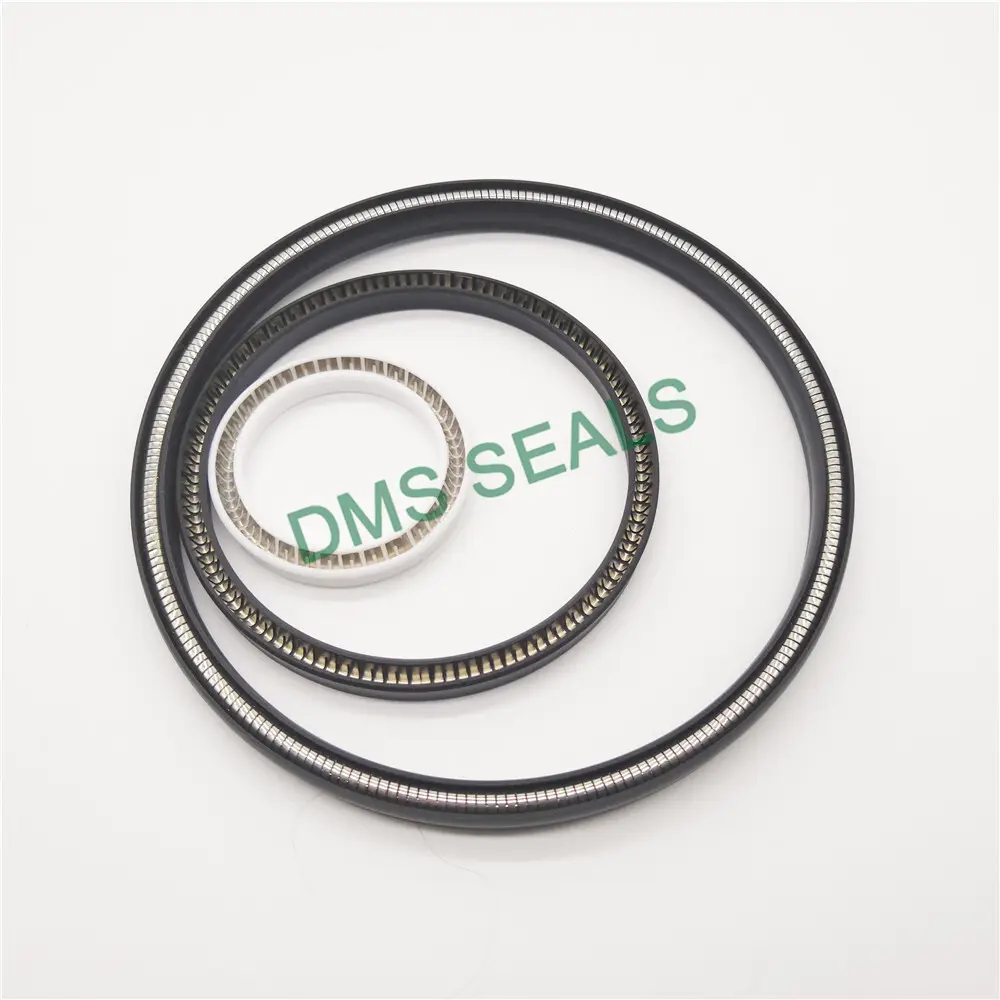

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.

Company Features

· As a leading enterprise specializing in manufacturing shaft oil seals, Dms Seals Technology Co.,limited has an outstanding capacity in this field.

· Adopted by high-quality materials, our shaft oil seals are very welcome among customers. This shaft oil seals is the most common product but with the highest quality.

· DMS Seals is deeply rooted in the desire for growth. Ask!

Product Details

Dms Seals Technology's shaft oil seals has excellent performances, which are reflected in the following details.

Application of the Product

shaft oil seals can be applied to different industries, fields and scenes.

Dms Seals Technology insists on providing customers with O-ring Seal,Oil Seal Manufacturer of high quality and a one-stop solution that's comprehensive and efficient.

Product Comparison

The shaft oil seals of Dms Seals Technology has been improved greatly in the following aspects.
