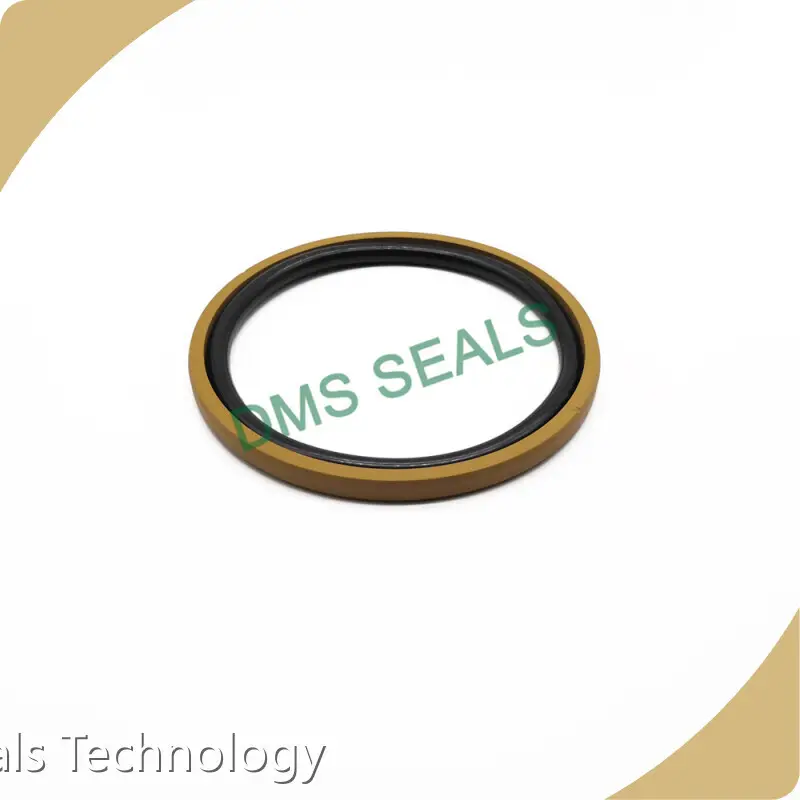

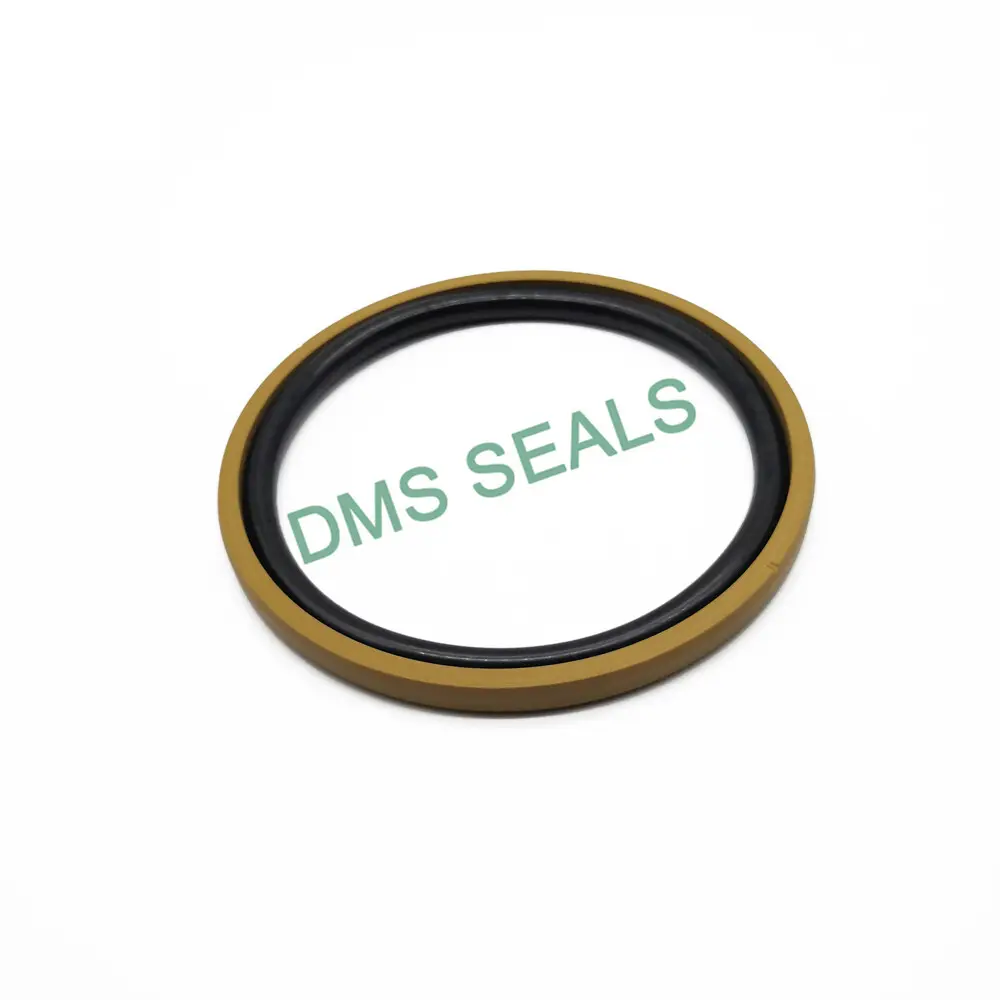

Rubber Seal Ring Manufacturers Wholesale -30℃+200℃ 1

Rubber Seal Ring Manufacturers Wholesale -30℃+200℃ 2

Rubber Seal Ring Manufacturers Wholesale -30℃+200℃ 3

Rubber Seal Ring Manufacturers Wholesale -30℃+200℃

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

Hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages

· The material of rubber seal ring manufacturers is safe even for children.

· The properties of rubber seal ring manufacturers attain the standard requirement.

· The product is dependable for various applications.

Product Description

1.Installation Recommendation

undefined

2.Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

Standard materials

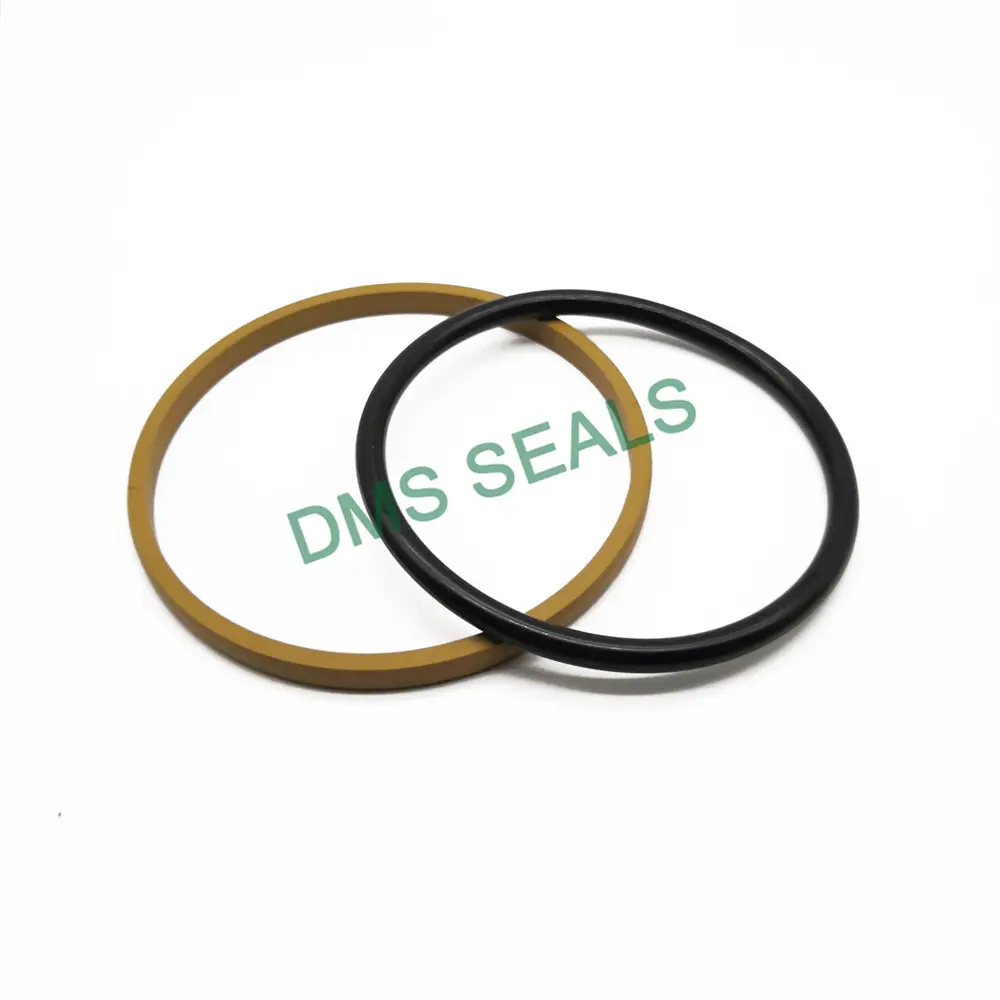

Sealing ring: filled PTFE

O-Ring: NBR / FKM

3.Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

4.Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7

Company Features

· DMS Seals has attained dominant position for its excellent rubber seal ring manufacturers and professional service.

· With its advanced technology as its core competitiveness, rubber seal ring manufacturers produced by DMS Seals enjoy great reputation. Supported by mature technology, DMS Seals has enough capability to offer qualified rubber seal ring manufacturers for customers. Our company is proud to own the most advanced technology in producing rubber seal ring manufacturers.

· Our purpose is clear and definite. Since our inception, we endeavor to help clients create economic value and manufacture high-value products.

Product Details

We strive for perfection and pursue excellence in every detail of production. All this promotes the high quality of our products.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
