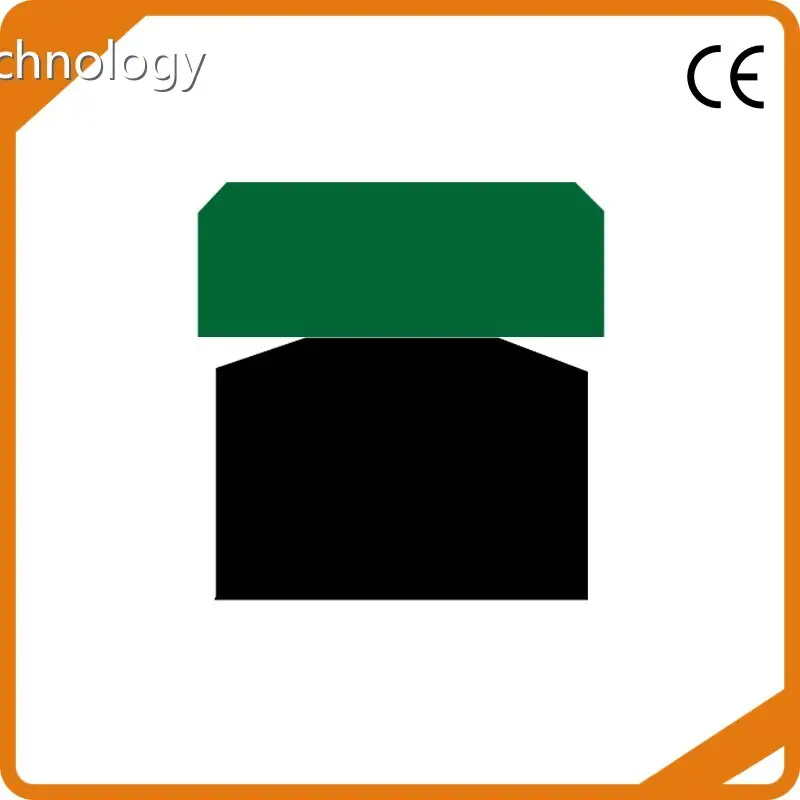

Rubber Seal Design 0-60MPaquality Assurance
Company Advantages
· With the help of experienced craftsman, DMS Seals rubber seal design is produced following the highest production standards.
· Strict quality tests are conducted to ensure longevity and cost effectiveness of this offered product.
· Due to its good characteristics, this product has been widely used in the global market.
|
Bore Diameter |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
|||
|
D H8 |
d h8 |
L1+0.2 |
R1 |
16MPa |
26MPa |
32MPa |
40MPa |
|
55.0-149.9 |
D-10.0 |
10.0 |
0.4 |
0.60 |
0.50 |
0.40 |
0.40 |
|
150.0-244.9 |
D-12.5 |
12.5 |
0.4 |
0.75 |
0.65 |
0.55 |
0.50 |
|
245.0-500.0 |
D-15.0 |
15.0 |
0.8 |
0.75 |
0.65 |
0.55 |
0.50 |
|
500.1-760.0 |
D-17.5 |
17.5 |
1.2 |
0.75 |
0.65 |
0.55 |
0.50 |
|
760.1-999.9 |
D-20.0 |
20.0 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |
|
≧1000 |
D-20.0 |
20.5 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |
Application and properties
Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3-1600mm |
0-60MPa |
-30℃+100℃ |
5 m/s |
hydraulic oil, flame retardant liquid, water and others |
|
Bore Dia. |
Groove Dia. |
Groove Width |
Order No. |
|
D H8 |
d h8 |
L+0.2 |
|
|
55 |
40 |
10 |
GSF-W55*40*10 |
|
80 |
60 |
10 |
GSF-W80*60*10 |
|
110 |
90 |
10 |
GSF-W110*90*10 |
|
130 |
110 |
10 |
GSF-W130*110*10 |
|
160 |
135 |
12.5 |
GSF-W160*135*12.5 |
|
180 |
155 |
12.5 |
GSF-W180*155*12.5 |
|
200 |
175 |
12.5 |
GSF-W200*175*12.5 |
|
215 |
190 |
12.5 |
GSF-W215*190*12.5 |
|
230 |
205 |
12.5 |
GSF-W230*205*12.5 |
Company Features
· Dms Seals Technology Co.,limited is one of the leading manufacturers and exporters of rubber seal design in China. We are appreciated for extensive industry experience and expertise.
· We have professional technicians who can produce the best rubber seal design.
· Dms Seals Technology Co.,limited has been working closely with customers to develop solutions. Get quote!
Product Comparison
The rubber seal design mainly promoted by Dms Seals Technology have been further improved in the past through the technical improvement, which is reflected in the following aspects.
Enterprise Advantages
Dms Seals Technology has a strong technical team engaged in independent innovation. Meanwhile, we actively strengthen cooperation with domestic research institutes. We recruit well-known experts in the industry as our senior consultants. All these provide strong technical support for our development.
Dms Seals Technology provides comprehensive and professional services in accordance with the actual needs of customers.
Adhering to the mission of 'providing high-quality products for the people', our company strives to make joint innovation and development of technology, quality and service. We believe our company will continuously lead the development of the industry in the future.
Dms Seals Technology, built in has developed into a leading enterprise with advanced technology and service in the industry. It is the achievement of years of exploration and innovation.
In recent years, Dms Seals Technology has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
