Product details of the rubber o rings manufacturers
Quick Overview
DMS Seals rubber o rings manufacturers is made of fine raw materials, aesthetic and practical. rubber o rings manufacturers is available with complete product types. Dms Seals Technology's rubber o rings manufacturers is widely applicable in the industry. It has established a deeper connection with prospective buyers.
Product Description
More detailed information about rubber o rings manufacturers is provided for you as follows.
1. Installation Recommendation
2. Installation Sizes
Piston
|
P<5MPa |
B=d+0.9 |
D<60 |
C=4 |
h <7 |
L=h+0.5 |
|
P 5-10MPa |
B=d+0.7 |
D 60-180 |
C=6.5 |
h =7-8 |
L=h+0.8 |
|
P 10-20MPa |
B=d+0.4 |
D 180-250 |
C=7.5 |
h >8 |
L=h+1.0 |
|
P 20-30MPa |
B=d+0.2 |
D 250-400 |
C=10 |
h >8 |
L=h+1.0 |
Piston Rod
|
P<5MPa |
B=D-0.9 |
D<60 |
C=4 |
D1=D-1 |
h<7 |
L=h+0.5 |
|
P 5-10MPa |
B=D-0.7 |
D 60-180 |
C=5.5 |
D1=D-1 |
h=7-8 |
L=h+0.8 |
|
P 10-20MPa |
B=D-0.4 |
D 120-180 |
C=6.5 |
D1=D-1 |
h>8 |
L=h+1.0 |
|
P 20-30MPa |
B=D-0.2 |
D 180-250 |
C=7.5 |
D1=D-2 |
h>8 |
L=h+1.0 |
|
P 30-40MPa |
B=D-0.1 |
D 250-400 |
C=10 |
D1=D-2 |
h>8 |
L=h+1.0 |
3. Application and properties

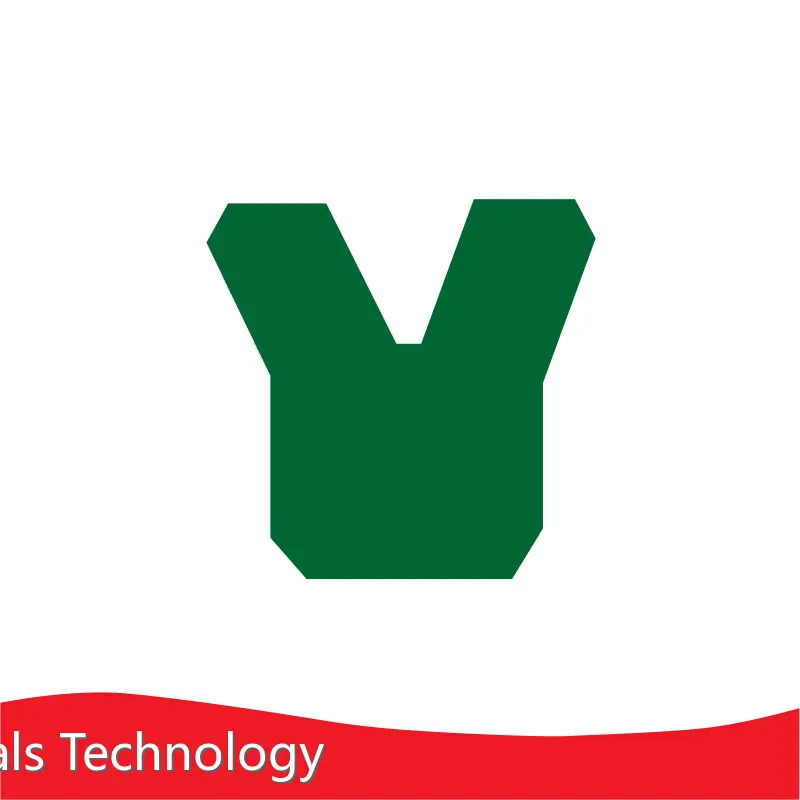

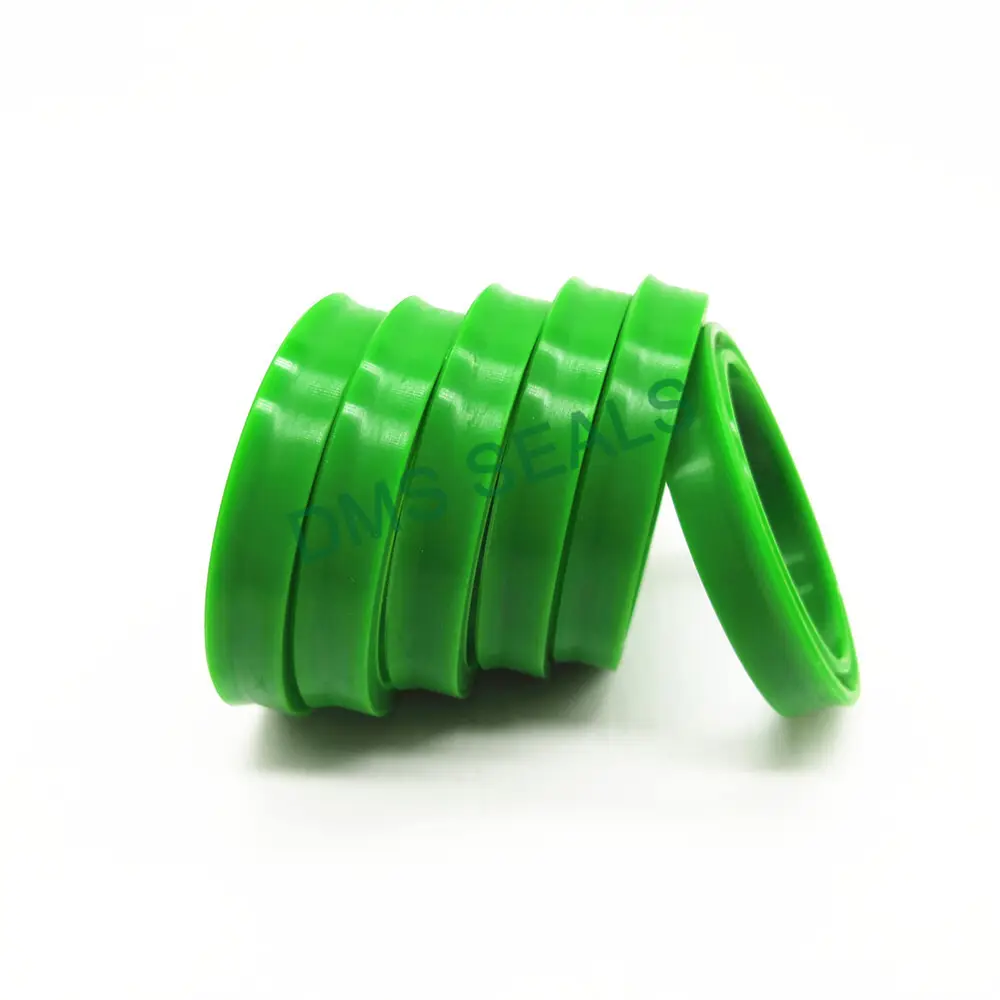

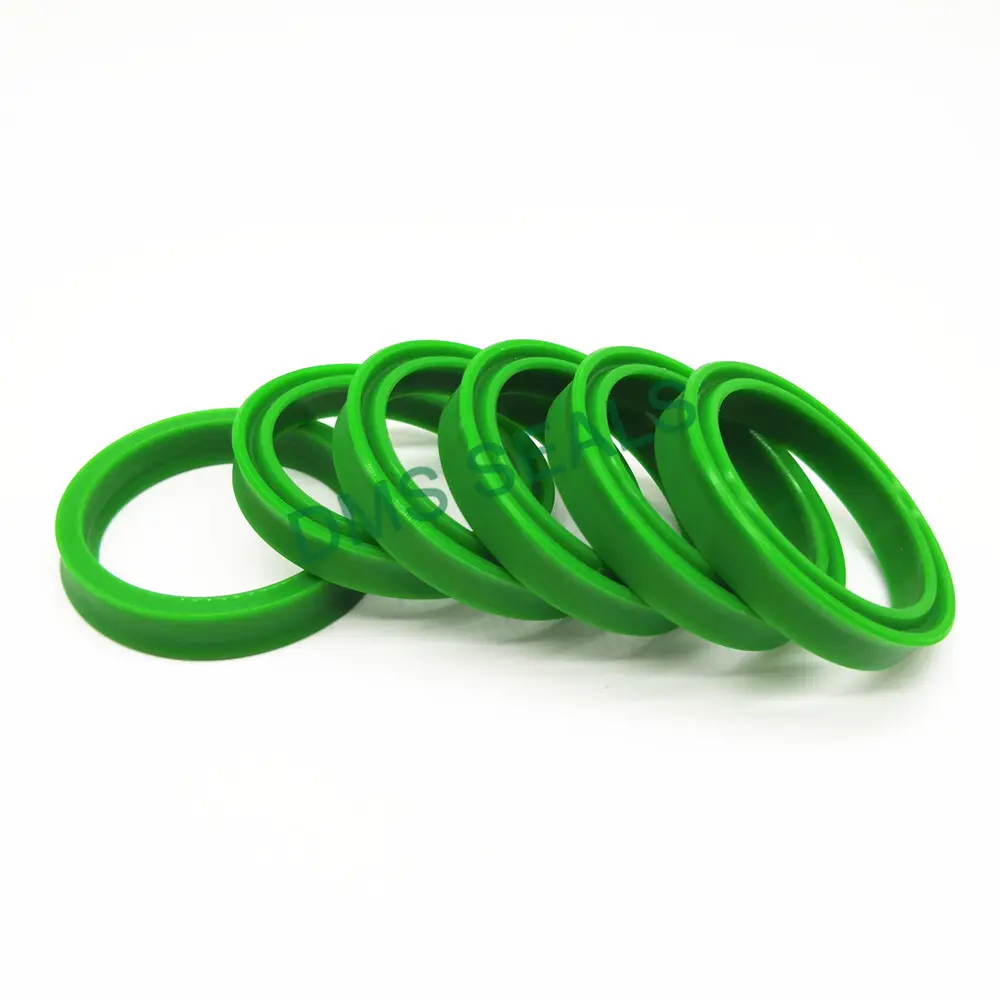

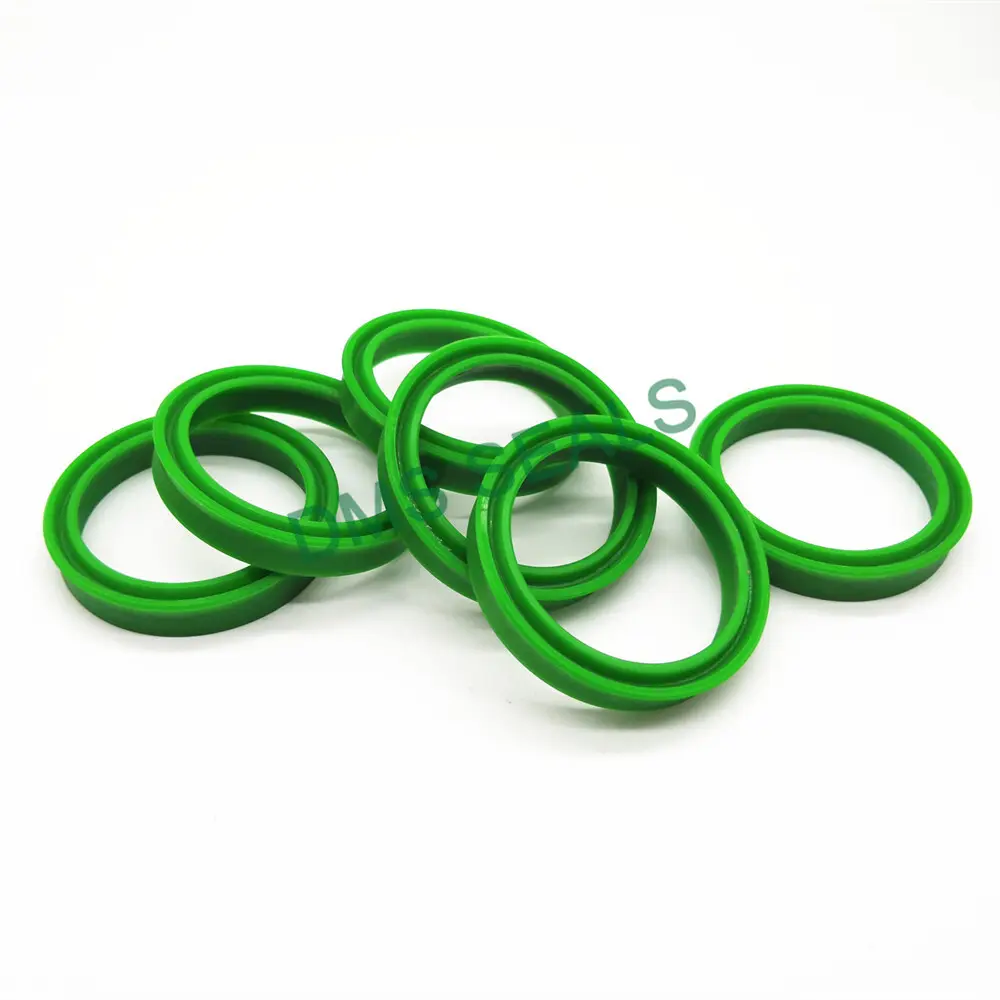

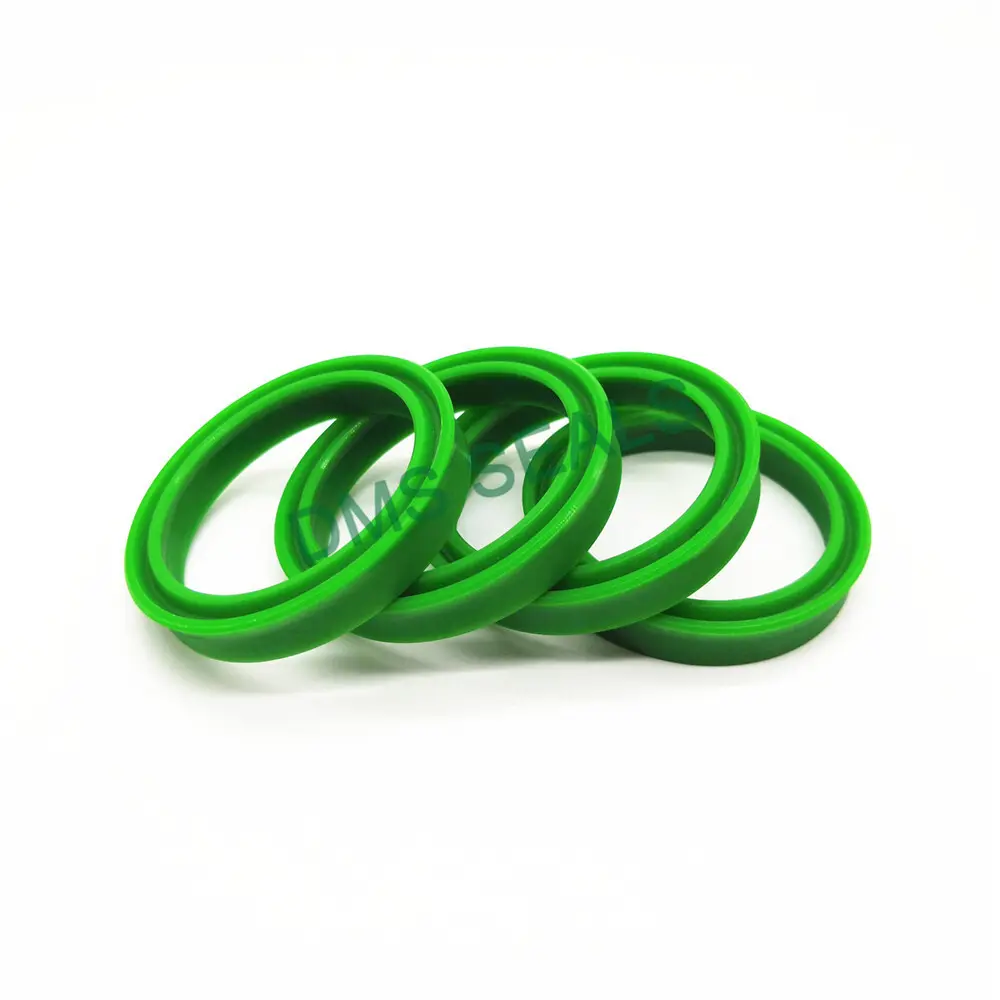

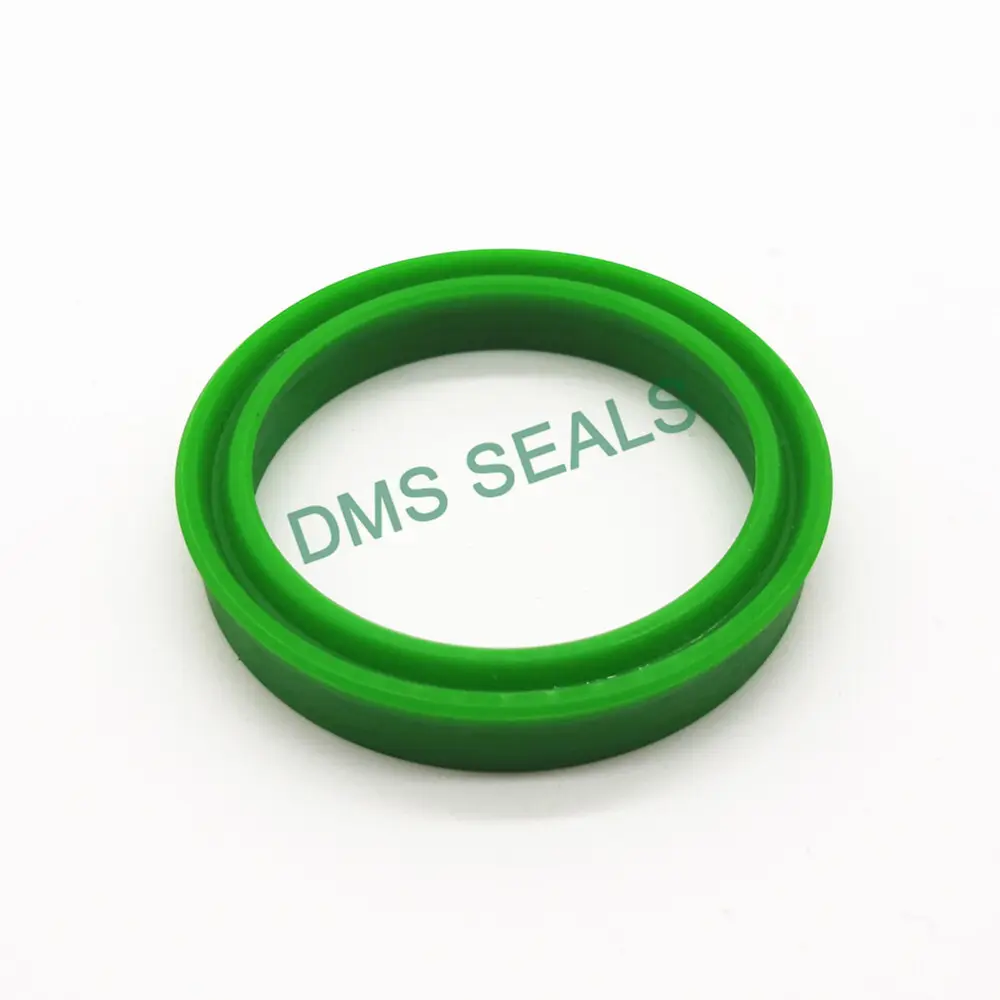

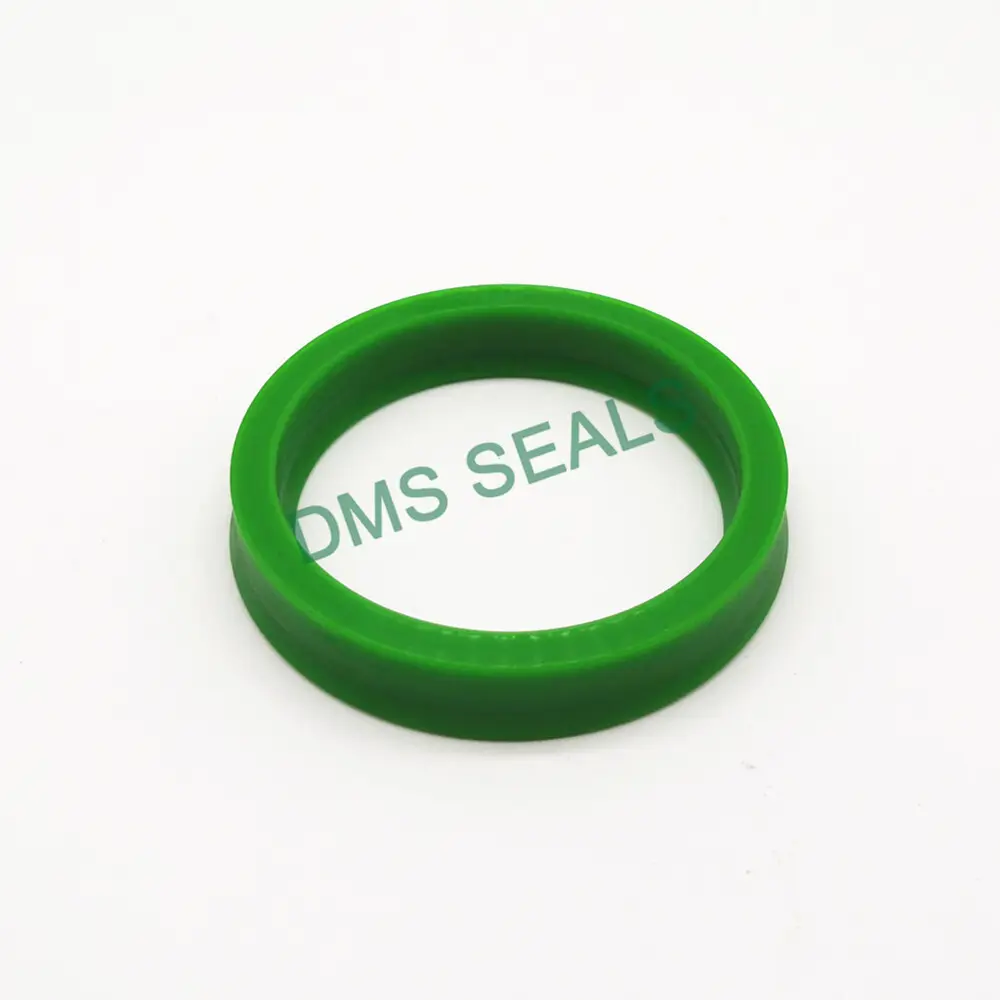

UNS seal is common use in the hydraulic cylinder, it is a typical lip seal. It can get good sealing effect in piston and piston rod. UNS seal mainly used for the piston or piston rod of heavy duty machinery and industry hydraulic.
4. Standard materials
TPU, CPU
5. Working condition
Pressure: CPU≤40MPa TPU≤31.5MPa
Temperature: -35~+100℃
Speed: 0.5m/s
Medium: Hydraulic oils ( mineral oil-based )
Company Introduction
In a highly competitive market, DMS Seals is a well-known rubber o rings manufacturers supplier. The factory has established a strict quality management system. This system covers the requirements for incoming materials and demands for the production process. The implementation of the system has obviously standardized the processes. Dms Seals Technology Co.,limited will unswervingly supply high quality rubber o rings manufacturers. Get quote!
If you want to know more details of our products, please contact us. We are looking forward to cooperating with you!
