Product details of the rotary seals
Product Overview
All materials of DMS Seals rotary seals meet global standards. This product has good durability and is suitable for long-term use and storage. The rotary seals developed by our company can play a role in various fields. It has good economic value with a wide market prospect.
Product Description
Our rotary seals are processed by the latest technology in the industry, and they perform better in the following details.
|
Rod Diameter |
Groove Diameter |
Seal Width |
Groove Width |
Guide Clearance S max |
|
|
d e8 |
D H9 |
H |
L |
0-10MPa |
15-36MPa |
|
50-79 |
d+10.0 |
4.5 |
5.0 |
0.40-0.30 |
0.30-0.25 |
|
80-109 |
d+13.8 |
7.0 |
7.5 |
0.45-0.35 |
0.35-0.30 |
|
110-299 |
d+20.0 |
9.5 |
10.0 |
0.55-0.45 |
0.45-0.35 |
|
300-600 |
d+24.0 |
12.5 |
13.0 |
0.60-0.55 |
0.55-0.45 |
Application and properties

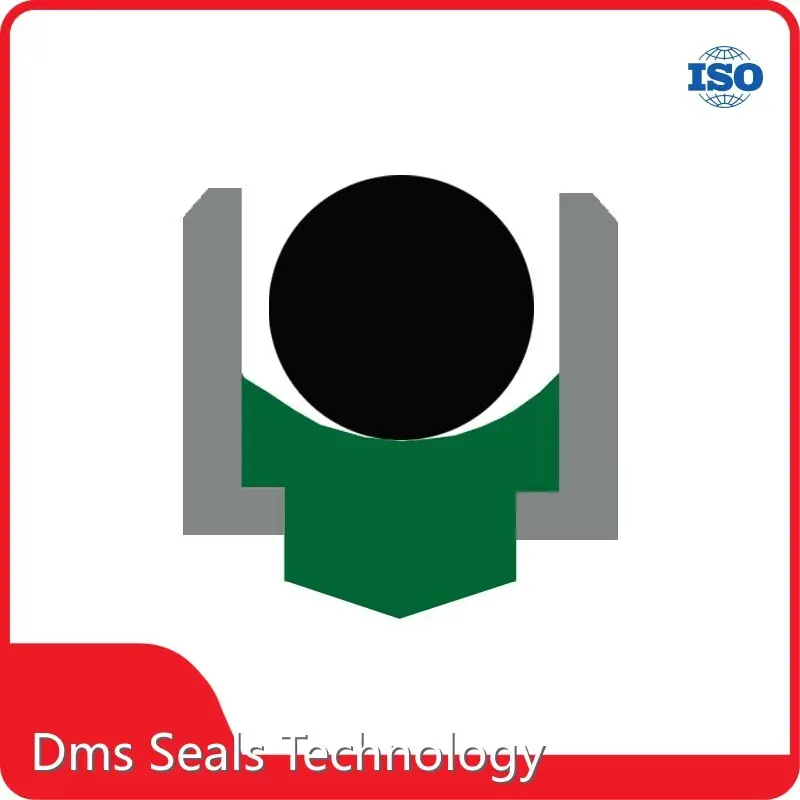

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-Ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3-1600mm |
0-36MPa |
-36℃+100℃ |
0.5 m/s |
hydraulic oil, flame retardant liquid, water and others |
|
d e8 |
D H9 |
H |
L |
e |
Order No. |
|
50 |
60 |
4.5 |
5 |
7 |
OI50*60*4.5 |
|
65 |
75 |
4.5 |
5 |
7 |
OI65*75*4.5 |
|
80 |
93.8 |
7.0 |
7.5 |
7 |
OI80*93.8*7 |
|
95 |
108.8 |
7.0 |
7.5 |
7 |
OI95*108.8*7 |
|
115 |
135 |
9.5 |
10 |
10 |
OI115*135*9.5 |
|
130 |
150 |
9.5 |
10 |
10 |
OI130*150*9.5 |
|
160 |
180 |
9.5 |
10 |
10 |
OI160*180*9.5 |
|
190 |
210 |
9.5 |
10 |
10 |
OI190*210*9.5 |
|
225 |
245 |
9.5 |
10 |
10 |
OI225*245*9.5 |
