DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
Rotary Seals Catalogue 0-40MPa 20-600mmfactory Direct Supply
Product details of the rotary seals catalogue
Product Description
DMS Seals rotary seals catalogue is manufactured by the precision machining equipment. This product is ensured by our QC team who conducts a stringent quality check process. Dms Seals Technology Co.,limited has designed and developed a batch of rotary seals catalogue products that are deeply loved by customers.

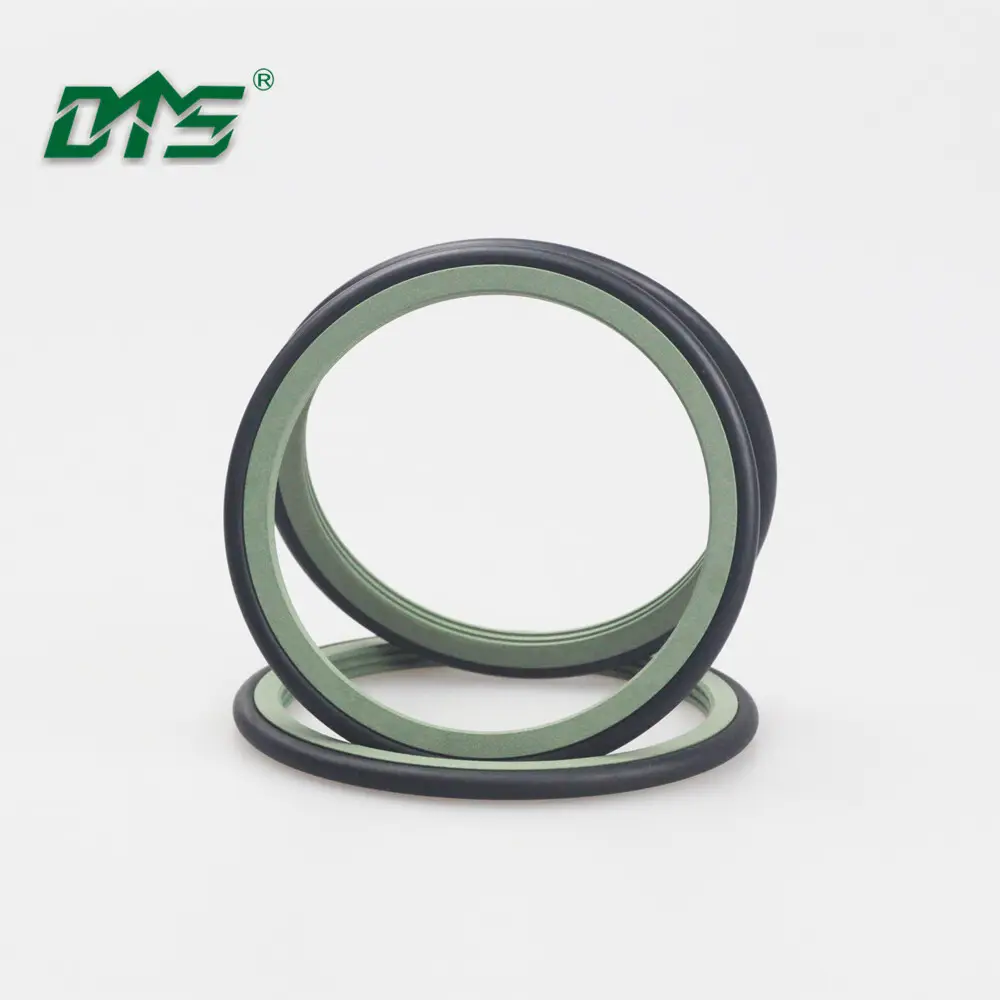

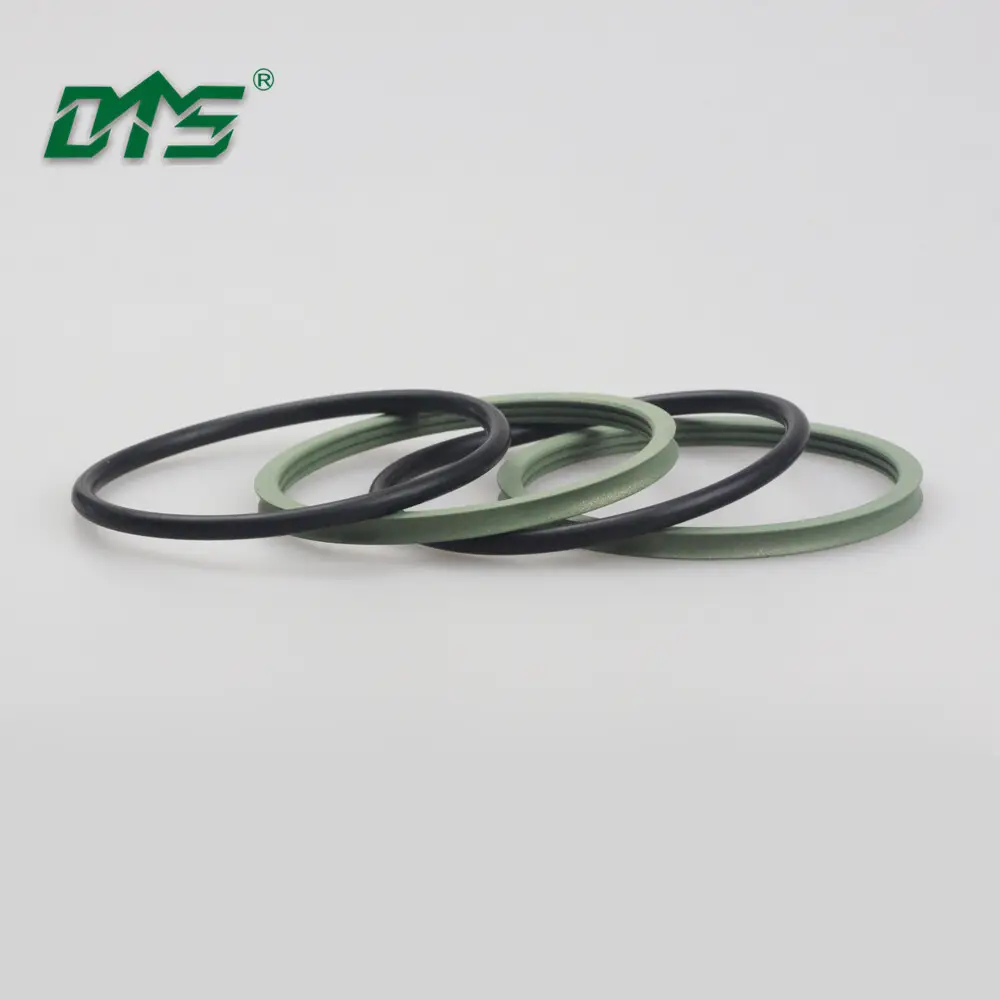

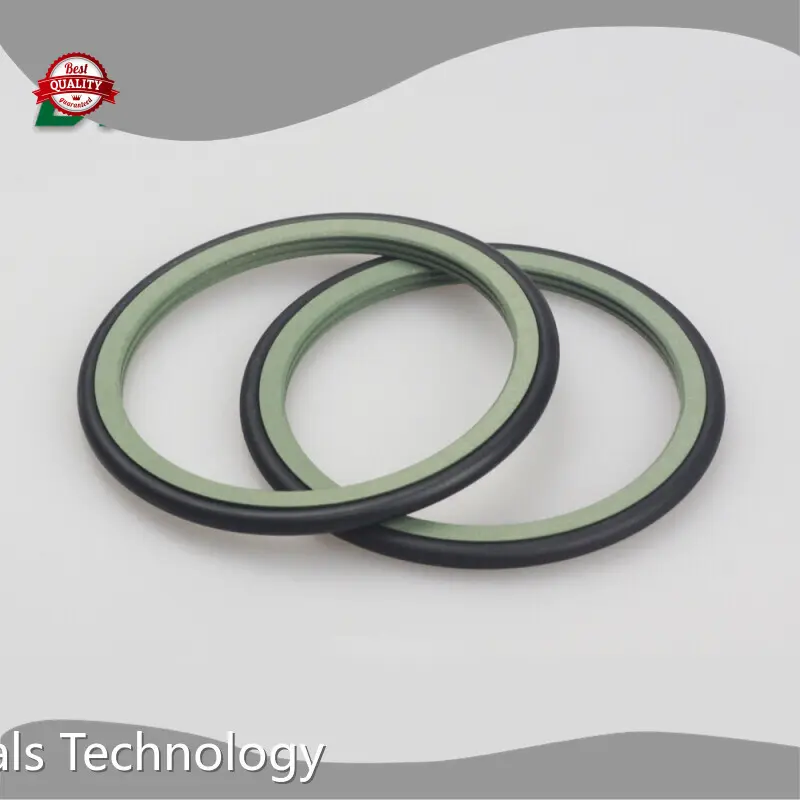

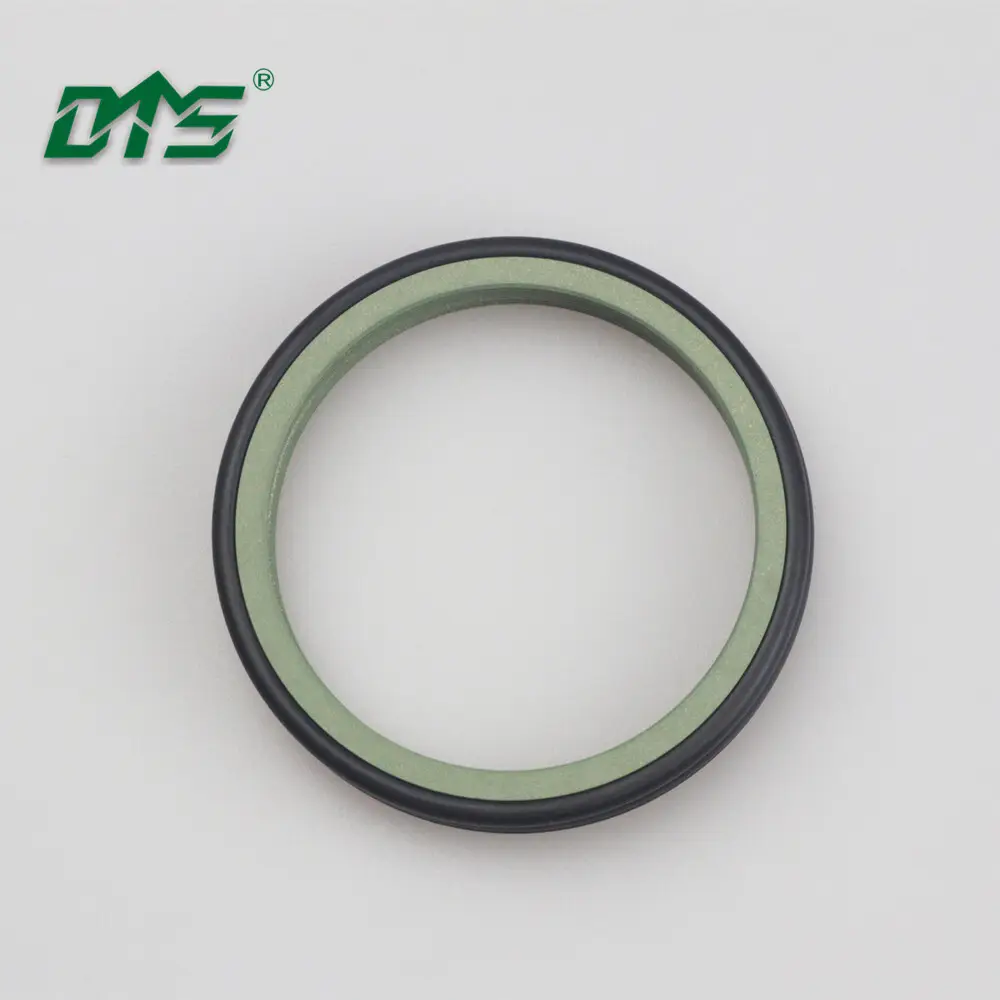

The GRS consists of a wear-resistant, low-friction filled PTFE slip ring and an O-ring rubber seal. O-rings provide preload to compensate for wear on the sliding ring. It has a bidirectional sealing effect and is suitable for high-pressure, low-speed rotary shaft sealing in hydraulic equipment.
| Item | Specifications |
| Product Name | Valave Application Carbon PTFE Rotary Seals GRS |
| Products Category | Hydraulic seals, Oil seals, O-Rings |
| Material | PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc. |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Sizes | Standard and customize |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
| NO. | SIZE | NO. | SIZE |
| 1 | GRS20*27.5*3.2 | 32 | GRS120*131*4.2 |
| 2 | GRS22*29.5*3.2 | 33 | GRS125*136*4.2 |
| 3 | GRS25*32.5*3.2 | 34 | GRS130*141*4.2 |
| 4 | GRS26*33.5*3.2 | 35 | GRS135*146*4.2 |
| 5 | GRS28*35.5*3.2 | 36 | GRS140*151*4.2 |
| 6 | GRS30*37.5*3.2 | 37 | GRS145*156*4.2 |
| 7 | GRS32*39.5*3.2 | 38 | GRS150*161*4.2 |
| 8 | GRS35*42.5*3.2 | 39 | GRS155*166*4.2 |
| 9 | GRS36*43.5*3.2 | 40 | GRS160*171*4.2 |
| 10 | GRS40*51*4.2 | 41 | GRS170*181*4.2 |
| 11 | GRS42*53*4.2 | 42 | GRS180*191*4.2 |
| 12 | GRS44*55*4.2 | 43 | GRS190*201*4.2 |
| 13 | GRS45*56*4.2 | 44 | GRS200*215.5*6.3 |
| 14 | GRS48*59*4.2 | 45 | GRS210*225.5*6.3 |
| 15 | GRS50*61*4.2 | 46 | GRS220*235.5*6.3 |
| 16 | GRS52*63*4.2 | 47 | GRS240*255.5*6.3 |
| 17 | GRS55*66*4.2 | 48 | GRS250*265.5*6.3 |
| 18 | GRS56*67*4.2 | 49 | GRS280*301*8.1 |
| 19 | GRS60*71*4.2 | 50 | GRS300*321*8.1 |
| 20 | GRS63*74*4.2 | 51 | GRS320*341*8.1 |
| 21 | GRS65*76*4.2 | 52 | GRS350*371*8.1 |
| 22 | GRS70*81*4.2 | 53 | GRS360*381*8.1 |
| 23 | GRS75*86*4.2 | 54 | GRS400*421*8.1 |
| 24 | GRS80*91*4.2 | 55 | GRS420*441*8.1 |
| 25 | GRS85*96*4.2 | 56 | GRS450*471*8.1 |
| 26 | GRS90*101*4.2 | 57 | GRS480*501*8.1 |
| 27 | GRS95*106*4.2 | 58 | GRS500*521*8.1 |
| 28 | GRS100*111*4.2 | 59 | GRS520*541*8.1 |
| 29 | GRS105*116*4.2 | 60 | GRS530*551*8.1 |
| 30 | GRS110*121*4.2 | 61 | GRS550*571*8.1 |
| 31 | GRS115*126*4.2 | 62 | GRS600*621*8.1 |
Company Feature
• Dms Seals Technology continuously develops ourselves in the fierce competition based on the advantages of technology and talents. This enables us to expand the sales network, from the domestic market to neighboring countries and regions.
• Our company is located in a beautiful place with outstanding people. And, there is a well-developed transportation network. It is conducive to the purchase and shipment of goods.
• Dms Seals Technology has a talents team who is responsible for R&D, production and sales of the products.
• Since the establishment in our company has constantly expanded the business range and extended industry chain to actively promote industrialization management. We have now become a leader in the industry with high reputation and strong comprehensive strength.
Dms Seals Technology produces all kinds of O-ring Seal,Oil Seal Manufacturer in large quantity. If you have any interest, please contact us for quotation or to order.
