Rod Seals Flameretardantliquid - - DMS Seals

Company Advantages

· DMS Seals rod seals comes in various specifications and design styles.

· The production process and the control of quality are constantly improved.

· Large factory and enough well-trained workers can add up to completely guarantee on-time delivery for rod seals.

1. Performance and use

Adapts to two-way rod seals. Low friction and simple grooves allow for larger piston rod clearances. Servo cylinders that require quick response are recommended to be preferred.

The adaptability of the working medium and the working temperature range can be changed by changing the material of the O-ring, so the adaptability of the medium and the working temperature range are relatively wide.

It can be used in special working conditions such as extremely high speed, extremely low speed, and micro stroke.

The installation groove is smaller. The seal is easy to install and generally requires no special tools.

Comply with GB/T 15242.1-94 and GB/T 15242.3-94 standards.

Products with different cross-sections can be selected according to the actual working pressure. In principle, the greater the working pressure, the larger the cross-section should be selected.

2. Materials

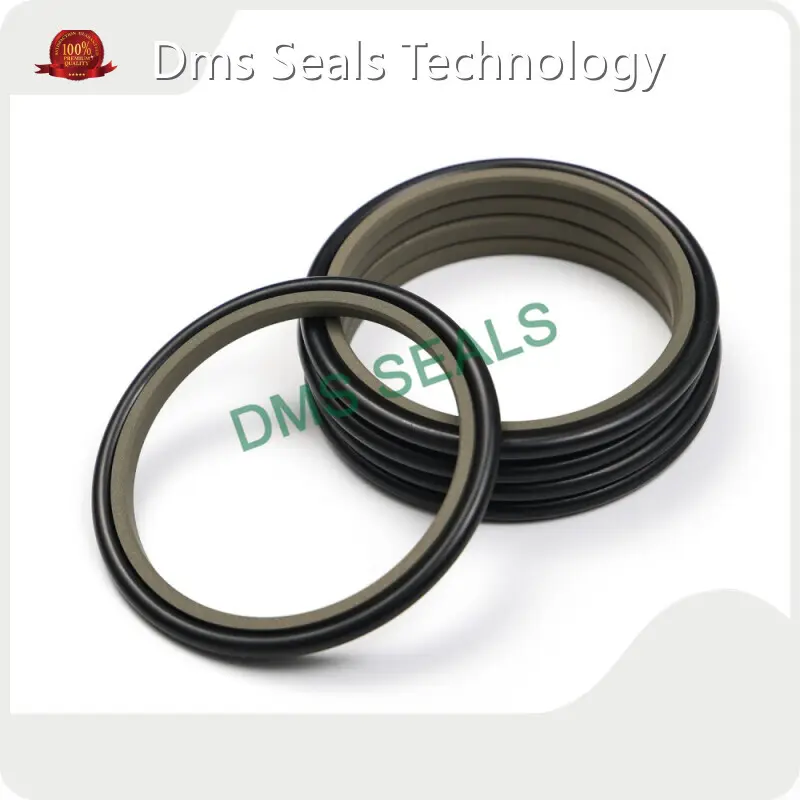

Sealing ring: Filled with polytetrafluoroethylene (PTFE). According to different working conditions and sealing requirements, different filling materials and filling processes can be selected, please inquire for details.

O-ring: nitrile rubber NBR, fluororubber FKM. The material of the O-ring is determined according to the temperature and working medium of the working condition, if you are not sure, please contact us. If you need to match fluorine rubber (FKM) O-ring, you need to explain before ordering.

3. Precautions:

Ⅰ. If other parameters of the matched O-ring are qualified, the diameter of the ring is 1-2% larger than the value listed in the sample, which will not affect the use.

Ⅱ. When installing, you can bend the sealing ring into a heart shape and put it into the groove, but there must be no creases, as shown in the following two cases, A is allowed, and B is prohibited.

Ⅲ, it is recommended that the surface hardness of the piston rod be greater than HRC40.

Ⅳ. The static leakage is larger than that of the Steering seal, but the service life is longer than that of the Steering seal.

                                                                                                                                                                                                （non-recoverable creases）

Company Features

· With years of enormous efforts on the design and manufacture of rod seals, Dms Seals Technology Co.,limited has made remarkable achievements in the industry.

· Our company has a flexible and diverse workforce with multi-skilled staff. Most of these employees can fill the positions of absent employees and work in any area that requires increased manpower. This allows us to maintain production efficiency under all circumstances.

· We uphold integrity in the business operation, and we have made it part of our corporate culture. We will protect our stakeholders' privacy and keep our promises.

Application of the Product

Dms Seals Technology's rod seals can be widely used in various fields.

We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.

Enterprise Advantages

Dms Seals Technology has a group of employees who have been engaged in the production of O-ring Seal,Oil Seal Manufacturer for many years. This provides a strong guarantee for the product quality.

Our company adheres to the philosophy of 'integrity and caring service', and the principle of 'users are teachers, peers are examples'. We adopt scientific and advanced management methods, and cultivates a professional and efficient elite service team to provide the best quality service for our customers.

Our company always adheres to the enterprise spirit of 'strict and pragmatic, innovative and developing', and follows the business philosophy of 'honesty-based, steady development'. Relying on technological innovation, we improve economic efficiency, and strive to provide consumers with better products and more professional services.

Established in Dms Seals Technology has gradually become the leading model enterprise in the industry after years of practice and fumble.

Dms Seals Technology's sales network continues to expand in China. The products are also exported to Central Asia, Eastern Europe, Northern Europe, and other regions.
