Rod Seals 15 M/sFactory Price

Diameter Range:

3-1600mm

Pressure Range:

0 - 60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

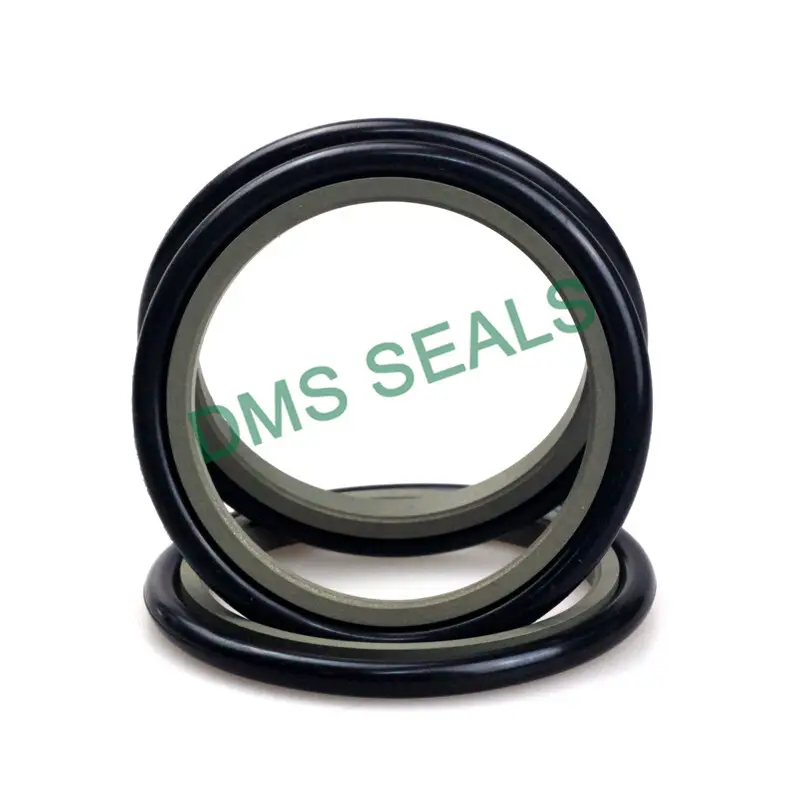

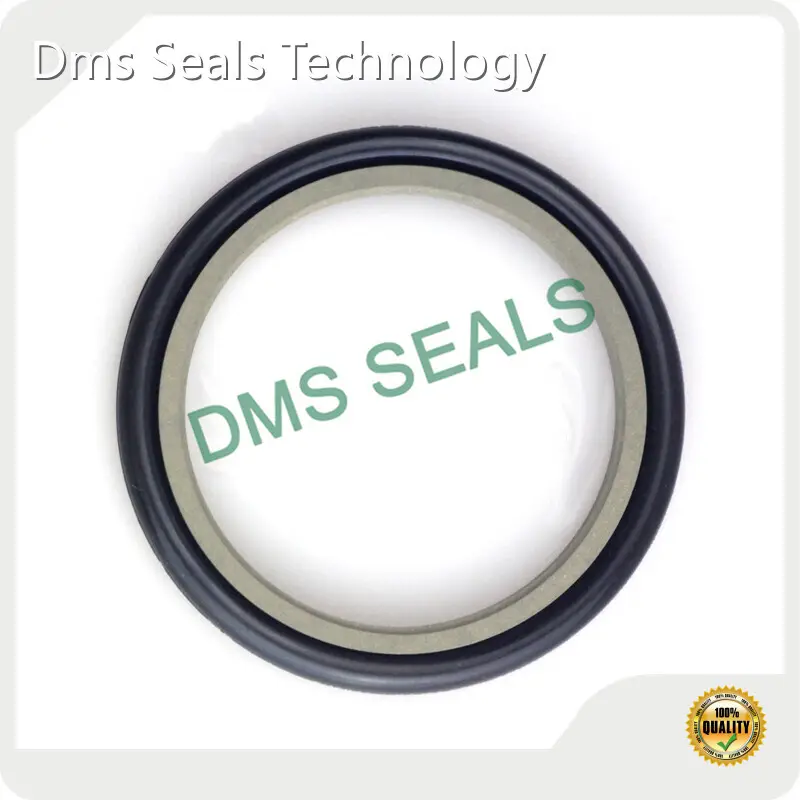

Product details of the rod seals

Product Overview

The material of rod seals is exported from abroad and its quality is superior. The quality of the product has been recognized by the international authority. Dms Seals Technology's rod seals is widely used in multiple industries and fields. In the fierce market competition, it gradually shows strong competitiveness.

Product Description

Dms Seals Technology's rod seals has excellent performances by virtue of the following excellent details.

Product Description

1. Performance and use

It is suitable for one-way or two-way piston rod sealing, and it also has good sealing performance at medium and low pressures, with very little leakage.

The friction coefficient is small, and it can work with or without lubrication, and can be used for oil-free lubrication cylinder seals. Servo cylinders that require quick response are recommended to be preferred.

The adaptability of the working medium and the working temperature range can be changed by changing the material of the O-ring.

It can be used in special working conditions such as extremely high speed, extremely low speed, and micro stroke.

The installation groove is smaller. The seal is easy to install and generally requires no special tools.

Comply with GB/T 15242.1-94 and GB/T 15242.3-94 standards.

Products with different cross-sections can be selected according to the actual working pressure. In principle, the greater the working pressure, the larger the cross-section should be selected.

2.material

Sealing ring: Filled with polytetrafluoroethylene (PTFE). According to different working conditions and sealing requirements, different filling materials and filling processes can be selected. If the leakage rate is extremely strict, our special PU material can be used. Please inquire for details.

O-ring: nitrile rubber NBR, fluororubber FKM. The material of the O-ring is determined according to the temperature and working medium of the working condition, if you are not sure, please contact us. If you need to match fluorine rubber (FKM) O-ring, you need to explain before ordering.

3. Relevant dimensions:

Front pressure surface R1=0.3～0.5; back pressure surface R2=0.1～0.2; groove bottom R3=0.5～1; maximum clearance e=0.2～0.5; lead-in length C=(0.5～0.7)L. The specific value depends on the seal The size of the section is selected as appropriate. See the table below for the rest of the values:

Rod Diameter dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

4. Precautions:

Ⅰ. If other parameters of the matched O-ring are qualified, the diameter of the ring is 1-2% larger than the value listed in the sample, which will not affect the use.

Ⅱ. When installing, you can bend the sealing ring into a heart shape and put it into the groove, but there must be no creases. In the two cases shown in the figure below, A is allowed and B is prohibited.

（non-recoverable creases）
