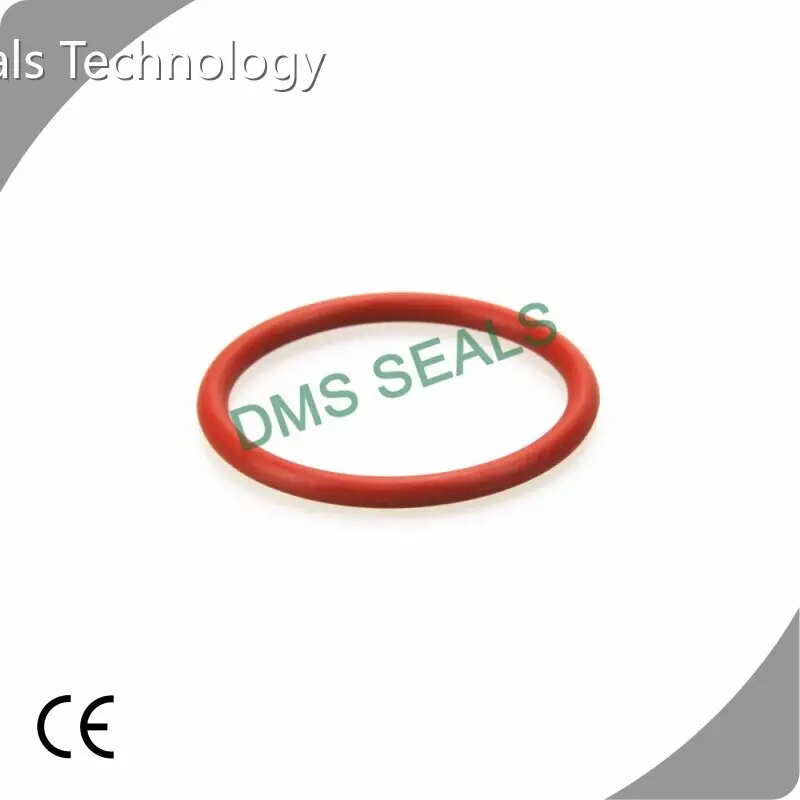

O-Rings Hydraulic O Ring Wholesale
Product details of the hydraulic o ring
Product Information
hydraulic o ring offers exceptional performance to meet the evolving application needs of markets. Quality and reliability are the basic characteristics of the product. Dms Seals Technology Co.,limited has advanced production equipment, sophisticated detection methods and quality assurance system.
1. Installation Recommendation
2. Application and properties
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
3. Standard materials
Silicone
4. Performance parameter
|
Static Seal |
Dynamic Seal |
|
|
Working Pressure |
No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa. |
No support ring, up to 5MPa; With the support ring, higher pressure. |
|
Movement Speed |
Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s. |
|
|
Temperature |
NBR: -30℃ - 100℃; FKM: -20℃ - 220℃. |
|
5. Wire Diameter Tolerance
|
Wire diameter of O-Ring (mm) |
Tolerance (±mm) |
|
0-1.8 |
0.08 |
|
1.80-2.65 |
0.09 |
|
2.65-3.55 |
0.10 |
|
3.55-5.30 |
0.13 |
|
5.30-7.00 |
0.15 |
|
7.00-8.00 |
0.18 |
|
8.00-10.00 |
0.21 |
|
10.00-12.00 |
0.25 |
6. Inner diameter tolerance
|
Inner Diameter d1 mm |
Tolerance ±mm |
Inner Diameter d1 mm |
Tolerance ±mm |
Inner Diameter d1 mm |
Tolerance ±mm |
|
0.70-2.50 2.50-4.50 4.50-6.30 |
0.13 0.14 0.15 |
43.70-45.00 46.00-46.20 46.20-47.50 |
0.42 0.43 0.44 |
95.00-97.50 97.50-100.00 100.00-103.00 |
0.83 0.84 0.87 |
|
6.30-8.50 8.50-10.00 10.00-11.20 |
0.16 0.17 0.18 |
47.50-48.70 48.70-50.00 50.00-51.50 |
0.45 0.46 0.47 |
103.00-106.00 106.00-109.00 109.00-112.00 |
0.89 0.91 0.93 |
|
11.20-14.00 14.00-16.00 16.00-18.00 |
0.19 0.20 0.21 |
51.50-53.00 53.00-54.50 54.50-56.00 |
0.48 0.50 0.51 |
112.00-115.00 115.00-118.00 118.00-122.00 |
0.95 0.97 1.00 |
|
18.00-20.00 20.00-21.20 21.20-23.60 |
0.22 0.23 0.24 |
56.00-58.00 58.00-60.00 60.00-61.50 |
0.52 0.54 0.55 |
122.00-125.00 125.00-128.00 128.00-132.00 |
1.03 1.05 1.08 |
|
23.60-25.00 25.00-26.50 26.50-28.00 |
0.25 0.26 0.28 |
61.50-63.00 63.00-65.00 65.00-67.00 |
0.56 0.58 0.59 |
132.00-136.00 136.00-140.00 140.00-145-00 |
1.10 1.13 1.17 |
|
28.00-30.00 30.00-31.50 31.50-33.50 |
0.29 0.31 0.32 |
67.00-69.00 69.00-71.00 71.00-73.00 |
0.61 0.63 0.64 |
145.00-150.00 150.00-155.00 155.00-160.00 |
1.20 1.24 1.27 |
|
33.50-34.50 34.50-35.50 35.50-36.50 |
0.33 0.34 0.35 |
73.00-75.00 75.00-77.50 77.50-80.00 |
0.66 0.67 0.69 |
160.00-165.00 165.00-170.00 170.00-175.00 |
1.31 1.34 1.38 |
|
36.50-37.50 37.50-38.70 38.70-40.00 |
0.36 0.37 0.38 |
80.00-82.50 82.50-85.00 85.00-87.50 |
0.71 0.73 0.75 |
175.00-180.00 180.00-185.00 185.00-190.00 |
1.41 1.44 1.48 |
|
40.00-41.20 41.20-42.50 42.50-43.70 |
0.39 0.40 0.41 |
87.50-90.00 90.00-92.50 92.50-95.00 |
0.77 0.79 0.81 |
190.00-195.00 195.00-200.00 200.00-206.00 |
1.51 1.55 1.59 |
|
206.00-212.00 212.00-218.00 224.00-230.00 |
1.63 1.71 1.75 |
325.00-335.00 335.00-345.00 345.00-355.00 |
2.43 2.49 2.56 |
500.00-515.00 515.00-530.00 530.00-545.00 |
3.54 3.63 3.72 |
|
230.00-236.00 236.00-243.00 243.00-250.00 |
1.79 1.83 1.88 |
355.00-365.00 365.00-375.00 375.00-387.00 |
2.62 2.68 2.76 |
545.00-560.00 560.00-580.00 580.00-600.00 |
3.81 3.93 4.05 |
|
250.00-258.00 258.00-265.00 265.00-272.00 |
1.93 1.98 2.02 |
387.00-400.00 400.00-412.00 412.00-425.00 |
2.84 2.91 2.99 |
600.00-615.00 615.00-630.00 630.00-650.00 |
4.13 4.22 4.34 |
|
272.00-280.00 280.00-290.00 290.00-300.00 |
2.08 2.14 2.21 |
425.00-437.00 437.00-450.00 450.00-462.00 |
3.07 3.15 3.22 |
650.00-670.00 |
4.46 |
|
300.00-307.00 307.00-315.00 315.00-325.00 |
2.25 2.30 2.37 |
462.00-475.00 475.00-485.00 485.00-500.00 |
3.30 3.37 3.45 |
Company Feature
• Dms Seals Technology's location has a pleasant climate, abundant resources, and unique geographical advantages. Meanwhile, the traffic convenience is conducive to the circulation and transportation of products.
• In order to protect the rights and interests of consumers, Dms Seals Technology gathers a number of professional customer service staff to solve various problems. It is our commitment to provide quality services.
• Our sales network is spreading all over the country. We are dedicated to making it go global.
We have ample inventory and discounts for large purchases. Welcome to contact us!
