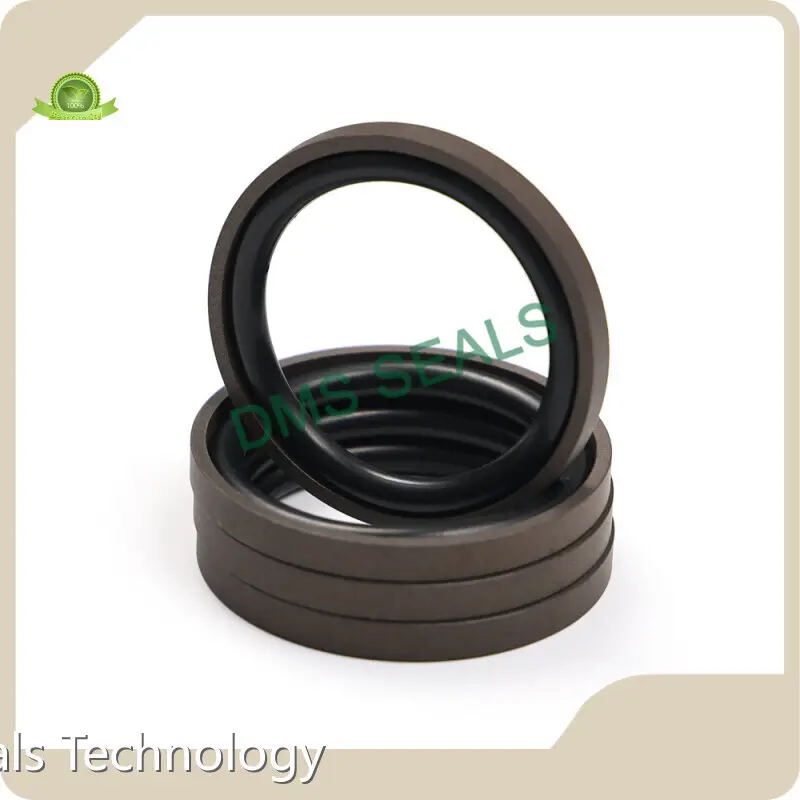

O-ring Seal -30℃+200℃top Brand
Product details of the o-ring seal
Product Information
The production process of DMS Seals o-ring seal has been standardized by using the advanced technology. The product is taken into seriously about its reliability and stability during the inspections. It is conducted by a strict and professional quality inspection team at every step. DMS Seals has customers and partners in many countries around the world.
1. Installation Recommendation
2. Application and properties
Standard bidirectional seal, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.
3. Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | hydraulic oil, flame retardant liquid, water and others. |
| NO. | SIZE | NO. | SIZE |
| 1 | DPO20*14*3.2 | 32 | DPO135*121*6.5 |
| 2 | DPO25*19*3.2 | 33 | DPO140*126*6.5 |
| 3 | DPO30*21.5*4 | 34 | DPO150*136*6.5 |
| 4 | DPO31.5*23*4 | 35 | DPO160*146*6.5 |
| 5 | DPO32*23.5*4 | 36 | DPO170*150*10 |
| 6 | DPO35*26.5*4 | 37 | DPO180*160*10 |
| 7 | DPO35.5*27*4 | 38 | DPO190*170*10 |
| 8 | DPO40*31.5*4 | 39 | DPO200*180*10 |
| 9 | DPO45*36.5*4 | 40 | DPO180*160*10 |
| 10 | DPO50*41.5*4 | 41 | DPO190*170*10 |
| 11 | DPO53*44.5*4 | 42 | DPO200*180*10 |
| 12 | DPO55*46.5*4 | 43 | DPO210*190*10 |
| 13 | DPO56*47.5*4 | 44 | DPO220*200*10 |
| 14 | DPO60*51.5*4 | 45 | DPO224*204*10 |
| 15 | DPO63*49*6.5 | 46 | DPO230*210*10 |
| 16 | DPO65*51*6.5 | 47 | DPO240*220*10 |
| 17 | DPO70*56*6.5 | 48 | DPO250*230*10 |
| 18 | DPO71*57*6.5 | 49 | DPO260*240*10 |
| 19 | DPO75*61*6.5 | 50 | DPO270*250*10 |
| 20 | DPO80*66*6.5 | 51 | DPO280*260*10 |
| 21 | DPO85*71*6.5 | 52 | DPO290*270*10 |
| 22 | DPO90*76*6.5 | 53 | DPO300*280*10 |
| 23 | DPO95*81*6.5 | 54 | DPO310*290*10 |
| 24 | DPO100*86*6.5 | 55 | DPO320*300*10 |
| 25 | DPO105*91*6.5 | 56 | DPO340*320*10 |
| 26 | DPO110*96*6.5 | 57 | DPO350*330*10 |
| 27 | DPO112*98*6.5 | 58 | DPO360*340*10 |
| 28 | DPO115*101*6.5 | 59 | DPO375*355*10 |
| 29 | DPO120*106*6.5 | 60 | DPO380*360*10 |
| 30 | DPO125*111*6.5 | 61 | DPO400*380*10 |
| 31 | DPO130*116*6.5 |
