O Ring Manufacturers 15 M/s Wholesale - DMS Seals

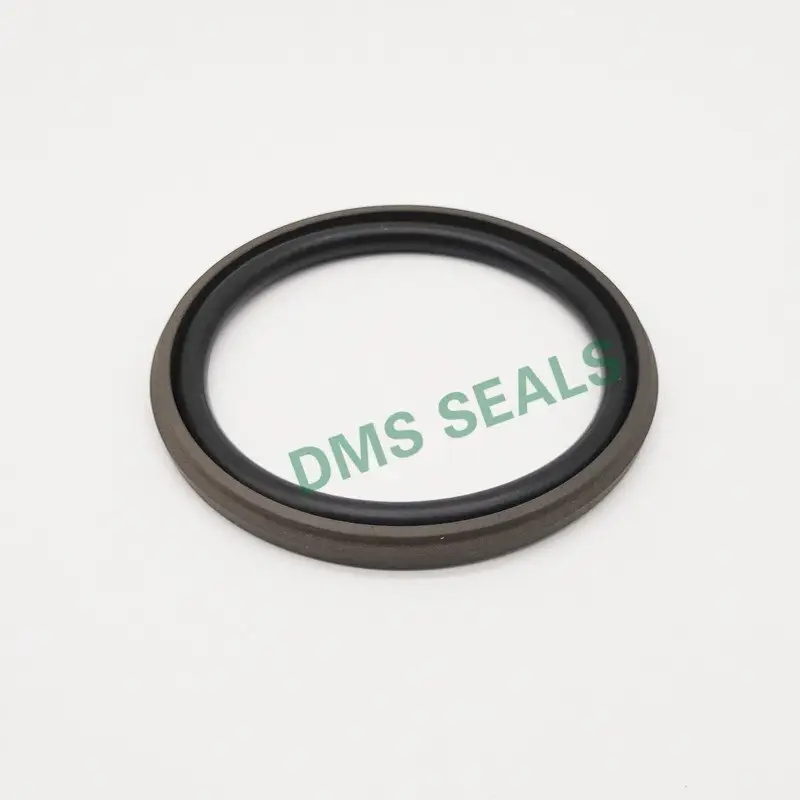

Product details of the O Ring Manufacturers
Product Introduction
The measurements of DMS Seals O Ring Manufacturers is conducted in strict circumstances. This product has good durability and is suitable for long-term use and storage. This offered product is appreciated among customers with great cost-effectiveness.
|
Bore Diameter DN H9 |
Groove Diameter |
Groove Width |
Radius |
Radial Clearance S max. |
O-Ring Cross-Section |
||||
|
Standard Application |
Light Application |
Heavy Duty Application |
d1 h9 |
L1+0.2 |
R1 |
10MPa |
20MPa |
40MPa |
d2 |
|
8-16.9 |
17-26.9 |
-- |
DN-4.9 |
2.2 |
0.4 |
0.30 |
0.20 |
0.15 |
1.78 |
|
17-26.9 |
27-59.9 |
-- |
DN-7.3 |
3.2 |
0.6 |
0.40 |
0.25 |
0.15 |
2.62 |
|
27-59.9 |
60-199.9 |
17-26.9 |
DN-10.7 |
4.2 |
1.0 |
0.50 |
0.30 |
0.20 |
3.53 |
|
60-199.9 |
200-255.9 |
27-59.9 |
DN-15.1 |
6.3 |
1.3 |
0.70 |
0.40 |
0.25 |
5.33 |
|
200-255.9 |
256-669.9 |
60-199.9 |
DN-20.5 |
8.1 |
1.8 |
0.80 |
0.60 |
0.35 |
7.00 |
|
256-669.9 |
670-999.9 |
200-669.9 |
DN-24.0 |
8.1 |
1.8 |
0.90 |
0.70 |
0.40 |
7.00 |
|
670-999.9 |
-- |
256-669.9 |
DN-28.0 |
9.5 |
2.5 |
1.00 |
0.80 |
0.60 |
8.40 |
|
-- |
1000-2000 |
-- |
DN-28.0 |
9.5 |
2.5 |
1.00 |
0.80 |
0.60 |
8.40 |
|
-- |
-- |
670-999.9 |
DN-38.0 |
13.8 |
3.0 |
1.20 |
0.90 |
0.60 |
12.00 |
|
1000-2700 |
-- |
-- |
DN-38.0 |
13.8 |
3.0 |
1.20 |
0.90 |
0.60 |
12.00 |
Application and properties
Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

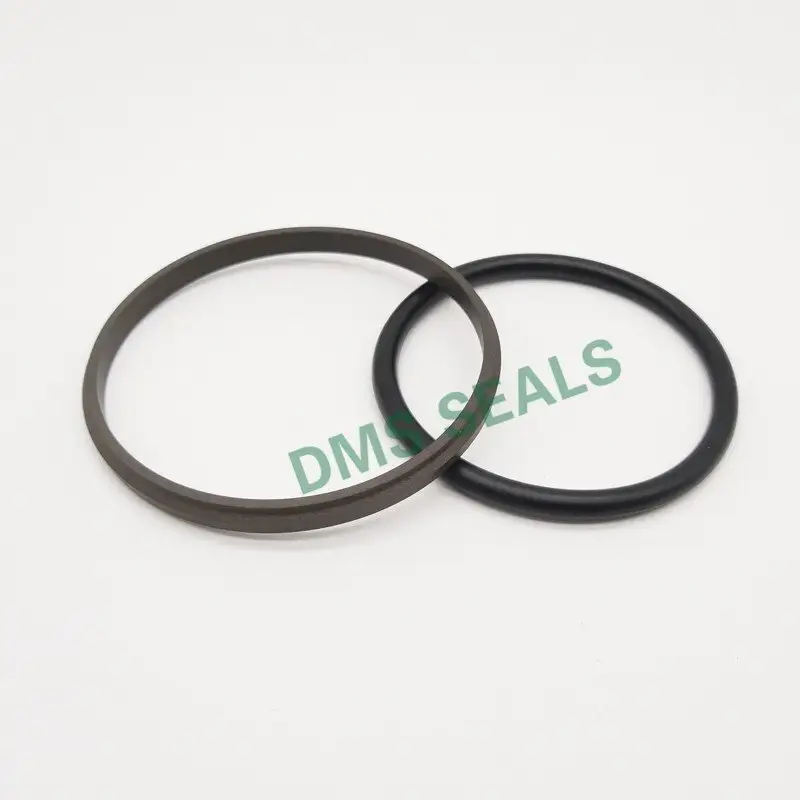

Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3-1600mm |
0-60MPa |
-45℃ +200℃ |
15 m/s |
hydraulic oil, flame retardant liquid, water and others |
|
Bore Dia. |
Groove Dia. |
Width |
Order No. |
O-ring Dimension |
|
D H9 |
d1 h9 |
L1+0.2 |
||
|
9 |
4.1 |
2.2 |
GSD9*4.1*2.2 |
3.68*1.78 |
|
15 |
10.1 |
2.2 |
GSD15*10.1*2.2 |
9.25*1.78 |
|
20 |
12.7 |
3.2 |
GSD20*12.7*3.2 |
12.37*2.62 |
|
27 |
16.3 |
4.2 |
GSD27*16.3*4.2 |
15.47*3.53 |
|
32 |
24.7 |
3.2 |
GSD32*24.7*3.2 |
23.47*2.62 |
|
36 |
25.3 |
4.2 |
GSD36*25.3*4.2 |
24*3.53 |
|
40 |
29.9 |
4.2 |
GSD40*29.3*4.2 |
28.17*3.53 |
|
50 |
39.3 |
4.2 |
GSD50*39.3*4.2 |
37.70*3.53 |
|
55 |
44.3 |
4.2 |
GSD55*44.3*4.2 |
44.04*3.53 |
|
63 |
47.9 |
6.3 |
GSD63*47.9*6.3 |
46.99*5.33 |
|
70 |
59.3 |
4.2 |
GSD70*59.3*4.2 |
56.74*3.53 |
|
80 |
64.9 |
6.3 |
GSD80*64.9*6.3 |
62.87*5.33 |
|
90 |
74.9 |
6.3 |
GSD90*74.9*6.3 |
72.39*5.33 |
|
95 |
74.5 |
8.1 |
GSD95*74.5*8.1 |
73*7.0 |
|
110 |
94.9 |
6.3 |
GSD110*94.9*6.3 |
91.44*5.33 |
Company Feature
• The high-quality talents team is an important human resource for our company. For one thing, they have rich theoretical knowledge in the principle, operation and process for the equipment. For another thing, they are rich in practical maintenance operations.
• With the reasonable price and high quality, our products are favored by domestic and foreign customers.
• Dms Seals Technology achieves the organic combination of culture, sci-tech, and talents by taking business reputation as the guarantee, by taking service as the method and taking benefit as the goal. We are dedicated to providing customers with excellent, thoughtful and efficient services.
Welcome to Dms Seals Technology. If you have any questions when selecting O-ring Seal,Oil Seal Manufacturer, feel free to consult us. We will reply you patiently.
Professional O Ring Suppliers & O Ring Manufacturers
