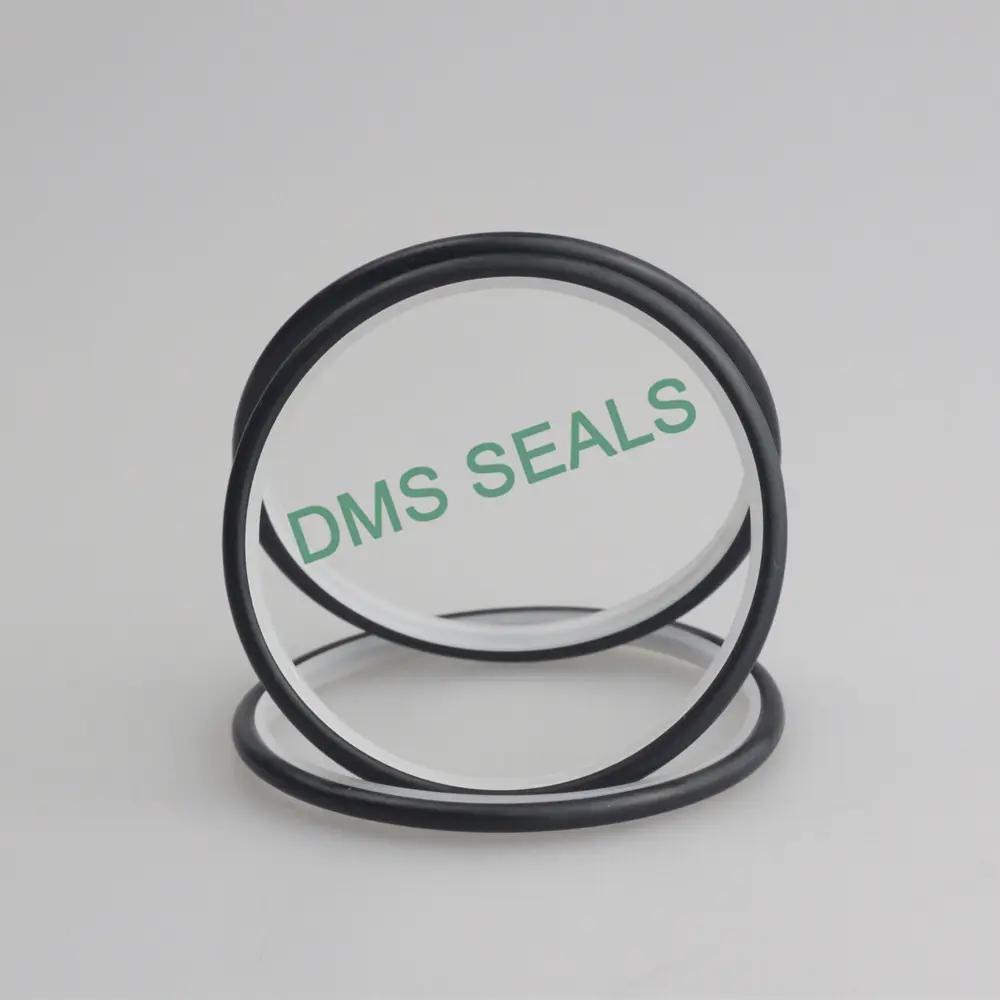

Hydraulic Rod Seals Online Quality Assurance -30℃+200℃
Product details of the hydraulic rod seals online
Product Information
A good design of hydraulic rod seals online is a icing on the cake in DMS Seals. Our highly specialized experts ensure the product to meet high level of quality. By implementing comprehensive quality control, the quality of hydraulic rod seals online is deeply replied by customers.
1. Installation Recommendation
2. Application and properties
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | general hydraulic oil,water glycol Hydraulic oil and water emulsion type hydraulic oil. |
| NO. | SIZE | NO. | SIZE | NO. | SIZE |
| 1 | SPNC3*6*2.5 | 40 | SPNC39*45*4.7 | 79 | SPNC145*155*7.5 |
| 2 | SPNC4*7*2.5 | 41 | SPNC40*46*4.7 | 80 | SPNC150*160*7.5 |
| 3 | SPNC5*8*2.5 | 42 | SPNC41*47*4.7 | 81 | SPNC150*165*11 |
| 4 | SPNC6*9*2.5 | 43 | SPNC42*48*4.7 | 82 | SPNC155*170*11 |
| 5 | SPNC7*10*2.5 | 44 | SPNC44*50*4.7 | 83 | SPNC160*175*11 |
| 6 | SPNC8*11*2.5 | 45 | SPNC45*51*4.7 | 84 | SPNC165*180*11 |
| 7 | SPNC9*12*2.5 | 46 | SPNC46*52*4.7 | 85 | SPNC170*185*11 |
| 8 | SPNC10*13*2.5 | 47 | SPNC48*54*4.7 | 86 | SPNC175*190*11 |
| 9 | SPNC10*14*3.2 | 48 | SPNC48*58*7.5 | 87 | SPNC180*195*11 |
| 10 | SPNC11*15*3.2 | 49 | SPNC49*55*4.7 | 88 | SPNC185*200*11 |
| 11 | SPNC11.2*15.2*3.2 | 50 | SPNC50*56*4.7 | 89 | SPNC190*205*11 |
| 12 | SPNC12*16*3.2 | 51 | SPNC50*60*7.5 | 90 | SPNC195*210*11 |
| 13 | SPNC12.5*16.5*3.2 | 52 | SPNC52*62*7.5 | 91 | SPNC200*215*11 |
| 14 | SPNC14*18*3.2 | 53 | SPNC53*63*7.5 | 92 | SPNC210*225*11 |
| 15 | SPNC15*19*3.2 | 54 | SPNC55*65*7.5 | 93 | SPNC220*235*11 |
| 16 | SPNC16*20*3.2 | 55 | SPNC56*66*7.5 | 94 | SPNC230*245*11 |
| 17 | SPNC18*22*3.2 | 56 | SPNC58*68*7.5 | 95 | SPNC240*255*11 |
| 18 | SPNC20*24*3.2 | 57 | SPNC60*70*7.5 | 96 | SPNC260*275*11 |
| 19 | SPNC20*24*3.2 | 58 | SPNC62*72*7.5 | 97 | SPNC280*295*11 |
| 20 | SPNC21*25*3.2 | 59 | SPNC63*73*7.5 | 98 | SPNC300*315*11 |
| 21 | SPNC22*26*3.2 | 60 | SPNC65*75*7.5 | 99 | SPNC320*335*11 |
| 22 | SPNC22*28*4.7 | 61 | SPNC67*77*7.5 | 100 | SPNC340*355*11 |
| 23 | SPNC22.4*28.4*4.7 | 62 | SPNC70*80*7.5 | 101 | SPNC375*390*11 |
| 24 | SPNC24*30*4.7 | 63 | SPNC71*81*7.5 | ||
| 25 | SPNC25*31*4.7 | 64 | SPNC75*85*7.5 | ||
| 26 | SPNC25.5*31.5*4.7 | 65 | SPNC80*90*7.5 | ||
| 27 | SPNC26*32*4.7 | 66 | SPNC85*95*7.5 | ||
| 28 | SPNC28*34*4.7 | 67 | SPNC90*100*7.5 | ||
| 29 | SPNC29*35*4.7 | 68 | SPNC95*105*7.5 | ||
| 30 | SPNC29.5*35.5*4.7 | 69 | SPNC100*110*7.5 | ||
| 31 | SPNC30*36*4.7 | 70 | SPNC105*115*7.5 | ||
| 32 | SPNC31*37*4.7 | 71 | SPNC110*120*7.5 | ||
| 33 | SPNC31.5*37.5*4.7 | 72 | SPNC115*125*7.5 | ||
| 34 | SPNC32*38*4.7 | 73 | SPNC120*130*7.5 | ||
| 35 | SPNC34*40*4.7 | 74 | SPNC125*135*7.5 | ||
| 36 | SPNC35*41*4.7 | 75 | SPNC130*140*7.5 | ||
| 37 | SPNC35.5*41.5*4.7 | 76 | SPNC132*142*7.5 | ||
| 38 | SPNC36*42*4.7 | 77 | SPNC135*145*7.5 | ||
| 39 | SPNC38*44*4.7 | 78 | SPNC140*150*7.5 |
