DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seals Rotary Seals Catalogue Rotary Seals Catalogue Supply
Company Advantages
· DMS Seals rotary seals catalogue has attracting designs with consistency.
· rotary seals catalogue meets the future trends of diversified raw material, ecological processing and functional products.
· Dms Seals Technology Co.,limited's technical security and R&D capabilities are first class in the industry.

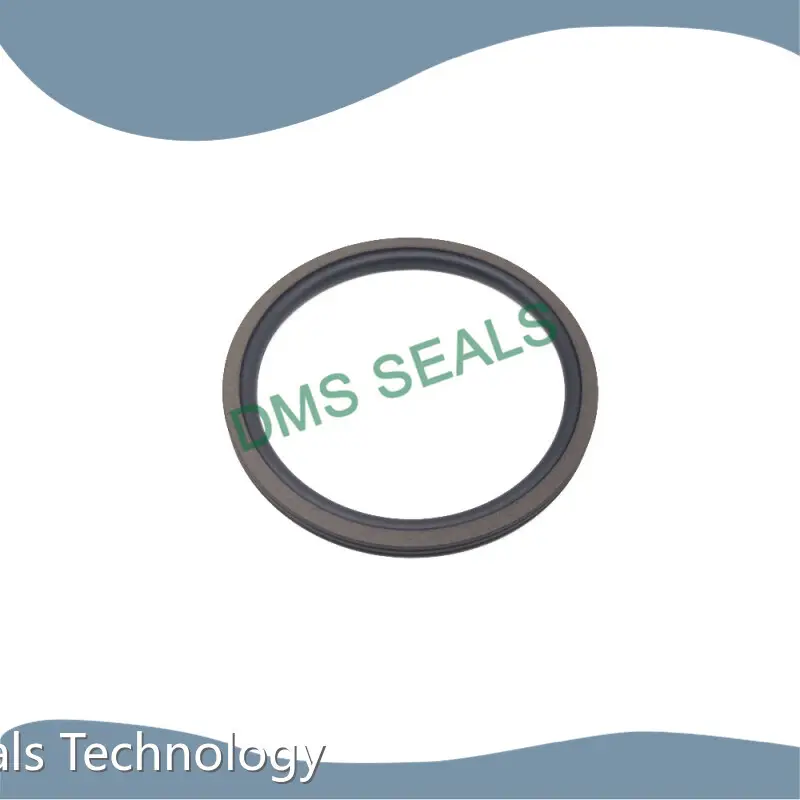

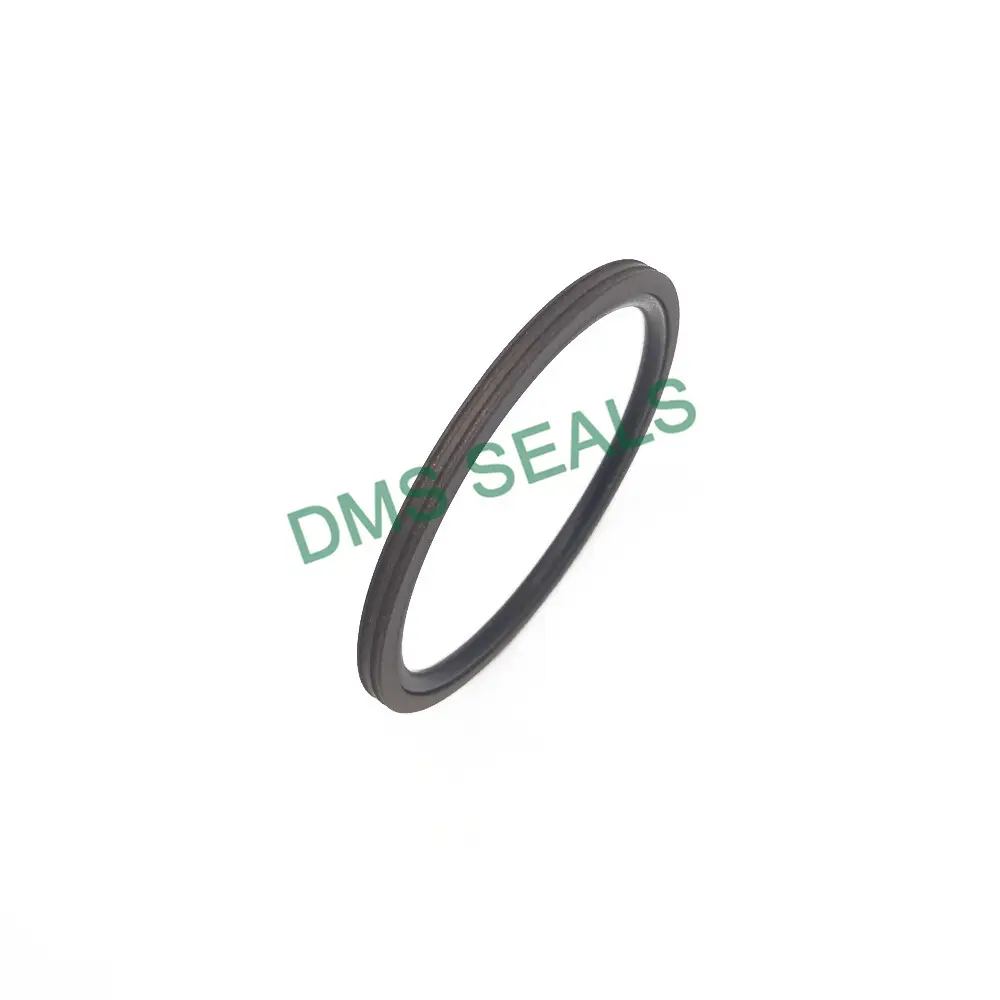

1. Performance and use
It is suitable for rods, shafts, pins, rotary joints, etc. that rotate in the circumferential direction or angle. It is a two-way rotating sealing ring that can withstand pressure on both sides or alternating pressure. It is used in construction machinery, manipulators and automobiles, etc. industrial field,
Small friction, no sticking phenomenon, smooth start, no crawling even at low speed.
The groove is simple and the cross-sectional size is small
Good wear resistance, dimensionally stable
Very good compatibility with hydraulic media
High temperature resistance, good extrusion resistance
While rotating, it can withstand certain reciprocating motion.
2. Materials

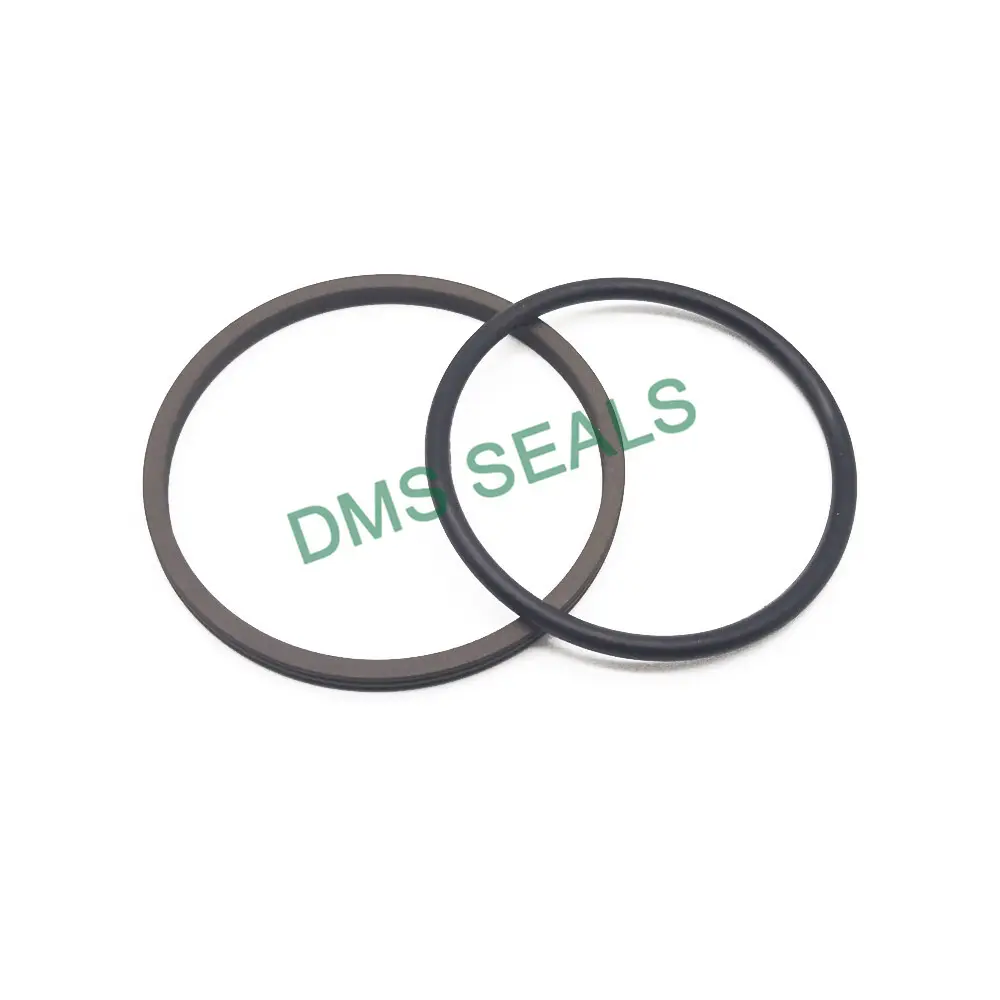

Sealing slip ring: filled with polytetrafluoroethylene (PTFE). According to different working conditions and sealing requirements, different filling materials and filling processes can be selected, please contact us for details.
O-ring: NBR (nitrile rubber) or FKM (fluororubber), determined according to specific working conditions, the default is NBR, for special working conditions, please inquire and explain before ordering.
3. Labeling method
Mark with the size of the installation groove. The marking method is:
GNS "nominal diameter size D" × "groove bottom diameter d" × "groove width L"
4. Precautions:
Ⅰ. Pay attention to the external dust protection. If necessary, please install the corresponding dust ring.
Ⅱ, There may be one or two sealing grooves, which are designed according to working conditions and user requirements.
Ⅲ, If the installation space permits, please choose a seal with a larger cross-section to increase the seal life and reliability, but the installation will be more difficult.
| NO. | SIZE | NO. | SIZE |
| 1 | GNS20*15.1*2.2 | 33 | GNS125*114*4.2 |
| 2 | GNS22*17.1*2.2 | 34 | GNS130*119*4.2 |
| 3 | GNS25*20.1*2.2 | 35 | GNS135*119.5*6.3 |
| 4 | GNS28*23.1*2.2 | 36 | GNS140*124.5*6.3 |
| 5 | GNS30*25.1*2.2 | 37 | GNS150*134.5*6.3 |
| 6 | GNS32*27.1*2.2 | 38 | GNS160*144.5*6.3 |
| 7 | GNS35*30.1*2.2 | 39 | GNS170*154.5*6.3 |
| 8 | GNS36*31.1*2.2 | 40 | GNS175*159.5*6.3 |
| 9 | GNS38*33.1*2.2 | 41 | GNS180*164.5*6.3 |
| 10 | GNS40*32.5*3.2 | 42 | GNS190*174.5*6.3 |
| 11 | GNS42*34.5*3.2 | 43 | GNS200*184.5*6.3 |
| 12 | GNS45*37.5*3.2 | 44 | GNS210*194.5*6.3 |
| 13 | GNS48*40.5*3.2 | 45 | GNS220*204.5*6.3 |
| 14 | GNS50*42.5*3.2 | 46 | GNS230*214.5*6.3 |
| 15 | GNS52*44.5*3.2 | 47 | GNS240*224.5*6.3 |
| 16 | GNS53*45.5*3.2 | 48 | GNS250*234.5*6.3 |
| 17 | GNS55*47.5*3.2 | 49 | GNS280*264.5*6.3 |
| 18 | GNS60*52.5*3.2 | 50 | GNS300*284.5*6.3 |
| 19 | GNS63*55.5*3.2 | 51 | GNS310*294.5*6.3 |
| 20 | GNS65*57.5*3.2 | 52 | GNS320*304.5*6.3 |
| 21 | GNS70*62.5*3.2 | 53 | GNS350*329*8.1 |
| 22 | GNS75*67.5*3.2 | 54 | GNS360*339*8.1 |
| 23 | GNS80*69*4.2 | 55 | GNS400*379*8.1 |
| 24 | GNS85*74*4.2 | 56 | GNS420*399*8.1 |
| 25 | GNS90*79*4.2 | 57 | GNS450*429*8.1 |
| 26 | GNS95*84*4.2 | 58 | GNS480*459*8.1 |
| 27 | GNS100*89*4.2 | 59 | GNS500*479*8.1 |
| 28 | GNS102*91*4.2 | 60 | GNS510*489*8.1 |
| 29 | GNS105*94*4.2 | 61 | GNS520*499*8.1 |
| 30 | GNS110*99*4.2 | 62 | GNS550*529*8.1 |
| 31 | GNS115*104*4.2 | 63 | GNS600*579*8.1 |
| 32 | GNS120*109*4.2 | 64 | GNS650*629*8.1 |
Company Features
· As a reliable manufacturer and provider, Dms Seals Technology Co.,limited has won the trust of the rotary seals catalogue market.
· Our workshop has a clear and well-defined production management system. This system has benefited us in many aspects, such as assurance on the quality of the raw materials, early identification of problems that might occur, and avoidance of additional production costs. The workshop has been implementing a rigorous production management and control system. This system has contributed a lot in helping us in the anticipation and handling of potential problems and avoidance of unproductive time throughout production.
· We are active in business sustainable development. We will uphold business ethics throughout our production, such as reducing water consumption by recycling reusable water.
Product Details
Dms Seals Technology's rotary seals catalogue is perfect in every detail.
Application of the Product
Dms Seals Technology's rotary seals catalogue can be used in multiple industries and fields.
Dms Seals Technology insists on providing customers with reasonable solutions according to their actual needs.
Product Comparison
Compared with other similar products, our rotary seals catalogue has the following advantages.
