Product details of the rotary seal ring
Product Introduction
DMS Seals rotary seal ring is developed in our endeavor to provide the highest level of quality. The performance and quality of the product have been widely recognized among users. Dms Seals Technology Co.,limited secures our customers to know the detailed information about our products.

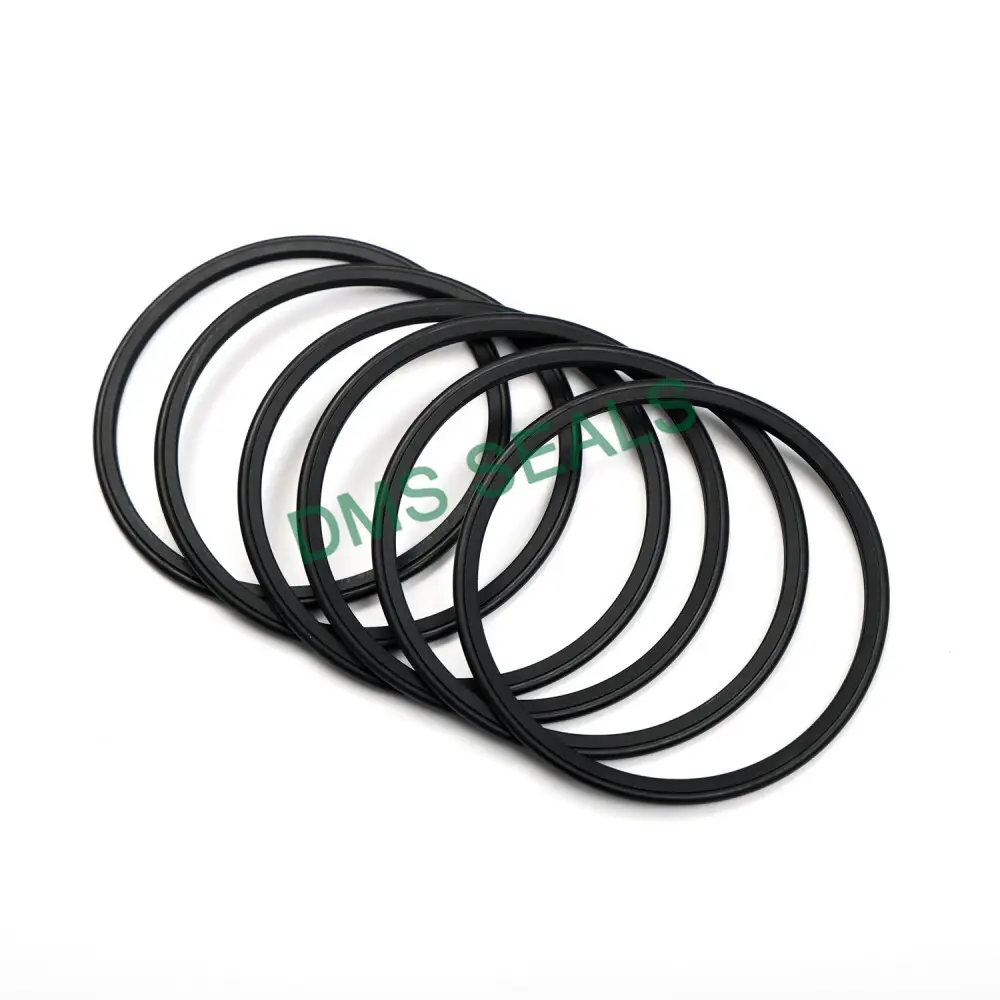

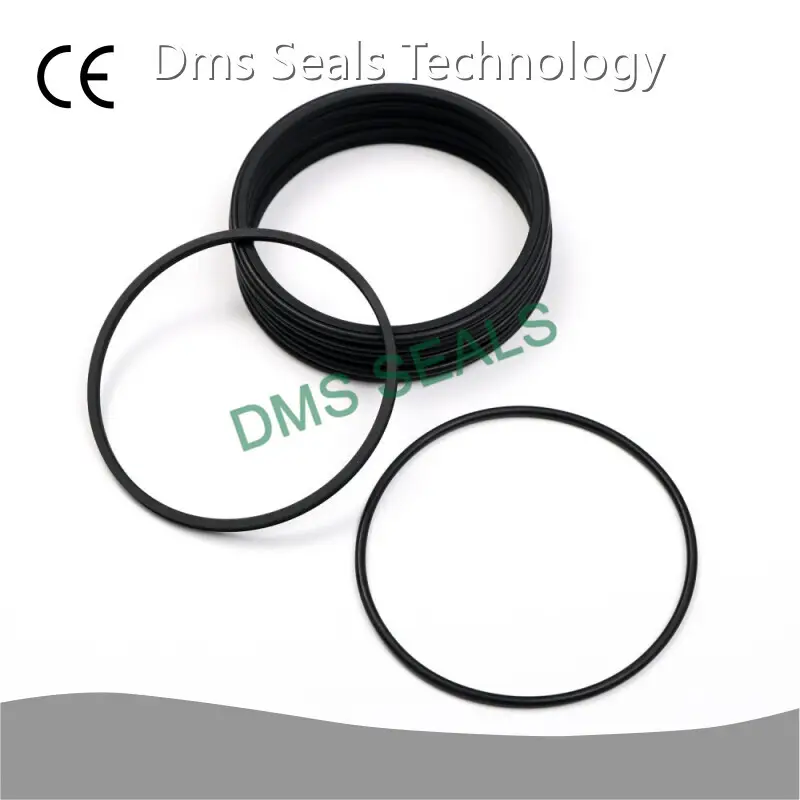

The GRS consists of a wear-resistant, low-friction filled PTFE slip ring and an O-ring rubber seal. O-rings provide preload to compensate for wear on the sliding ring. It has a bidirectional sealing effect and is suitable for high-pressure, low-speed rotary shaft sealing in hydraulic equipment.
| Item | Specifications |
| Product Name | Rotary Square Ring for Shaft Grs Seal Rotating Glyd Ring |
| Products Category | Hydraulic seals, Oil seals, O-Rings |
| Material | PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc. |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Sizes | Standard and customize |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
| NO. | SIZE | NO. | SIZE |
| 1 | GRS20*27.5*3.2 | 32 | GRS120*131*4.2 |
| 2 | GRS22*29.5*3.2 | 33 | GRS125*136*4.2 |
| 3 | GRS25*32.5*3.2 | 34 | GRS130*141*4.2 |
| 4 | GRS26*33.5*3.2 | 35 | GRS135*146*4.2 |
| 5 | GRS28*35.5*3.2 | 36 | GRS140*151*4.2 |
| 6 | GRS30*37.5*3.2 | 37 | GRS145*156*4.2 |
| 7 | GRS32*39.5*3.2 | 38 | GRS150*161*4.2 |
| 8 | GRS35*42.5*3.2 | 39 | GRS155*166*4.2 |
| 9 | GRS36*43.5*3.2 | 40 | GRS160*171*4.2 |
| 10 | GRS40*51*4.2 | 41 | GRS170*181*4.2 |
| 11 | GRS42*53*4.2 | 42 | GRS180*191*4.2 |
| 12 | GRS44*55*4.2 | 43 | GRS190*201*4.2 |
| 13 | GRS45*56*4.2 | 44 | GRS200*215.5*6.3 |
| 14 | GRS48*59*4.2 | 45 | GRS210*225.5*6.3 |
| 15 | GRS50*61*4.2 | 46 | GRS220*235.5*6.3 |
| 16 | GRS52*63*4.2 | 47 | GRS240*255.5*6.3 |
| 17 | GRS55*66*4.2 | 48 | GRS250*265.5*6.3 |
| 18 | GRS56*67*4.2 | 49 | GRS280*301*8.1 |
| 19 | GRS60*71*4.2 | 50 | GRS300*321*8.1 |
| 20 | GRS63*74*4.2 | 51 | GRS320*341*8.1 |
| 21 | GRS65*76*4.2 | 52 | GRS350*371*8.1 |
| 22 | GRS70*81*4.2 | 53 | GRS360*381*8.1 |
| 23 | GRS75*86*4.2 | 54 | GRS400*421*8.1 |
| 24 | GRS80*91*4.2 | 55 | GRS420*441*8.1 |
| 25 | GRS85*96*4.2 | 56 | GRS450*471*8.1 |
| 26 | GRS90*101*4.2 | 57 | GRS480*501*8.1 |
| 27 | GRS95*106*4.2 | 58 | GRS500*521*8.1 |
| 28 | GRS100*111*4.2 | 59 | GRS520*541*8.1 |
| 29 | GRS105*116*4.2 | 60 | GRS530*551*8.1 |
| 30 | GRS110*121*4.2 | 61 | GRS550*571*8.1 |
| 31 | GRS115*126*4.2 | 62 | GRS600*621*8.1 |
