DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seals Hydraulic Rod Seals Hydraulic OilSolution Provider
Company Advantages
· The quality level of DMS Seals hydraulic rod seals is up to international standard.
· Because of its excellent characteristics, hydraulic rod seals has gotten much wider application.
· The superb quality of hydraulic rod seals in Dms Seals Technology Co.,limited is widely known by customers.

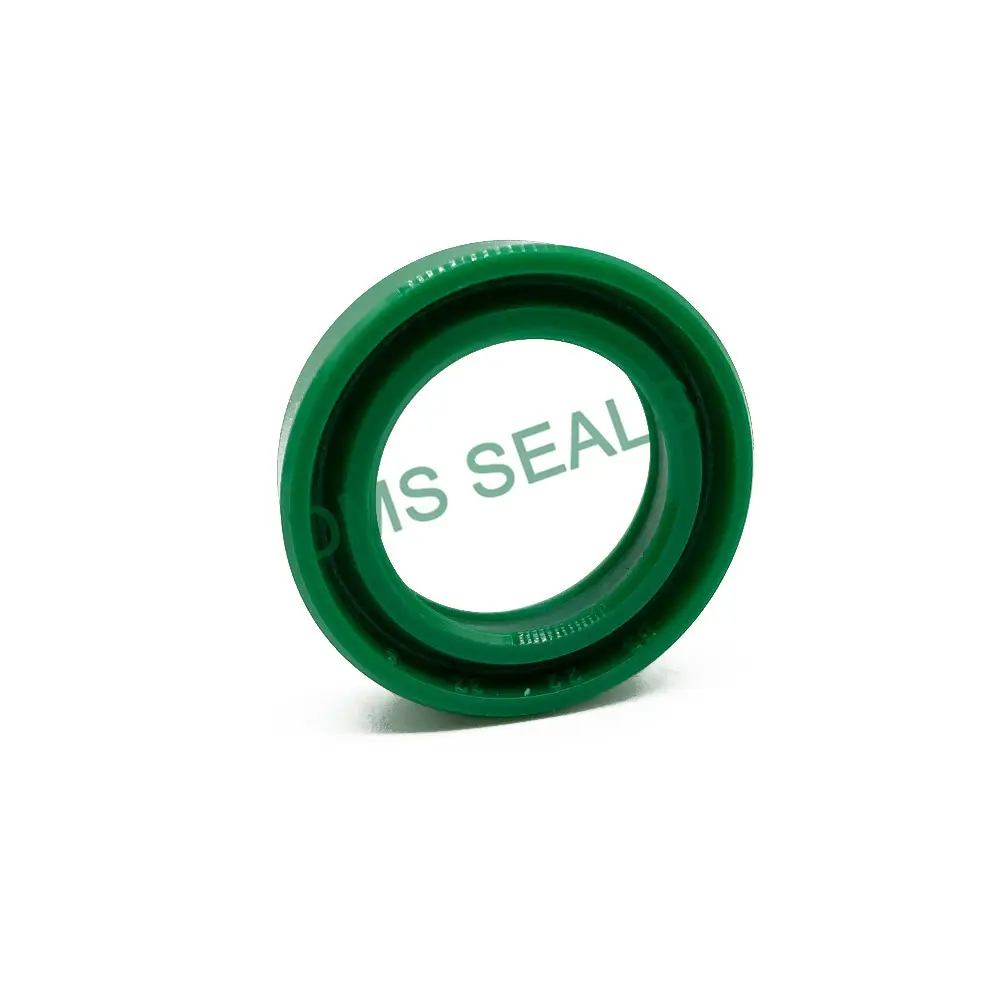

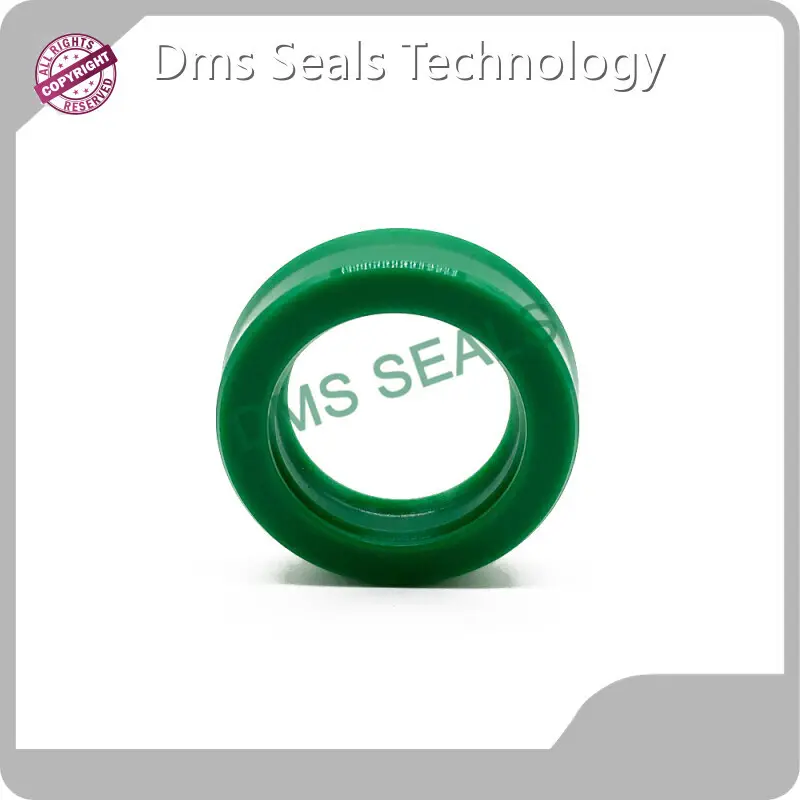

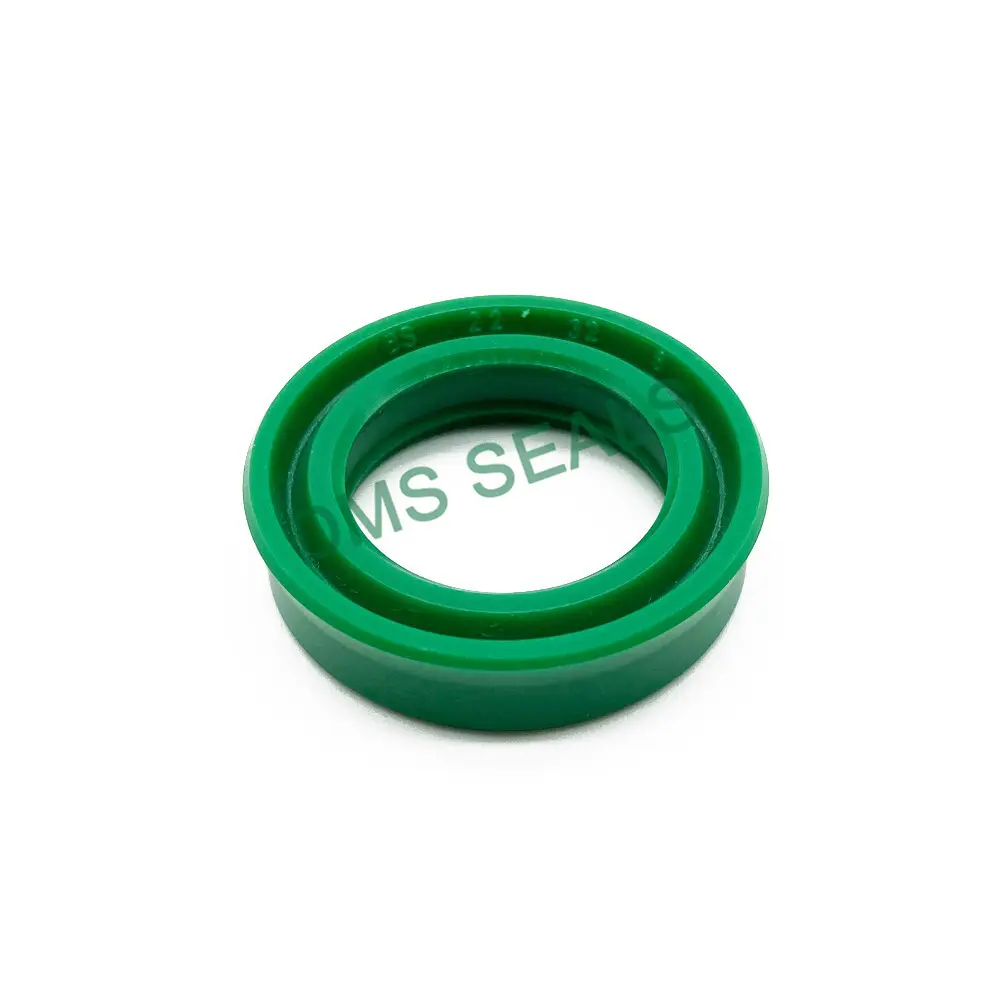

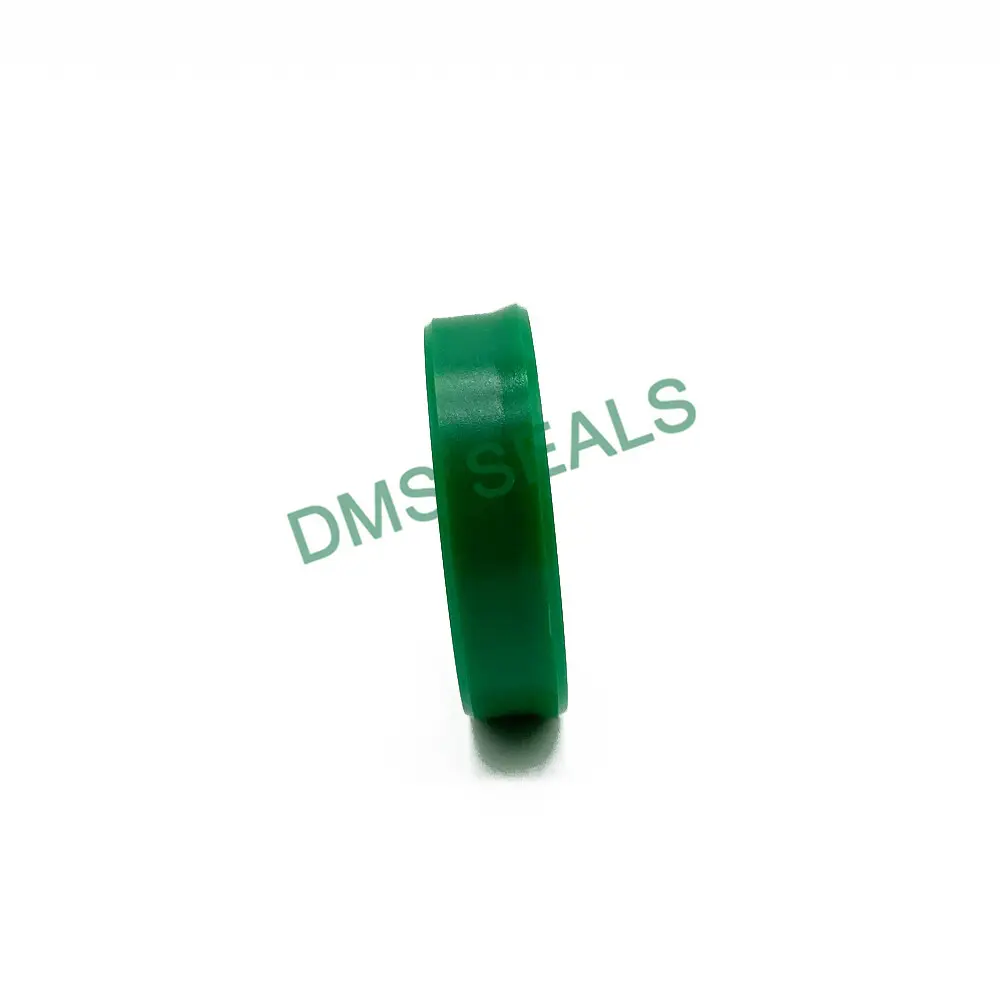

BS type piston rod seal is a lip seal with two sealing lips and a tight fit at the outer diameter. Due to the extra lubricant between the two lips, dry friction and wear are greatly prevented. Improve its sealing performance.Adequate lubrication due to the pressure medium of the sealing lip quality inspection，Improved sealing performance under zero pressure.
BS is primarily designed to seal piston rods and plungers in heavy duty applications in mobile and stationary hydraulic systems.It is the most critical seal on any type of fluid power equipment preventing leakage of fluid from within the cylinder to the outside.
| Advantage |
1.Good wear resistance 2.Little denaturation after compression 3.Impact and extrusion resistance 4.Adapt to harsh working conditions 5. Easy to install |
| NO. | SIZE | NO. | SIZE | NO. | SIZE | NO. | SIZE |
| 1 | BS6*12*5 | 80 | BS32*42*10 | 159 | BS60*80*12 | 238 | BS100*130*15 |
| 2 | BS8*14*6 | 81 | BS32*45*10 | 160 | BS63*71*8 | 239 | BS105*113*11.5 |
| 3 | BS8*16*5.7 | 82 | BS32*47*10 | 161 | BS63*73*6 | 240 | BS105*120*9 |
| 4 | BS8*16*6 | 83 | BS34*45*6 | 162 | BS63*73*11.8 | 241 | BS105*120*10 |
| 5 | BS9*16*5.7 | 84 | BS35*43*4.7 | 163 | BS63*73*12 | 242 | BS105*125*12 |
| 6 | BS10*16*4.5 | 85 | BS35*43*5.7 | 164 | BS63*73*13 | 243 | BS105*125*15 |
| 7 | BS10*17*5.7 | 86 | BS35*43*7* | 165 | BS63*75*11.4 | 244 | BS105*125*16 |
| 8 | BS10*18*5.7 | 87 | BS35*45*6 | 166 | BS63*78*10 | 245 | BS107*115*11.5 |
| 9 | BS10*18*6 | 88 | BS35*45*7 | 167 | BS63*78*11.4 | 246 | BS110*118*10.5 |
| 10 | BS10*18*8 | 89 | BS35*45*7.3 | 168 | BS63.5*76.2*9.53 | 247 | BS110*125*9 |
| 11 | BS10*20*5 | 90 | BS35*45*7.5 | 169 | BS64*72*9.1 | 248 | BS110*125*9.6 |
| 12 | BS10*20*6 | 91 | BS35*45*10 | 170 | BS65*73*11.5 | 249 | BS110*125*12* |
| 13 | BS11.2*19.2*5 | 92 | BS35*50*10 | 171 | BS65*75*6 | 250 | BS110*125*14.5 |
| 14 | BS12*18*6 | 93 | BS36*43*7.3 | 172 | BS65*75*7 | 251 | BS110*130*10 |
| 15 | BS12*20*5 | 94 | BS36*46*7.3 | 173 | BS65*75*12 | 252 | BS110*130*12 |
| 16 | BS12*20*6 | 95 | BS36*51*10 | 174 | BS65*78*10 | 253 | BS110*130*14.5 |
| 17 | BS12.5*22.5*8 | 96 | BS37*47*7.3 | 175 | BS65*80*9 | 254 | BS115*130*9 |
| 18 | BS12.7*19.05*4.5 | 97 | BS37*47*10 | 176 | BS65*85*11.4 | 255 | BS115*130*10 |
| 19 | BS14*20*5.7 | 98 | BS38*48*6 | 177 | BS67*77*6 | 256 | BS115*130*12 |
| 20 | BS14*22*5 | 99 | BS38.1*47.63*6.35 | 178 | BS68*78*12 | 257 | BS115*135*12 |
| 21 | BS14*22*5.7 | 100 | BS40*48*8 | 179 | BS70*78*8 | 258 | BS115*135*16 |
| 22 | BS14*24*7.3 | 101 | BS40*50*6 | 180 | BS70*80*6 | 259 | BS118*126*13 |
| 23 | BS14*24*8 | 102 | BS40*50*7 | 181 | BS70*80*7 | 260 | BS120*130*11.4 |
| 24 | BS15*25*8 | 103 | BS40*50*7.3 | 182 | BS70*80*10 | 261 | BS120*130*14 |
| 25 | BS16*22*5 | 104 | BS40*50*8* | 183 | BS70*80*11.5 | 262 | BS120*130*17 |
| 26 | BS16*24*5 | 105 | BS40*50*10 | 184 | BS70*80*12 | 263 | BS120*135*9 |
| 27 | BS18*24*5 | 106 | BS40*52*8 | 185 | BS70*83*10 | 264 | BS120*135*14.5 |
| 28 | BS18*24*8 | 107 | BS40*55*10* | 186 | BS70*85*9 | 265 | BS120*140*12 |
| 29 | BS18*25*5 | 108 | BS40*55*11.4 | 187 | BS70*85*10 | 266 | BS120*140*15 |
| 30 | BS18*25*8 | 109 | BS43*53*7.3 | 188 | BS70*85*11.4 | 267 | BS125*133*11.5 |
| 31 | BS18*26*5 | 110 | BS45*53*5.6 | 189 | BS70*85*12.5 | 268 | BS125*135*9 |
| 32 | BS18*28*8 | 111 | BS45*55*6 | 190 | BS75*85*6 | 269 | BS125*135*11.4 |
| 33 | BS19*28*7 | 112 | BS45*55*7 | 191 | BS75*85*7 | 270 | BS125*145*12 |
| 34 | BS20*26*5 | 113 | BS45*55*7.3 | 192 | BS75*85*11.5 | 271 | BS125*145*15 |
| 35 | BS20*28*5 | 114 | BS45*55*8 | 193 | BS75*88*10 | 272 | BS130*145*9 |
| 36 | BS20*28*5.7 | 115 | BS45*55*10 | 194 | BS75*90*9 | 273 | BS130*145*12 |
| 37 | BS20*28*6 | 116 | BS45*56*7 | 195 | BS75*90*9.5 | 274 | BS130*150*15 |
| 38 | BS20*28.3*5 | 117 | BS45*57*9.5 | 196 | BS75*90*10 | 275 | BS135*143*10.5 |
| 39 | BS20*30*6 | 118 | BS45*60*9 | 197 | BS75*90*12 | 276 | BS140*155*9.6 |
| 40 | BS20*30*7.3 | 119 | BS45*60*10 | 198 | BS75*95*12 | 277 | BS140*160*12 |
| 41 | BS20*30*8 | 120 | BS45*60*11.4 | 199 | BS78*86*11.5 | 278 | BS140*160*14.5 |
| 42 | BS22*28*6 | 121 | BS46*56*10 | 200 | BS80*90*6 | 279 | BS145*155*11.4 |
| 43 | BS22*30*5 | 122 | BS48*56*11.5 | 201 | BS80*90*8 | 280 | BS150*160*9 |
| 44 | BS22*30*5.7 | 123 | BS48*58*6 | 202 | BS80*90*12 | 281 | BS150*160*11.4 |
| 45 | BS22*32*7.3 | 124 | BS50*58*8 | 203 | BS80*93*10 | 282 | BS150*165*9 |
| 46 | BS22*32*8* | 125 | BS50*58*10 | 204 | BS80*95*9 | 283 | BS150*170*15 |
| 47 | BS22.4*30*5 | 126 | BS50*60*6 | 205 | BS80*95*10 | 284 | BS160*170*10.5 |
| 48 | BS25*31*8 | 127 | BS50*60*7 | 206 | BS80*95*11.4 | 285 | BS160*180*12 |
| 49 | BS25*32*7 | 128 | BS50*60*7.3 | 207 | BS80*95*12 | 286 | BS160*180*18.5 |
| 50 | BS25*33*5 | 129 | BS50*60*10 | 208 | BS80*100*12 | 287 | BS160*185*18.2 |
| 51 | BS25*33*6 | 130 | BS50*63*6 | 209 | BS85*93*11.5 | 288 | BS167*175*11.5 |
| 52 | BS25*35*6 | 131 | BS50*63*8 | 210 | BS85*95*9 | 289 | BS170*200*18 |
| 53 | BS25*35*7 | 132 | BS50*65*9 | 211 | BS85*100*9 | 290 | BS171*179*13 |
| 54 | BS25*35*7.3 | 133 | BS50*65*10 | 212 | BS85*100*10 | 291 | BS175*185*11.4 |
| 55 | BS25*35*8 | 134 | BS50*65*11.4 | 213 | BS85*100*12 | 292 | BS176*186*12 |
| 56 | BS25*45*10 | 135 | BS52*62*10 | 214 | BS85*105*12 | 293 | BS177.7*198*9.73 |
| 57 | BS25.4*31.75*6.3 | 136 | BS53*63*6 | 215 | BS90*98*11.5 | 294 | BS180*188*11.5 |
| 58 | BS26*36*10 | 137 | BS55*63*10 | 216 | BS90*100*8 | 295 | BS180*190*9 |
| 59 | BS28*34*8 | 138 | BS55*65*6 | 217 | BS90*100*10.5 | 296 | BS180*190*11.4 |
| 60 | BS28*35.5*5 | 139 | BS55*65*8 | 218 | BS90*100*12 | 297 | BS180*197*9.5 |
| 61 | BS28*35.5*5.7 | 140 | BS55*65*10 | 219 | BS90*105*9 | 298 | BS180*200*12 |
| 62 | BS28*36*5.7 | 141 | BS55*65*11.4 | 220 | BS90*105*10 | 299 | BS180*200*15 |
| 63 | BS28*36*6 | 142 | BS55*65*12 | 221 | BS90*105*11.4 | 300 | BS190*210*12 |
| 64 | BS28*36*7 | 143 | BS55*67*10 | 222 | BS92*107*11.4 | 301 | BS190*210*16 |
| 65 | BS28*36*10 | 144 | BS55*68*10 | 223 | BS95*105*11.4 | 302 | BS193*201*11.5 |
| 66 | BS28*38*7.3 | 145 | BS55*70*11.4 | 224 | BS95*110*9 | 303 | BS200*211*12 |
| 67 | BS28*40*8 | 146 | BS55*70*12 | 225 | BS95*110*10 | 304 | BS200*220*12 |
| 68 | BS28*43*10 | 147 | BS56*71*11.4 | 226 | BS95*115*12 | 305 | BS200*225*18.2 |
| 69 | BS30*37*6 | 148 | BS60*68*13 | 227 | BS97*105*13 | 306 | BS209.6*226.8*9.6 |
| 70 | BS30*38*5.7 | 149 | BS60*70*6 | 228 | BS100*108*12 | 307 | BS210*230*12 |
| 71 | BS30*38*6 | 150 | BS60*70*7.5 | 229 | BS100*110*9 | 308 | BS210*235*18 |
| 72 | BS30*40*6 | 151 | BS60*70*10 | 230 | BS100*110*10 | 309 | BS210*240*18 |
| 73 | BS30*40*7 | 152 | BS60*71*7 | 231 | BS100*110*11.4 | 310 | BS220*245*16 |
| 74 | BS30*40*10 | 153 | BS60*73*10 | 232 | BS100*115*8 | 311 | BS228.6*245.6*9 |
| 75 | BS30*45*10 | 154 | BS60*75*9 | 233 | BS100*115*9 | 312 | BS230*250*17 |
| 76 | BS31.75*41.28*6.35 | 155 | BS60*75*10 | 234 | BS100*115*10 | 313 | BS266.7*283.8*9.6 |
| 77 | BS32*42*6 | 156 | BS60*75*11.4 | 235 | BS100*115*12 | 314 | BS280*310*18 |
| 78 | BS32*42*7 | 157 | BS60*75*12 | 236 | BS100*120*12 | 315 | BS300*330*18 |
| 79 | BS32*42*7.3 | 158 | BS60*75*13 | 237 | BS100*120*14.5 | 316 | BS450*474*24 |
Company Features
· Dms Seals Technology Co.,limited is a company that keeps fighting in the hydraulic rod seals industry.
· Our operation director carries out his/her job role in manufacturing and administration. He/She worked tirelessly to introduce the product and stock control system, which has transformed our ability to leverage our supply chain risk and buy better. Our QC team's dedicated work promotes our business. They conduct strict quality control process to check each product using the latest in testing equipment. We are supported by professional teams. Combining with our unique technologies and processes, our exceptional in-house design, science, and engineering teams can create market-ready products designed for our customers.
· Commitment to excellence is our goal and what we pursue. We encourage every one of our employees to improve themselves and cultivate professional knowledge using our company's resources. Therefore, we are competent to provide targeted services to clients. Inquire now!
Product Comparison
We demand ourselves in the production of hydraulic rod seals with stricter standards. Based on this, we ensure that our products have advantages over the general products in the following aspects.
