DMS Seals Hydraulic Piston Seals Hydraulic Piston Seals Factory Price

1. Performance and use

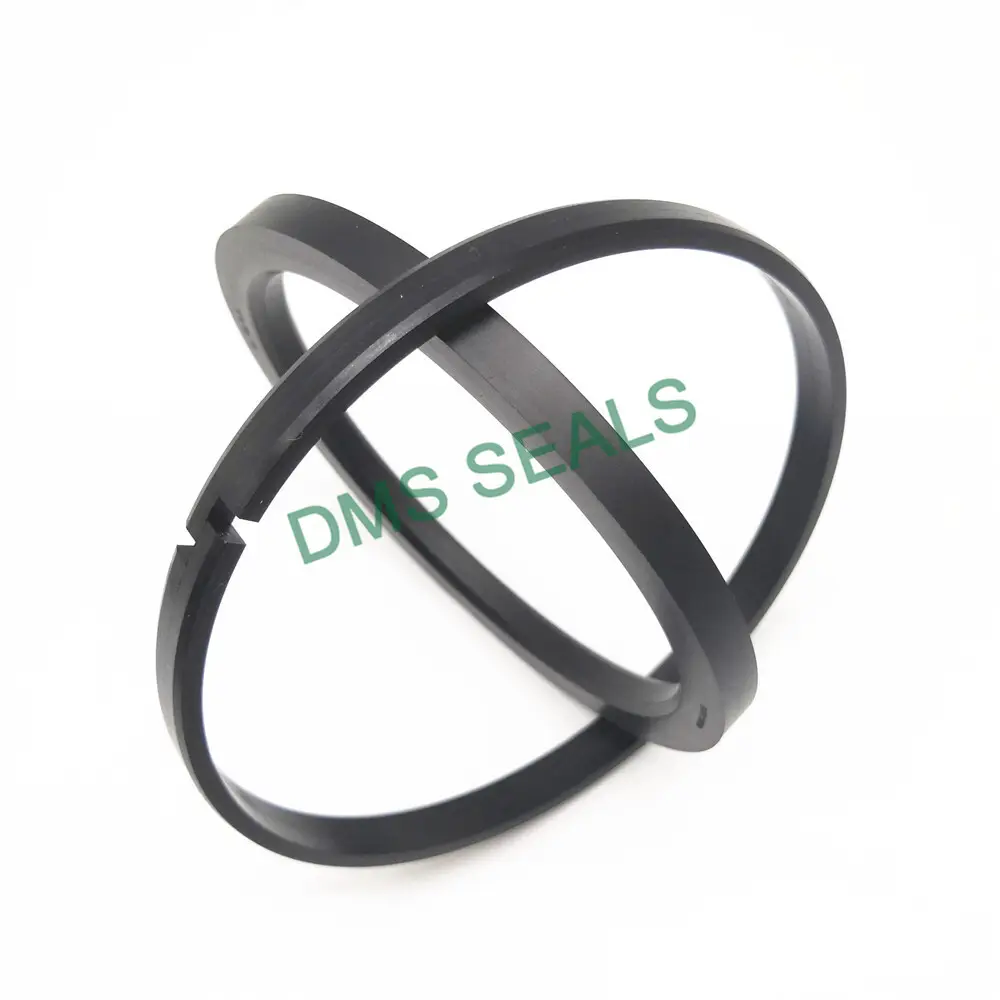

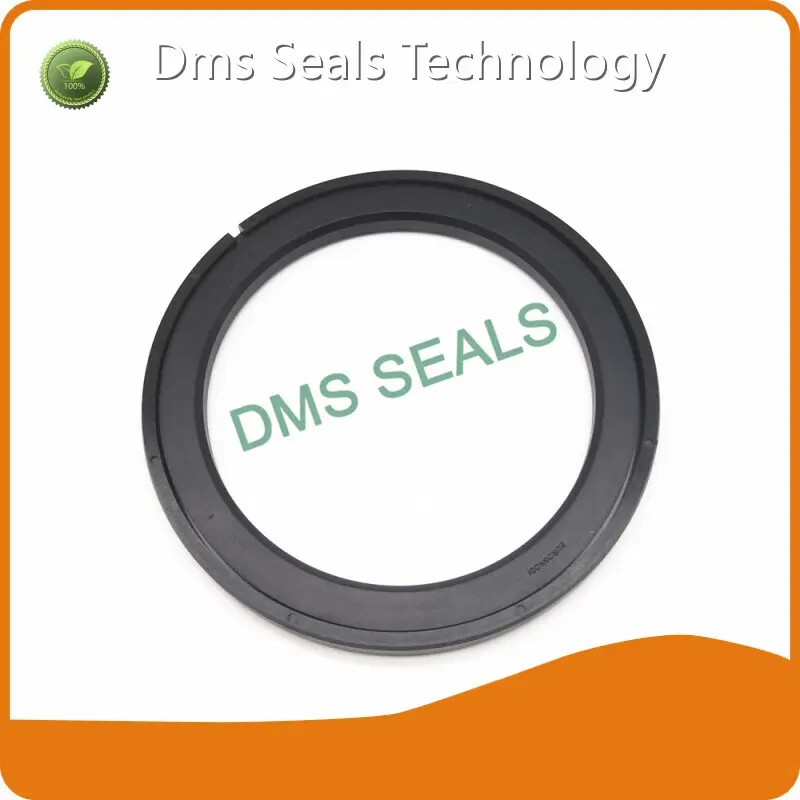

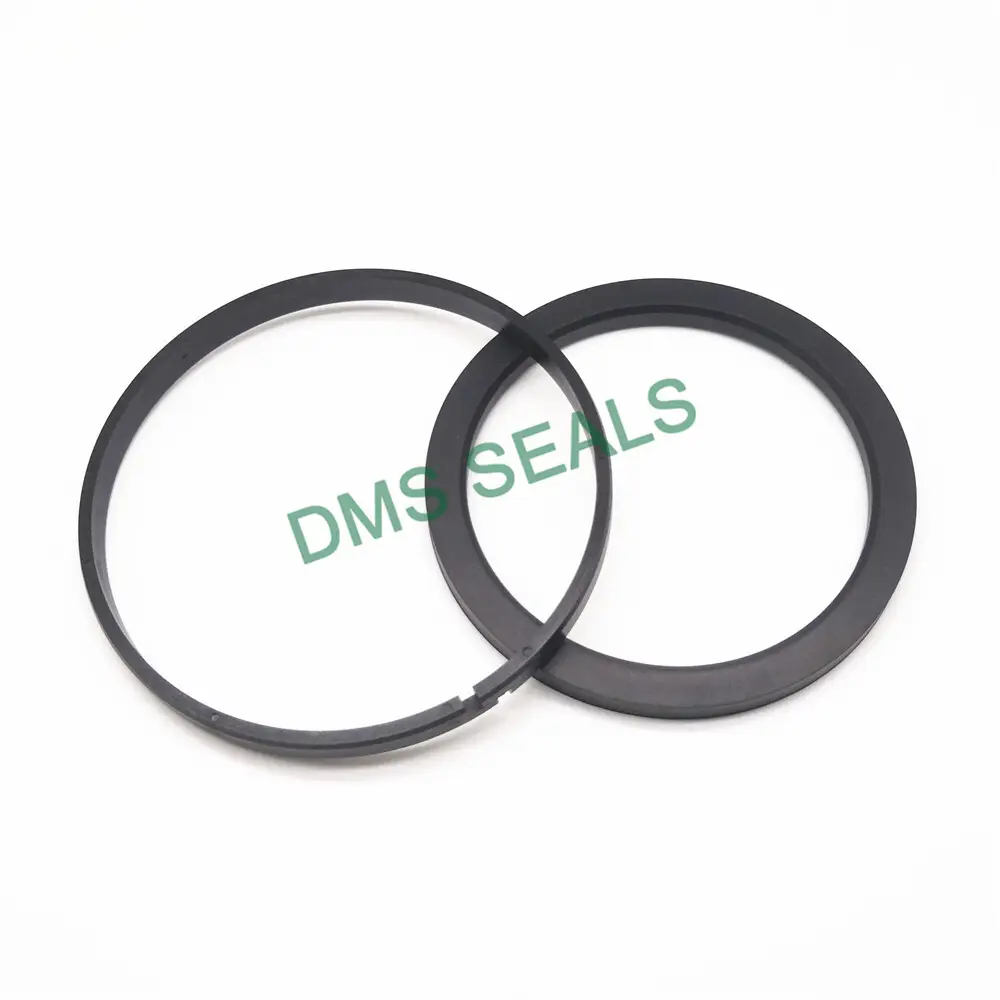

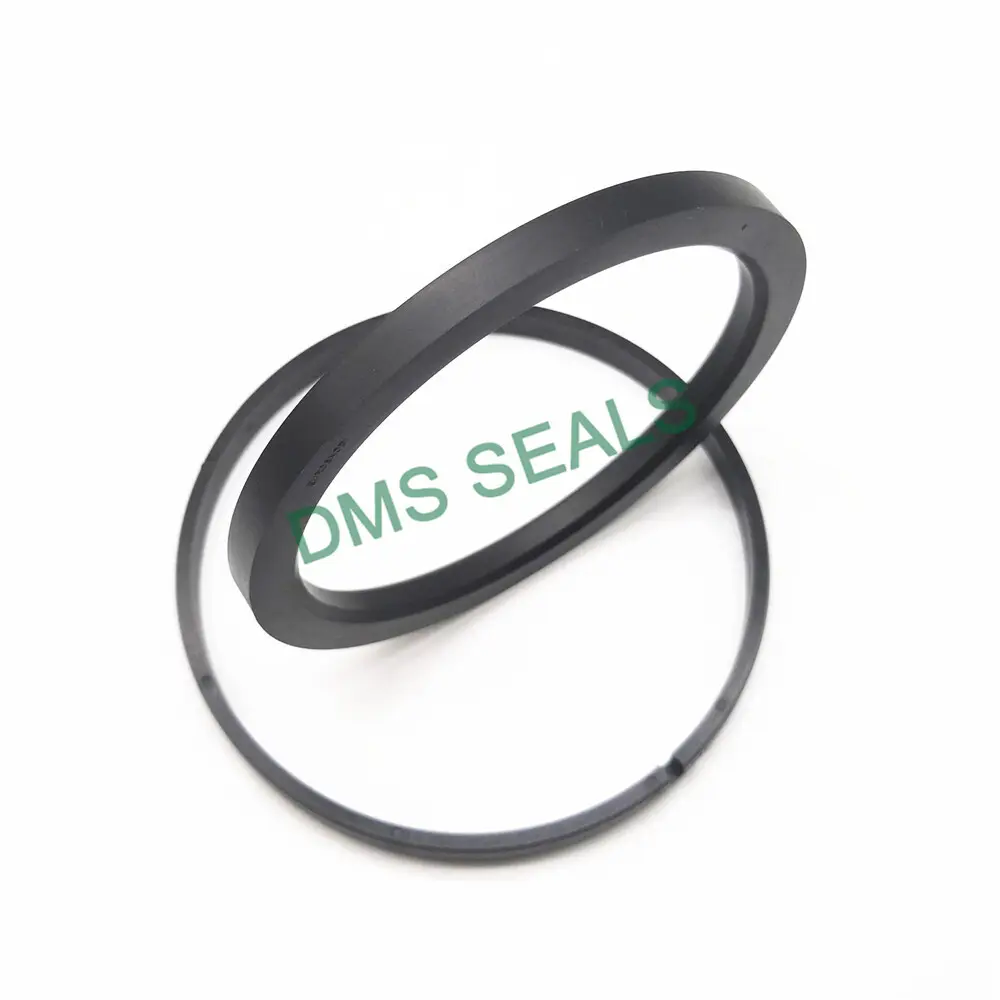

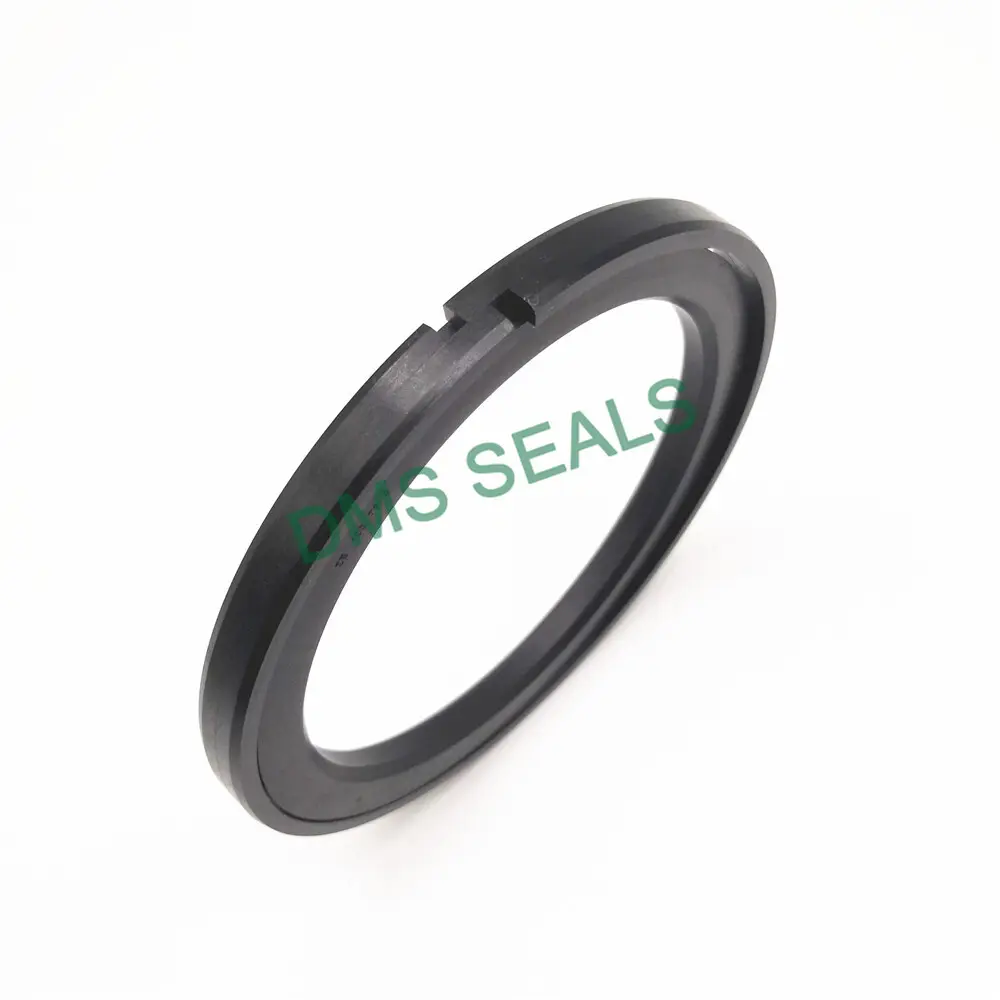

It consists of a slip ring with a Z-shaped opening and a square rubber elastic body.

It is suitable for two-way hydraulic sealing of reciprocating pistons. It has a wide range of working pressure and has good sealing performance at high, medium and low pressures. It is especially suitable for heavy-duty hydraulic cylinders, and can be used for high-pressure and ultra-high-pressure cylinders.

Small cross-section and small installation groove size.

The friction coefficient of starting and running is small, and the oil cylinder runs smoothly.

The slip ring is open for easy installation without special installation tools.

Good abrasion resistance.

High pressure resistance, strong extrusion resistance, good impact resistance.

2. Materials

Slip ring: HPT special thermoplastic material.

Elastomer: NBR

3. Labeling method

Mark with the size of the installation groove. The marking method is:

HPT "bore diameter D" × "groove bottom diameter d" × "groove width L"

For example, HPT 100×79×8 means “the HPT hole is sealed with a combination, and the groove size is: cylinder diameter 100, groove bottom diameter 79, groove width 8”

Company Advantages

· DMS Seals hydraulic piston seals is manufactured as per the international norms and well-defined industry parameters .

· Products under the supervision of professionals, through strict quality inspection, to ensure product quality.

· DMS Seals is highly recommended by our trustworthy partners.

Company Features

· As a productive hydraulic piston seals enterprise, Dms Seals Technology Co.,limited made big progress in sales volume over the years.

· Our domestic marketing networks are wide coverage, while at the same time, we also have expanded overseas hydraulic piston seals markets, such as Japan, America, the Middle East, and so on.

· DMS Seals works hard for the best interests of our customers. Contact!

Application of the Product

The hydraulic piston seals developed by Dms Seals Technology is widely used in industry.

Dms Seals Technology insists on providing customers with reasonable solutions according to their actual needs.
