Customized Hydraulic Piston Seals Company
Product details of the hydraulic piston seals
Product Overview
Assembly quality of hydraulic piston seals has been highly improved. The product meets the most stringent quality requirements and can be used for quite a long time. The hydraulic piston seals produced by our company is suitable for various occasions in industry. DMS Seals's commitment to providing quality products and professional services is your guarantee of success.
Product Description
Dms Seals Technology pays great attention to details of hydraulic piston seals.
Scope of application

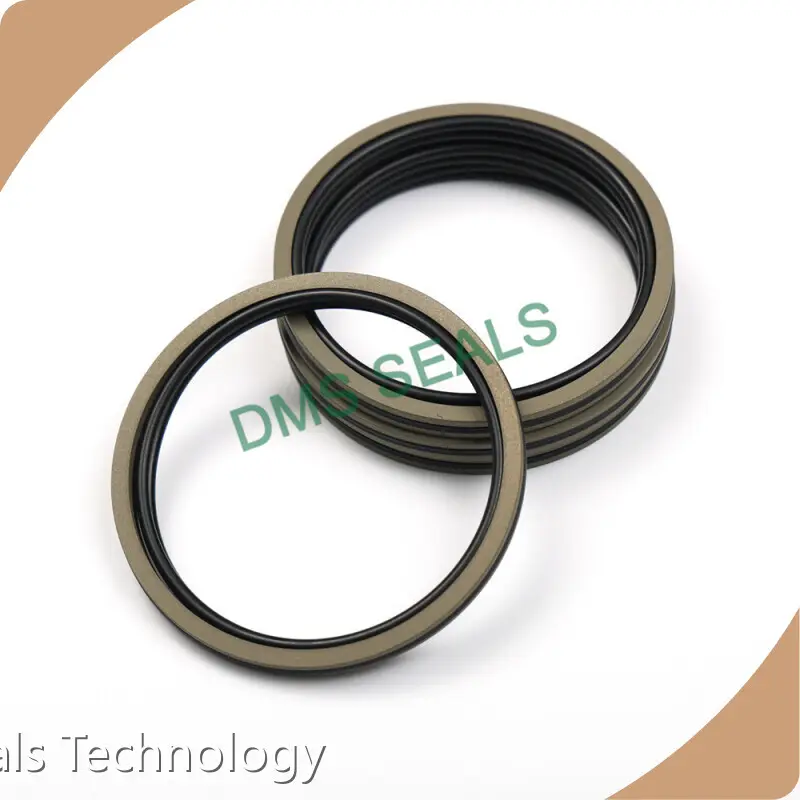

DAQ2 piston seal retains the low friction, high pressure resistance and high speed characteristics of PTFE seals, and has the sealing characteristics of rubber, which is suitable for some occasions with high speed and high pressure and need to maintain pressure.
It can be used as a two-way motion piston accumulator and a sealing element for position control cylinders, clamping cylinders, etc., and can be used in machine tools, presses, rolling mills, shoe machines, piston accumulators, heavy suspension cylinders, etc. Especially recommended for heavy duty and large diameter applications.
Features and Benefits
1. Good dynamic and static sealing performance;
2. With the function of maintaining pressure, the leakage in the cylinder is small;
3. Good sliding performance, no crawling;
4. Hydraulic fluid (bio-oil) suitable for new environmental protection and safety;
5. Since a wide variety of materials can be used, it has strong adaptability to working conditions;
6. It combines low friction and high elasticity, with double safety;
7. The groove design is simple and the installation space is small. The groove size conforms to ISO 7425/1, and can be interchanged with Glynn, Sterling, etc.;
8. Larger extrusion gap can be allowed, depending on the application, so the processing cost can be reduced;
9. Where two media need to be separated (eg: fluid/fluid or fluid/gas), the gas permeability is low and the sealing efficiency is high.
| Item | Specifications |
| Product Name | Daq2 Star Type Double O-Ring Combined Seal Aqf Piston Accumulator Seal |
| Products Category | Hydraulic seals, Oil seals, O-Rings |
| Material | PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc. |
| Propeties | High temperature, low temperature, high pressure, low pressure,friction resistance |
| Sizes | Standard and customize |
| Medium | Hydraulic oil, anti-fire fluid, water, gas etc |
| Application | excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc. |
| NO. | SIZE | NO. | SIZE |
| 1 | DAQ2-40*30*6.3 | 25 | DAQ2-140*122*12.3 |
| 2 | DAQ2-42*32*6.3 | 26 | DAQ2-150*132*12.3 |
| 3 | DAQ2-45*35*6.3 | 27 | DAQ2-160*142*12.3 |
| 4 | DAQ2-48*38*6.3 | 28 | DAQ2-170*152*12.3 |
| 5 | DAQ2-50*40*6.3 | 29 | DAQ2-180*162*12.3 |
| 6 | DAQ2-52*42*6.3 | 30 | DAQ2-190*172*12.3 |
| 7 | DAQ2-55*45*6.3 | 31 | DAQ2-200*182*12.3 |
| 8 | DAQ2-60*50*6.3 | 32 | DAQ2-210*192*12.3 |
| 9 | DAQ2-63*53*6.3 | 33 | DAQ2-220*202*12.3 |
| 10 | DAQ2-65*55*6.3 | 34 | DAQ2-230*212*12.3 |
| 11 | DAQ2-70*60*6.3 | 35 | DAQ2-240*222*12.3 |
| 12 | DAQ2-75*65*6.3 | 36 | DAQ2-250*232*12.3 |
| 13 | DAQ2-80*67*8.3 | 37 | DAQ2-280*262*12.3 |
| 14 | DAQ2-85*72*8.3 | 38 | DAQ2-300*282*12.3 |
| 15 | DAQ2-90*77*8.3 | 39 | DAQ2-320*302*12.3 |
| 16 | DAQ2-95*82*8.3 | 40 | DAQ2-350*332*12.3 |
| 17 | DAQ2-100*87*8.3 | 41 | DAQ2-400*382*12.3 |
| 18 | DAQ2-105*92*8.3 | 42 | DAQ2-420*402*12.3 |
| 19 | DAQ2-110*97*8.3 | 43 | DAQ2-450*432*12.3 |
| 20 | DAQ2-115*102*8.3 | 44 | DAQ2-480*449*16.3 |
| 21 | DAQ2-120*107*8.3 | 45 | DAQ2-500*469*16.3 |
| 22 | DAQ2-125*112*8.3 | 46 | DAQ2-600*569*16.3 |
| 23 | DAQ2-130*117*8.3 | 47 | DAQ2-700*669*16.3 |
| 24 | DAQ2-135*117*12.3 | 48 |
