Custom O-ring Seal Price List
Product details of the o-ring seal
Product Description
The raw materials DMS Seals o-ring seal uses are from traceable sources. The form of this product harmonizes with the function. This product has received many positive feedback for its huge economic effectiveness from customers at home and abroad.
Installation Recommendation
Installation Sizes
|
Rod Diameter |
Groove Diameter |
Seal Width |
Groove Width |
Guide Clearance S max |
|
|
D H9 |
d e8 |
H | L+0.2 | 0-10MPa | 15-36MPa |
| 50-124 | D-16 | 7.5 | 8 | 0.45-0.35 | 0.35-0.30 |
| 125-199 | D-20 | 9.5 | 10 | 0.55-0.45 | 0.45-0.35 |
| 200-600 | D-26 | 12.5 | 13 |
0.60-0.5 |
0.55-0.45 |
Application and properties

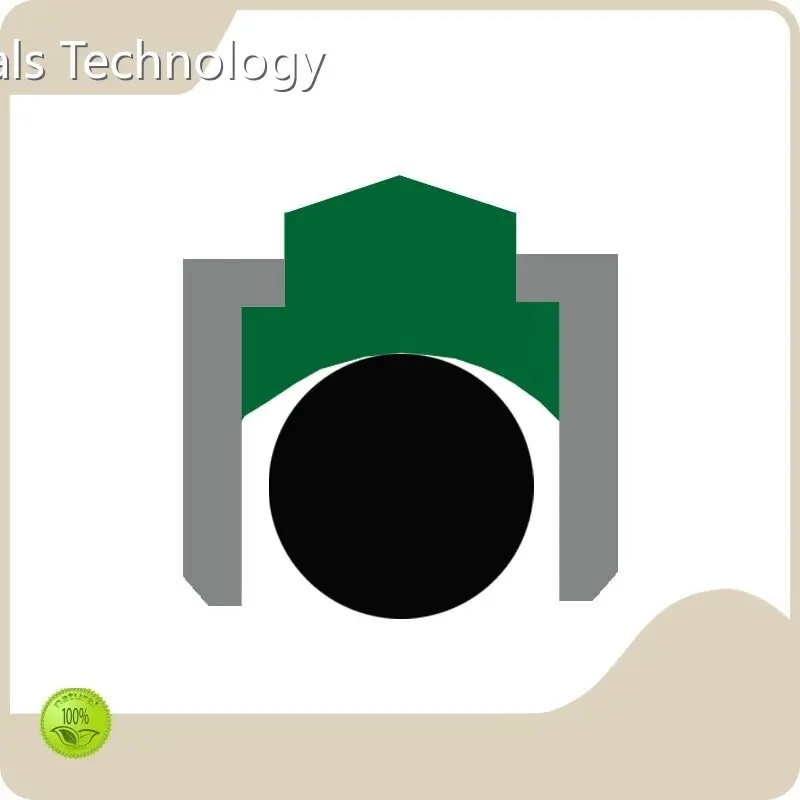

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
3-1600mm |
0-36MPa |
-36℃+100℃ |
0.5 m/s |
hydraulic oil, flame retardant liquid, water and others |
250
280290
|
d e8 |
D H9 |
H |
L | e |
Order No. |
|
50 56 63 |
34 40 47 |
7.5 7.5 7.5 |
8 8 8 |
7 7 7 |
OA50*34*7.5 OA56*40*7.5 OA63*47*7.5 |
|
70 80 90 |
54 64 74 |
7.5 7.5 7.5 |
8 8 8 |
7 7 7 |
OA70*54*7.5 OA80*64*7.5 OA90*74*7.5 |
|
95 100 110 |
79 84 94 |
7.5 7.5 7.5 |
8 8 8 |
7 10 10 |
OA95*79*7.5 OA100*84*7.5 OA110*94*7.5 |
|
115 120 125 |
99 104 105 |
7.5 7.5 9.5 |
8 8 10 |
10 10 10 |
OA115*99*7.5 OA120*104*7.5 OA125*105*9.5 |
|
130 140 150 |
110 120 130 |
9.5 9.5 9.5 |
10 10 10 |
10 10 10 |
OA130*110*9.5 OA140*120*9.5 OA150*130*9.5 |
|
250 280 290 |
224 254 264 |
12.5 12.5 12.5 |
10 10 10 |
12 12 12 |
OA250*224*12.5 OA280*254*12.5 OA290*264*12.5 |
|
300 320 350 |
274 294 324 |
12.5 12.5 12.5 |
10 10 13 |
12 15 15 |
OA250*224*12.5 OA280*254*12.5 OA290*264*12.5 |
|
380 400 420 |
354 374 394 |
12.5 12.5 12.5 |
13 13 13 |
15 15 15 |
OA380*354*12.5 OA400*374*12.5 OA420*394*12.5 |
|
450 480 500 |
424 454 474 |
12.5 12.5 12.5 |
13 13 13 |
15 15 15 |
OA450*424*12.5 OA480*454*12.5 OA500*474*12.5 |
|
560 580 600 |
534 554 574 |
12.5 12.5 12.5 |
13 13 13 |
15 15 15 |
OA560*534*12.5 OA580*554*12.5 OA600*574*12.5 |
