Custom O-ring Kit Company

Inquiry

Product Description

1. Performance and use

O-rings are the most used seals in actual production and life, which can seal one-way pressure, two-way pressure or alternating pressure.

It is mainly used for static seals, and a small part of dynamic seals (often pneumatic reciprocating motion) are also used. In dynamic applications, it is only recommended for better conditions. In rotary motion, if the pressure is low and the lubrication is sufficient, it can be recommended.

The service life of O-rings depends on factors such as system lubrication, pressure, temperature, sealing gap, speed, medium and surface quality of metal parts.

Wide range of materials, all kinds of rubber, plastic and even metal can be used as O-ring seal materials. Therefore, its medium adaptability and temperature adaptability are extremely wide.

Small mounting groove size.

Simple structure and low price.

2. Materials

Now the commonly used materials are NBR (butadiene rubber) and FKM (fluorine rubber). NBR is used for ordinary working conditions, mainly oil-proof and waterproof; FKM is mainly used for working conditions with high temperature (<160°C).

3. Performance parameters

	Static seal	Dynamic seal
Work pressure	Without retaining ring, up to 10MPa; with retaining ring, up to 40MPa; with special retaining ring, up to 200MPa;	When there is no retaining ring, the maximum pressure can reach 0.5MPa; when there is a retaining ring, the maximum pressure is 1MPa.
Movement speed	-	The maximum reciprocating speed can reach 0.3m/s, and the maximum rotation speed can reach 2.0m/s.
Temperature	Nitrile rubber NBR: -30℃～110℃; Fluorine rubber FKM: -20℃～160℃

Product Parameters

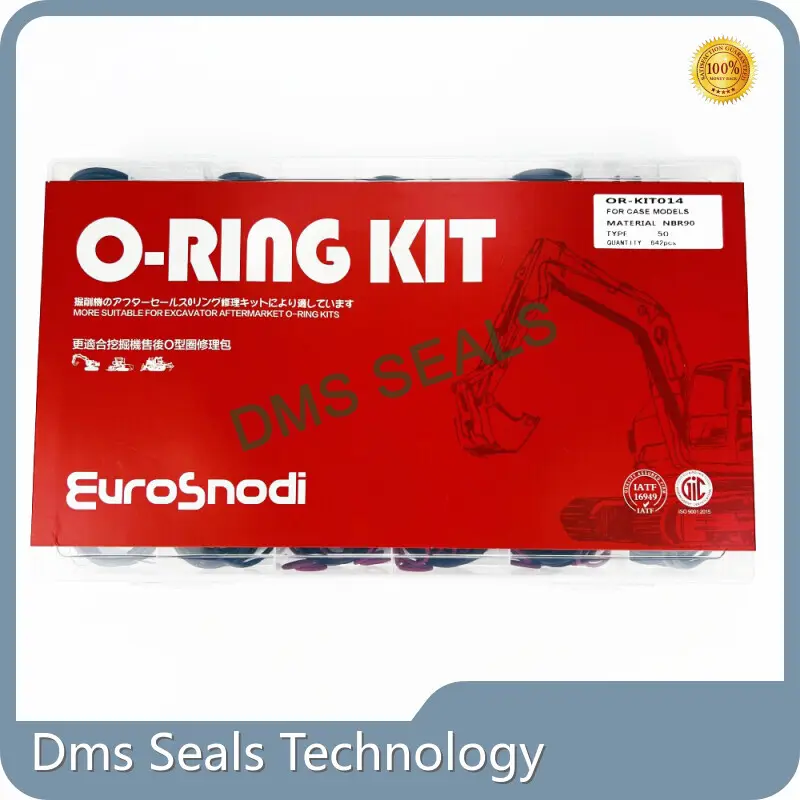

OR-KIT014 NBR90 642PCS
1	9.25*1.78	20	26	42.52*2.62	8
2	10.82*1.78	20	27	23.47*2.95	12
3	12.42*1.78	20	28	26.59*2.95	12
4	14*1.78	20	29	29.74*2.95	12
5	3.8*1.9	10	30	24.4*3.1	12
6	4.8*1.9	10	31	29.4*3.1	12
7	5.8*1.9	10	32	34.4*3.1	12
8	6.8*1.9	15	33	39.4*3.1	10
9	7.8*1.9	20	34	44.4*3.1	6
10	8.8*1.9	15	35	21.7*3.5	11
11	9.8*1.9	15	36	22.1*3.5	11
12	9.8*2.4	10	37	23.7*3.5	15
13	10.8*2.4	20	38	24.7*3.5	11
14	11.8*2.4	15	39	25.7*3.5	11
15	12.3*2.4	10	40	27.7*3.5	11
16	13.8*2.4	15	41	28.7*3.5	15
17	14.8*2.4	15	42	29.2*3.5	10
18	15.8*2.4	15	43	29.7*3.5	11
19	17.8*2.4	15	44	31.7*3.5	11
20	19.8*2.4	15	45	33.7*3.5	11
21	20.8*2.4	15	46	34.7*3.5	10
22	21.8*2.4	15	47	37.7*3.5	6
23	19.18*2.46	10	48	47.7*3.5	5
24	13.94*2.62	20	49	24.99*3.53	12
25	36.17*2.62	8	50	32.92*3.53	12
Remarks: The total number of O-rings is 642 pieces, the ones marked with colors are fluorine-sprayed O-rings

Company Advantages

· Innovative design concept: From appearance to construction, DMS Seals o-ring kit is designed by our professional designers. They discuss to each other to ensure that each design has the innovative characteristics of industrial standard.

· The performance index of this product is in the domestic leading position.

· Serving customers with the most professional techniques is a focus in Dms Seals Technology Co.,limited.

Company Features

· Known as a strong competitor in manufacturing o-ring kit, Dms Seals Technology Co.,limited has a good business reputation in nearly every regions in domestic.

· Since inception, we have won national awards on technology developments, such as product innovation and creativity. These awards are strong supporting evidence of our R&D ability.

· We have been cooperating with our staff to produce the high quality o-ring kit to exceed the expectation of the customers. Get info!

Application of the Product

The o-ring kit of Dms Seals Technology can be used in many industries.

We always focus on meeting customers' needs and we are dedicated to providing customers with comprehensive and excellent solutions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
