Custom Made Pneumatic Rod Seals Company

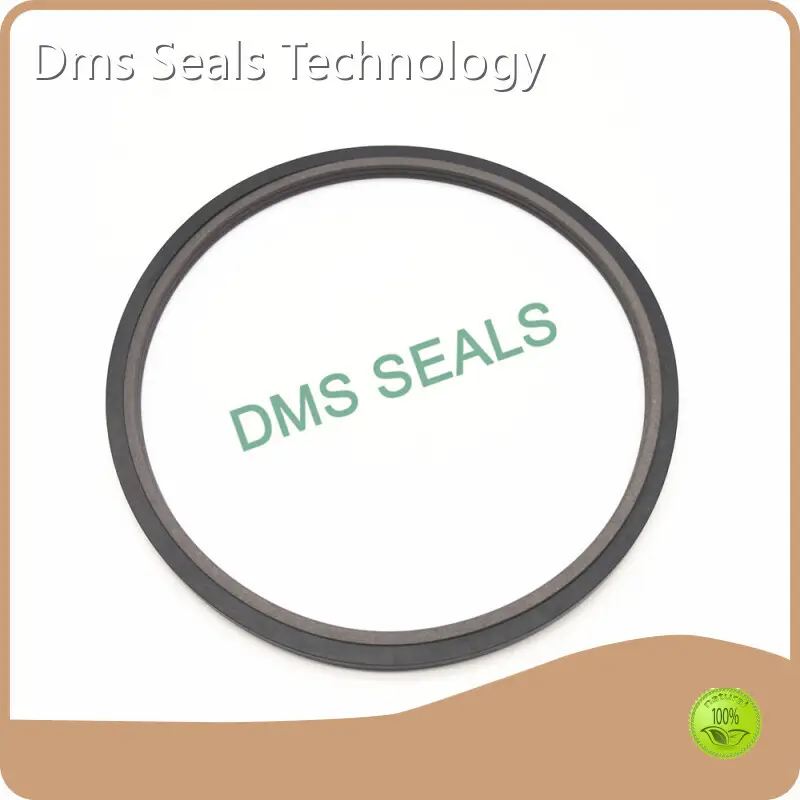

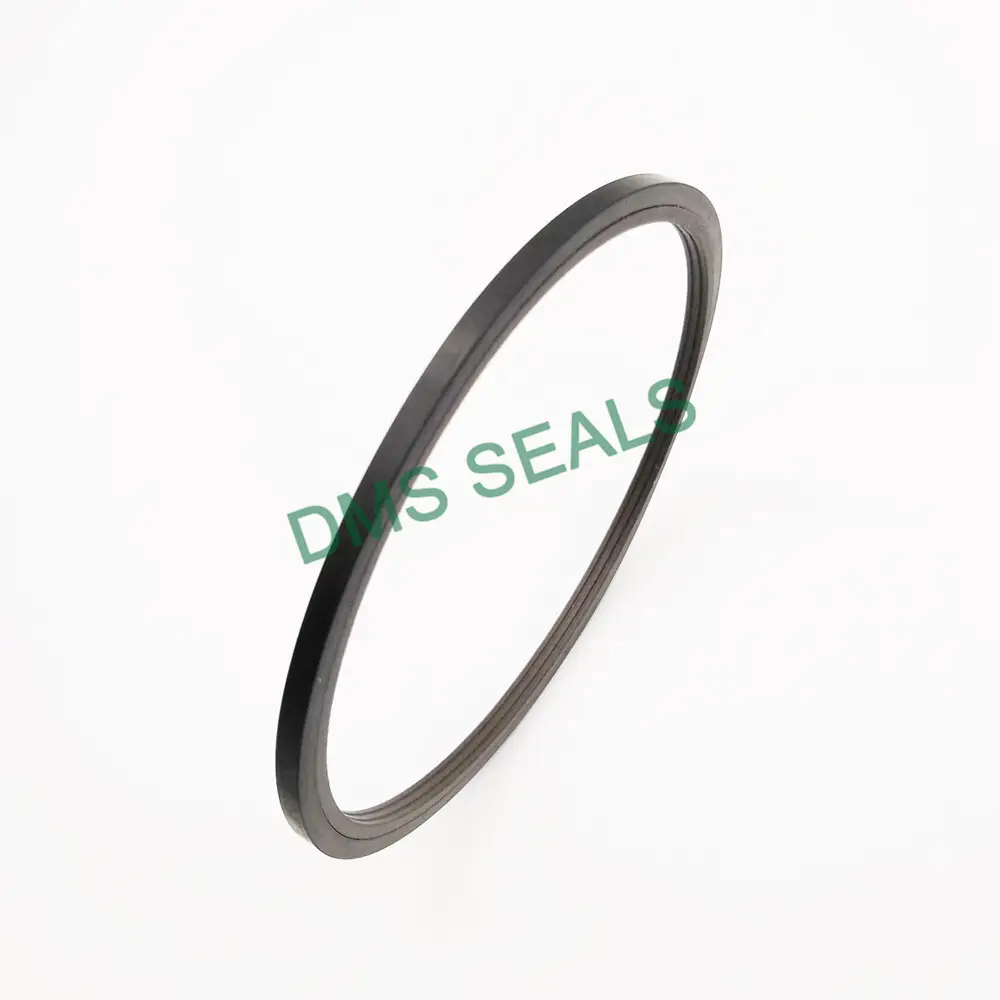

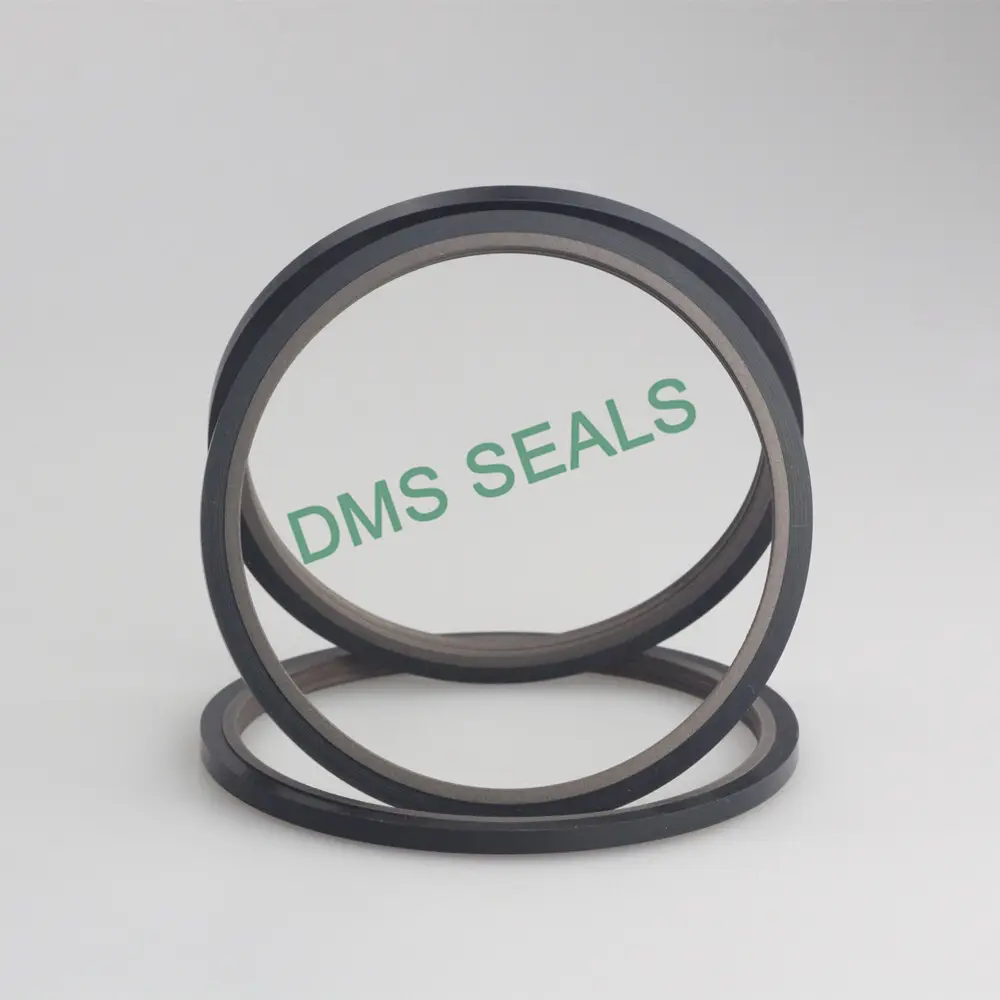

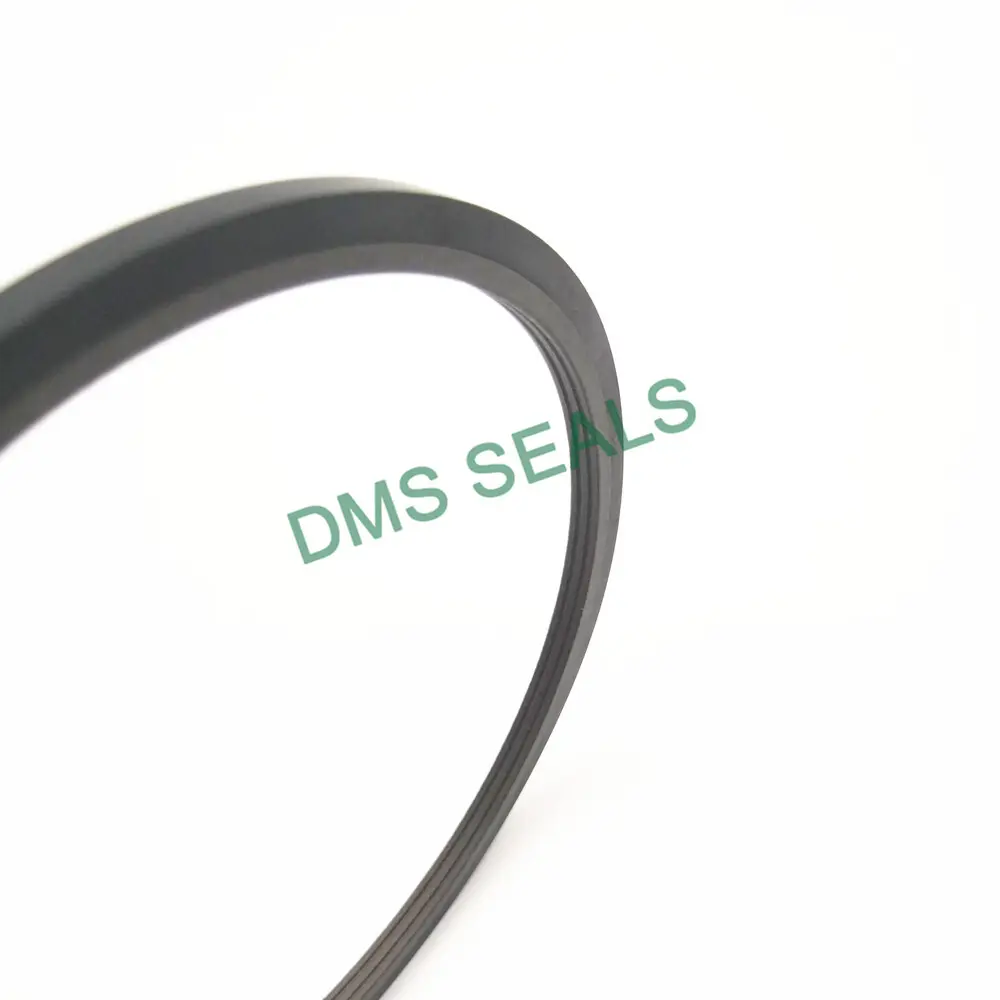

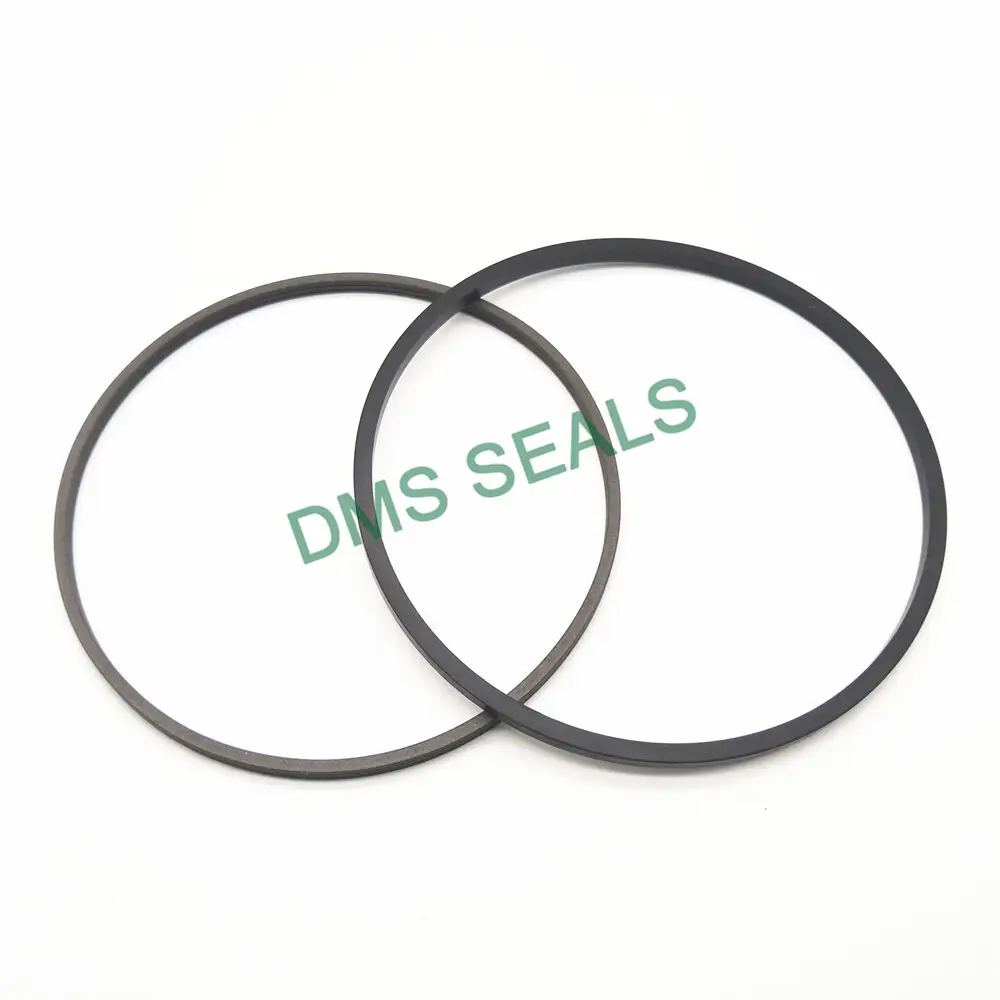

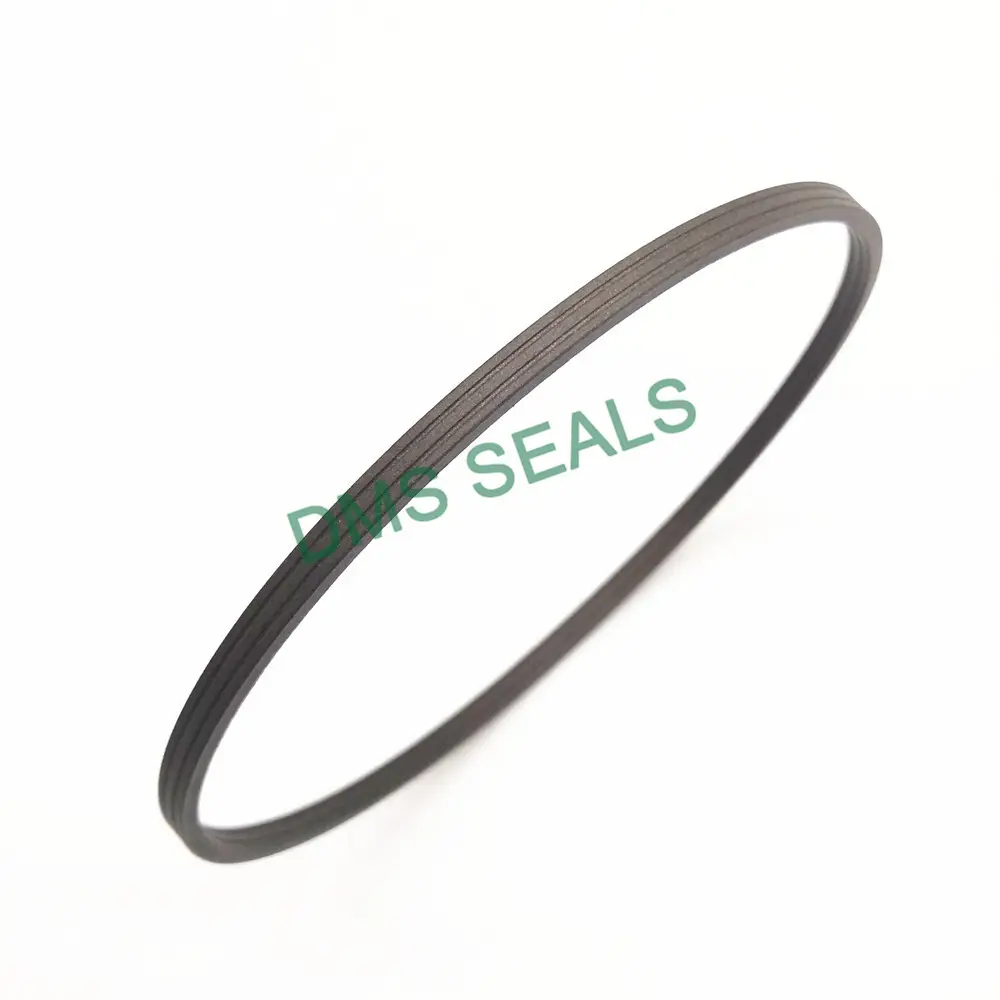

Product details of the pneumatic rod seals
Product Information
DMS Seals pneumatic rod seals is creatively designed to help customers break into the fast-growing market. The quality of the product is 100% guaranteed by our professional QC staff. Dms Seals Technology Co.,limited offers factory price with best quality products.
1. Standard material
Sealing body: filled with polytetrafluoroethylene F-PTFE
Elastomer: Nitrile NBR or Viton FKM
2. Scope of application
This seal has the same performance as SPNO. Since SPN is a square elastic body, it can provide a uniform expansion elastic force for the sealing ring, and can be well used in the situation of wide pressure working range and high sliding speed.
When designing and selecting, please refer to NOK's SPN series standards.
3. Features and Benefits
1. The groove is simple and can be used for integral piston.
2. Small friction, no crawling phenomenon.
3. The static sealing performance is very good. Ensure high wear resistance.
4. Due to the large extrusion gap, it can also be used safely in dirty media.
5. Square elastomer can ensure high durability.
6. Suitable for the latest environment-friendly and safe hydraulic fluid (bio-oil).
Groove Sizes | L +0.2 | Order No. | ||
d | D | H | ||
18 20 22 | 27 29 31 | 4.3 4.3 4.3 | 4.5 4.5 4.5 | MDI18*27*4.3 MDI20*29*4.3 MDI22*31*4.3 |
27 31.5 47 | 36 40.5 60 | 4.3 4.3 7.3 | 4.5 4.5 7.5 | MDI27*36*4.3 MDI31.5*40.5*4.3 MDI47*60*7.3 |
53 60 65 | 66 73 78 | 7.3 7.3 7.3 | 7.5 7.5 7.5 | MDI53*66*7.3 MDI60*73*7.3 MDI65*78*7.3 |
70 75 80 | 83 88 93 | 7.3 7.3 7.3 | 7.5 7.5 7.5 | MDI70*83*7.3 MDI75*88*7.3 MDI80*93*7.3 |
90 100 110 | 103.4 113.4 123.4 | 7.3 7.3 7.3 | 7.5 7.5 7.5 | MDI90*103.4*7.3 MDI100*113.4*7.3 MDI110*123.4*7.3 |
120 130 140 | 133.4 143.4 153.4 | 7.3 7.3 7.3 | 7.5 7.5 7.5 | MDI120*133.4*7.3 MDI130*143.4*7.3 MDI140*153.4*7.3 |
Company Feature
• Dms Seals Technology runs a strict internal control system and a sound service system to provide quality products and efficient services for customers.
• Our company was founded in and has been developing for years. We have improved our various facilities and economic strength with numerous business projects and comprehensive strength.
• We have an annual increment in the sales volume because of good quality and reasonable price.
The products produced are qualified products of high quality. If you are interested in our products, please contact us!
