Product Details
Adhering to the concept of 'details and quality make achievement', Dms Seals works hard on the following details to make the
O-ring Seal more advantageous.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of O-ring Seal. It is of fine workmanship and good quality and is well sold in the domestic market.
Enterprise Strength
-
Based on the idea of 'integrity, responsibility, and kindness', Dms Seals strives to provide the best products and services, and gain more trust and praise from customers.
Company Advantages1. DMS Seals has been strictly monitored during production. It has been inspected with regards to cracks, discoloration, structural safety, slip resistance, and biomechanical comfort.
2. When DMS Seals is designed, many necessary factors are taken into considerations, such as safety, stability, strength, contaminants and harmful substances, and ergonomics.
3. Many factors of DMS Seals pneumatic piston seals have been taken into account in the design stage. These factors include fire resistance ability, biomechanical comfort (plantar pressure), force distribution, and slip resistance.
4. The design of makes our pneumatic piston seals more practical in our life.
5. pneumatic piston seals is relatively and has been designed for higher performance.
6. pneumatic piston seals is designed according to the factual demand. Its prominent merit is that it has .
7. [核心关键词 has the characteristics of and long life, it may bring social benefits.
8. It helps expand customer range. It helps attract a large number of potential customers, from the delivery person to the shoppers.
9. When one wears this kind of product, the original color of the scenery will not be changed due to the lens, but it can maximize the protection of strong light.
10. The product helps in saving business owners' money in the long run. Because it can reduce the amount of wasted material and time.
11. By helping reduce the workload, this product can prevent employees from getting tired. This will finally contribute to the improvement of productivity.
12. This product is durable, breathable, soft, easy to care, and generally quite affordable. If one wants high-quality clothes, this is an option.
Installation Recommendation
![undefined undefined]()
Installation Sizes
D H8 | d h9 | L+0.2 | H |
˂96 | D-16.3 | 8 | 7.5 |
96-190 | D-20 | 10 | 9.5 |
191-380 | D-28 | 13 | 12.5 |
381-1000 | D-36 | 20 | 19.5 |
Application and properties

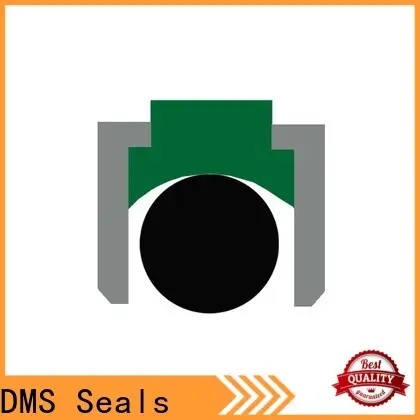

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
L-Ring: POM / PA
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D H8 | d h9 | H | L | e | Order No. |
40
45
50 | 23.2
28.2
33.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA40*23.2*7.5
DGDA45*28.2*7.5
DGDA50*33.2*7.5 |
56
63
65 | 39.2
46.2
48.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA56*39.2*7.5
DGDA63*46.2*7.5
DGDA65*48.2*7.5 |
70
75
80 | 53.2
58.2
63.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA70*53.2*7.5
DGDA75*58.2*7.5
DGDA80*63.2*7.5 |
85
90
95 | 68.2
73.2
78.2 | 7.5
7.5
7.5 | 8
8
8 | 7
7
7 | DGDA85*68.2*7.5
DGDA90*73.2*7.5
DGDA95*78.2*7.5 |
100
105
110 | 80
85
90 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA100*80*9.5
DGDA105*85*9.5
DGDA110*90*9.5 |
115
120
125 | 95
100
105 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA115*95*9.5
DGDA120*100*9.5
DGDA125*105*9.5 |
130
135
140 | 110
115
120 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA130*110*9.5
DGDA135*115*9.5
DGDA140*120*9.5 |
145
150
155 | 125
130
135 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA145*125*9.5
DGDA150*130*9.5
DGDA155*135*9.5 |
160
170
180 | 140
150
160 | 9.5
9.5
9.5 | 10
10
10 | 10
10
10 | DGDA160*140*9.5
DGDA170*150*9.5
DGDA180*160*9.5 |
190
200
210 | 170
172
182 | 9.5
12.5
12.5 | 10
13
13 | 10
12
12 | DGDA190*170*9.5
DGDA200*172*12.5
DGDA210*182*12.5 |
220
225
235 | 192
197
207 | 12.5
12.5
12.5 | 13
13
13 | 12
12
12 | DGDA220*192*12.5
DGDA225*197*12.5
DGDA235*207*12.5 |
Company Features1. Dms Seals Technology Co.,limited is a comprehensive enterprise specializing in R&D, production and sales of pneumatic piston seals . With the emergence and broad development prospect of custom oil seals , Dms Seals Technology Co.,limited has becomes more and more popular. Over the years, Dms Seals Technology Co.,limited has been a major o-ring seal manufacturing base in China. Dms Seals Technology Co.,limited has a one-stop production base for hydraulic sealer in China. Dms Seals Technology Co.,limited is one of China's more efficient hydraulic cylinder packing material makers.
2. Our products goes all over the world. We have clients spread across the globe in countries such as North America, Germany, China, Korea, and Singapore. We have a skilled labor force. The workers have been exposed to the newest technologies, business practices and workflow trends that have increased their productivity. Our company has excellent manufacturing teams. Their extensive knowledge of the industry enables them to provide customers with the most advanced, cost-effective, and reliable manufacturing solutions. Our company has achieved numerous honors awarded by the municipal. We are credited as the high-integrity enterprise, quality trustworthy organization, and the creditable unit keeping the promise. Our company has in house design and engineering departments. Their depth of expertise in all aspects of product design and implementation allows the company to create the ideal solution whilst keeping a close eye on the budget.
3. DMS Seals provides the zealous services, steady source of goods and preferential price to all the customers. Inquire! Dms Seals Technology Co.,limited is aimed at developing long-lasting and honest partnerships. Inquire! DMS Seals aims to be a globally competitive manufacturer. Inquire!
New pneumatic piston seals wholesale for sale
pneumatic piston seals
Type:
![New pneumatic piston seals wholesale for sale 6]()
