Latest rod seals or piston seal supplier for injection molding machines
1. The rigorous quality control of DMS Seals rod seals or piston seal is conducted throughout all production stages to guarantee the dimension and specification is within the tolerance limit in mechanical seals industry. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
2. The durability of this product helps save money since it can be used throughout the years without having to be repaired or replaced. DMS Seals implements and optimizes its quality control systems
3. The product is able to withstand disinfectants. The materials used can stand up being cleaned with high frequency under sterilization conditions. The high pressure seals have strong wear resistance to hard conditions
4. The product is well-known for its abrasion resistance. It has the ability to withstand the effects of abrasion, for example, repeated wear and tear, rubbing, scraping, etc. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
5. The product features nonporous constructions. It is made of fine particle clay which can result in a thin construction and translucent body with very small porosity. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
Rod Diameter d f8/h9 | Groove Diameter | Groove Width | Step Diameter | Radius | Step Width | |
Standard Application | Suitable | D H9 | L1+0.2 | D1±0.1 | R | a |
140.0-229.9 | 100.0-450.0 | d+22.2 | 6.3 | d+10.7 | 1.2 | 4.2 |
230.0-299.9 | 220.0-450.0 | d+24.2 | 6.3 | d+10.7 | 1.2 | 4.2 |
300.0-629.9 | 250.0-650.0 | d+33.0 | 8.1 | d+15.1 | 1.2 | 6.3 |
630.0-999.9 | 550.0-999.9 | d+36.5 | 9.5 | d+15.1 | 2.0 | 6.3 |
Application and properties

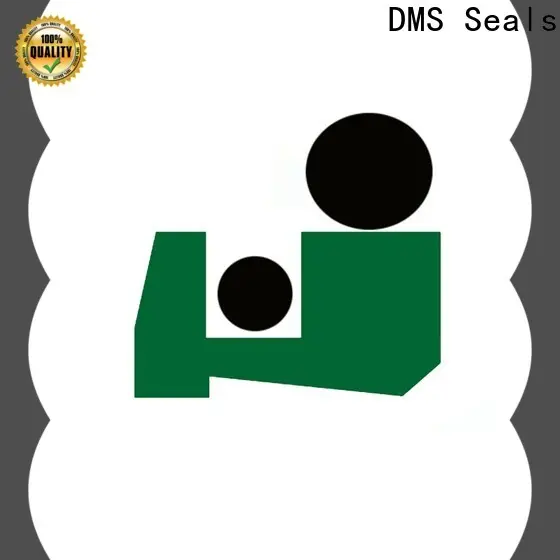

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -30℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L1+0.2 | L1 | Order No. |
100 | 122.2 | 13.5 | 6.3 | 4.2 | DPT2-100*122.2*6.3 |
130 | 152.2 | 13.5 | 6.3 | 4.2 | DPT2-130*152.2*6.3 |
160 | 182.2 | 13.5 | 6.3 | 4.2 | DPT2-160*182.2*6.3 |
190 | 212.2 | 13.5 | 6.3 | 4.2 | DPT2-190*212.2*6.3 |
220 | 242.2 | 13.5 | 6.3 | 4.2 | DPT2-220*242.2*6.3 |
250 | 272.2 | 13.5 | 6.3 | 4.2 | DPT2-250*272.2*6.3 |
275 | 297.2 | 13.5 | 6.3 | 4.2 | DPT2-275*297.2*6.3 |
295 | 317.2 | 13.5 | 6.3 | 4.2 | DPT2-295*317.2*6.3 |
340 | 373 | 18.4 | 8.1 | 6.3 | DPT2-340*373*8.1 |
Company Features
1. The massive marketing network of Dms Seals Technology Co.,limited means that the company is one of the largest rod seals or piston seal suppliers in China.
2. By establishing a high-tech laboratory, DMS Seals has enough capacity to create v cup seal .
3. Whenever there is a need for us, Dms Seals Technology Co.,limited will provide timely help. Inquire online!
