Latest rod end seals with nbr or pu for pressure work and sliding high speed occasions

Company Advantages
1. DMS Seals rod end seals is manufactured with the aid of pioneering techniques.
2. Quality DMS Seals is manufactured leveraging the technologically-advanced production facilities.
3. DMS Seals is designed by innovative professionals using finest quality materials.
4. DMS Seals is designed and developed as per international industrial standards using top quality raw materials.
5. rod end seals has superior properties than others, yet still has a good price.
6. optimizes the functions of rod end seals which also improves the efficiency.
7. rod end seals breaks through the limitations of which creates a new world of .
8. A feasible and flexible rod end seals design has been a prominent characteristic of this product.
9. The product has been widely recognized by customers and shows great market potential.
10. Due to its excellent characteristics, this product is well received by customers and is used more and more in the market.
11. The product, offered at an affordable price, is currently popular in the market and is believed to be more widely used in the future.

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

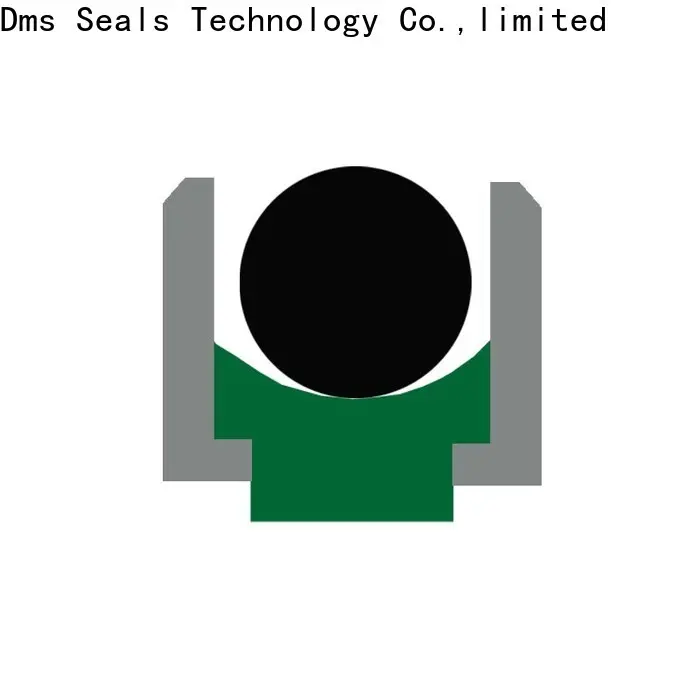

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. Over the years, Dms Seals Technology Co.,limited has been concentrating on the research & development, design, and production of rod end seals . For many years, Dms Seals Technology Co.,limited keeps holding the safe lead in hydraulic seals pdf industry. With such professionalism, we gain more and more popularity in the market. Since establishment, Dms Seals Technology Co.,limited has been committed to manufacturing . Specializing in supplying for many years, Dms Seals Technology Co.,limited leads from the front with strong developing and manufacturing capability. As one of China's small and medium-sized enterprises, Dms Seals Technology Co.,limited is trustworthy.
2. We have an orderly factory. All production processes are designed to create a safe and healthy working environment and meet strict quality standards. We have many experienced technicians. They are able to guide clients through from conception to order completion by using their professional knowledge and expertise. The factory possesses advanced processing machinery. The machinery manufacturing process which covers machine body producing to whole machine assembling has greatly enhanced our annual production ability. We have robust teams covering the entire manufacturing process. Their expertise in materials research, advanced design methods, and global manufacturing capability allow us to create reliable products our customers need. We have a team of skilled workers. They are equipped with some required manufacturing expertise and skills and have the ability to troubleshoot machine issues and perform repairs or assembly as needed.
3. Our development goal is to constantly improve market competitive force and to make us to be listed among the top international brands of buy hydraulic seals . Get an offer! Our core value is to provide the highest and finest . Get an offer! Dms Seals Technology Co.,limited will make unremitting efforts to build a world-class piston seal manufacturers enterprise group. Get an offer!

Latest rod end seals with nbr or pu for pressure work and sliding high speed occasions

rod end seals

Type:
