DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
hydraulic rod seals rod seal hydraulic DMS Seal Manufacturer Brand company
1. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals. Owing to its various quality attributes, provided hydraulic rod seals is highly appreciated by DMS Seal Manufacturer clients.
2. Dms Seals Technology Co.,limited's customer service always works on a professional level. DMS Seals provides professional design and production of high-grade o-ring seals
3. As a professional rod seals supplier, we offer comprehensive solutions for the piston rod seal industry. Benefit from our many years of experience and our specialist knowledge! We have developed solutions of the sealing of special working condition.
4. The features don't stop there: this hydraulic rod seals offers hydraulic rod seals online capacity and rod seal catalogue. Quality control of the seals is the basis for DMS Seals.
Rod Diameter | Outer Diameter | Groove Width | Install Chamfer | Radius | Radial Clearance S max. | ||
d f8 | D H8 | L+0.2 | L1 | R1 | 10MPa | 20MPa | 40MPa |
50-69.9 | d+15.0 | 7.5 | 5.0 | 0.4 | 0.5 | 0.4 | 0.3 |
70-149.9 | d+20.0 | 10.1 | 6.0 | 0.4 | 0.7 | 0.5 | 0.4 |
200-244.9 | d+25.0 | 12.5 | 8.5 | 0.4 | 0.8 | 0.6 | 0.5 |
245-519.9 | d+30.0 | 15.0 | 10.0 | 0.8 | 0.9 | 0.7 | 0.6 |
520-769.9 | d+35.0 | 17.5 | 13.0 | 1.2 | 1.0 | 0.8 | 0.7 |
770-1500 | d+40.0 | 20.0 | 15.0 | 1.2 | 1.0 | 0.8 | 0.7 |

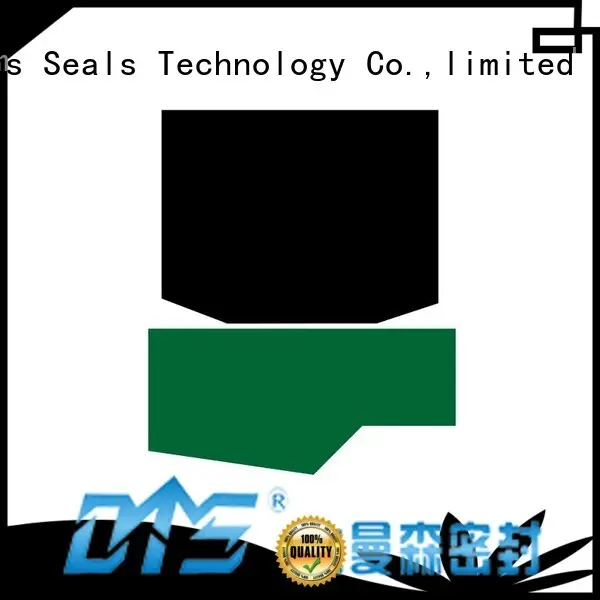

Application and properties
Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water, gas |
Rod Dia. | Outer Dia. | Groove Width | Order No. |
d f8 | D H8 | L+0.2 | |
50 | 65 | 7.5 | GSJ-W50*65*7.5 |
75 | 95 | 10 | GSJ-W75*95*10 |
110 | 130 | 10 | GSJ-W110*130*10 |
130 | 150 | 10 | GSJ-W130*150*10 |
150 | 170 | 10 | GSJ-W150*170*10 |
175 | 195 | 10 | GSJ-W175*195*10 |
230 | 255 | 12.5 | GSJ-W230*255*12.5 |
260 | 285 | 12.5 | GSJ-W260*285*12.5 |
280 | 305 | 12.5 | GSJ-W280*305*12.5 |
Company Features
1. DMS Seal Manufacturer specializes in manufacturing rod seals with high quality and reasonable price.
2. Adversity Successfully Overcome Is The Highest Glory. DMS Seal Manufacturer Offers A Wide Range Of hydraulic rod seals, hydraulic rod seals, piston rod seal At Reasonable Price To Customers From All Over The World. Please Contact Us!
3. DMS Seal Manufacturer focuses on continuous technological innovation to improve products and services. Ask online!
