High-quality seals for hydraulic pumps for sale for light and medium hydraulic systems

Company Advantages
1. seals for hydraulic pumps 's design offers a unique visual experience.
2. The material, production, design of seals for hydraulic pumps comply with international regulations.
3. Professionalism would be seals for hydraulic pumps 's advantage.
4. The exact identification of defects by using the sophisticated testing equipment guarantees the premium quality of the product.
5. seals for hydraulic pumps is produced according to GB and IEC standards.
6. An internal team or a third-party team is hired to determine whether the product meets the standards.
7. The reputation of Dms Seals Technology Co.,limited is mostly based on the stable quality of seals for hydraulic pumps .
8. This product has covered a broad market segment.
9. Since its establishment, Dms Seals Technology Co.,limited has won praises from many users.
10. Dms Seals Technology Co.,limited's employees are committed to providing exceptional service that is unique and distinct from all others.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

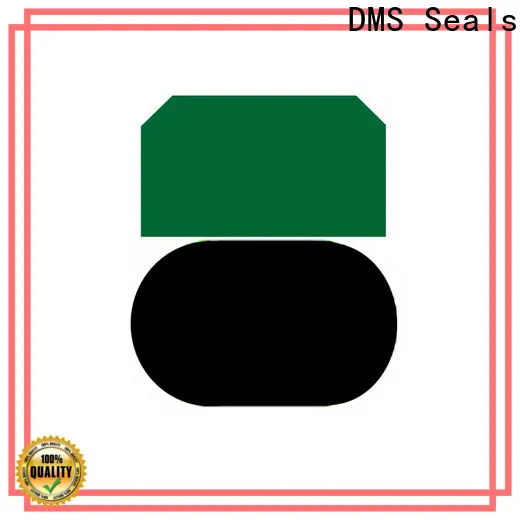

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited enjoys high notability in the field of seals for hydraulic pumps . Dms Seals Technology Co.,limited's production of transmission piston seal is in the leading position nationwide. The DMS Seals brand is a globally recognized manufacturer. DMS Seals is a globally recognized hydraulic u seal supplier. DMS Seals is an outstanding air cylinder piston seals supplier.
2. We have an export license issued by the National Foreign Trade and Economic Cooperation Administrative Department. The export license has enabled us to unlock the international market and expand the scope operation. We have developed a strong market development ability. Over the years, we already opened markets in various countries and regions, including America, Australia, and Germany. Our products and services combine traditional practices and modern techniques that are utilized by leading manufacturers around the world. The factory is located in an area where infrastructure and services are easily accessible. The accessibility of electricity, water, and resources supply, and the convenience of transportation have reduced the time to completion of the project significantly and decreased the required capital expenditure. With years of development, we have received official recognition of our sound management practices. We have been awarded the title of "China Quality Award" for many years.
3. We incorporate sustainability as an integral part of our corporate strategy. One of our goals is to set and achieve a significant decrease in our greenhouse gas emissions. High integrity is what we should pursue. We would like to operate successfully in a changing market through our sincere business activities. We swear no deceit or fraud will be involved. We aim to become a global leading company. We are confident that we can provide the ideal elements within our value chain to attain the maximum benefit for each individual customer. Our purpose is to provide the right space for our customers so that their businesses can thrive. We do this to create long-term financial, physical and social value.
