High-quality air piston seal price for pressure work and sliding high speed occasions 1
High-quality air piston seal price for pressure work and sliding high speed occasions 2
High-quality air piston seal price for pressure work and sliding high speed occasions 1
High-quality air piston seal price for pressure work and sliding high speed occasions 2

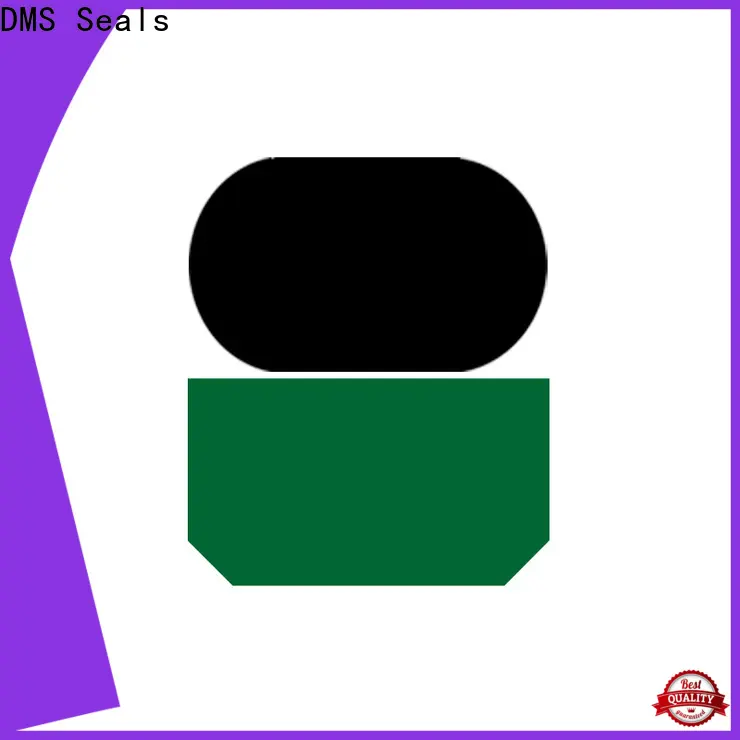

High-quality air piston seal price for pressure work and sliding high speed occasions

Diameter Range:
3-1600mm
Pressure Range:
0-60MPa
Temperature Range:
-45℃+200℃
Speed:
15 m/s
Medium:
hydraulic oil, flame retardant liquid, water, gas
Inquiry
Company Advantages
1. The design of DMS Seals is conducted by professional mechanical engineers. Its moving parts, such as the gears, levels, and pistons in the engine and hydraulic systems are carefully designed after considering numerous factors. DMS Seals implements and optimizes its quality control systems
2. Some of our customers say that the product functions as excellently as the one powered by the power grid electricity with almost the same electrical output. DMS Seals' production equipment and test equipment are on the leading level in the industry
3. The product has high performance reliability and relatively long service life. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management

1. Installation Recommendation

DMS Seal Manufacturer-Hydraulic Rod Seal | High Pressure Seals | Rubber Seal Design


2. Installation Sizes

Rod Diameter    dN h9

Groove Diameter

Groove Width

Radius

Radial Clearance                S max.

O-Ring Cross-Section

Standard Application

Light Application

Heavy Duty Application

D1 H9

L1+0.2

R1

10MPa

20MPa

40MPa

d2

3-7.9

8-18.9

-

dN+4.9

2.2

0.4

0.3

0.20

0.15

1.78

8-18.9

19-37.9

-

dN+7.3

3.2

0.6

0.4

0.25

0.15

2.62

19-37.9

38-199.9

8-18.9

dN+10.7

4.2

1.0

0.4

0.25

0.20

3.53

38-199.9

200-255.9

19-37.9

dN+15.1

6.3

1.3

0.5

0.30

0.20

5.33

200-225.9

256-649.9

38-199.9

dN+20.5

8.1

1.8

0.6

0.35

0.25

7.00

256-649.9

650-999.9

200-255.9

dN+24.0

8.1

1.8

0.6

0.35

0.25

7.00

650-999.9

1000.0

256-649.9

dN+27.3

9.5

2.5

0.7

0.50

0.30

8.40

1000.0

-

650-999.9

dN+38.0

13.8

3.0

1.0

0.70

0.60

12.00

3. Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.

Meet the standard of GB/T 15242.3.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3 - 1600mm

0 - 60MPa

-45℃ +200

15 m/s

hydraulic oil, flame retardant liquid, water, gas



6. Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

DN h9

D1 H9

L1+0.2

20

20

22

27.3

30.7

29.3

3.2

4.2

3.2

GSI20*27.3*3.2

GSI20*30.7*4.2

GSI22*29.3*3.2

21.89*2.62

25.0*3.53

25.07*2.62

22

24

25

32.7

31.3

32.3

4.2

3.2

3.2

GSI22*32.7*4.2

GSI24*31.3*3.2

GSI25*32.3*3.2

26.57*3.53

26.64*2.62

28.24*2.62

25

26

28

35.7

36.7

35.3

4.2

4.2

3.2

GSI25*35.7*4.2

GSI26*36.7*4.2

GSI28*35.3*3.2

29.74*3.53

29.74*3.53

29.82*2.62

28

30

30

38.7

37.3

40.7

4.2

3.2

4.2

GSI28*38.7*4.2

GSI30*37.3*3.2

GSI30*40.7*4.2

32.92*3.53

32.99*2.62

34.52*3.53

32

32

35

39.3

42.7

42.3

3.2

4.2

3.2

GSI32*39.3*3.2

GSI32*42.7*4.2

GSI35*42.3*3.2

34.59*2.62

36.09*3.53

37.77*2.62

35

36

36

45.7

43.3

46.7

4.2

3.2

4.2

GSI35*45.7*4.2

GSI36*43.3*3.2

GSI36*46.7*4.2

37.69*3.53

39.34*2.62

40.87*3.53

38

38

40

48.7

53.1

50.7

4.2

6.3

4.2

GSI38*48.7*4.2

GSI38*53.1*6.3

GSI40*50.7*4.2

40.87*3.53

43.82*5.33

44.04*3.53
