DMS Seals Top security seal supplier for sale

Company Advantages
1. The quality of DMS Seals is guaranteed by different quality standards. The overall performance of this product meets requirements stipulated in GB18580-2001 and GB18584-2001.
2. The fabrics of DMS Seals security seal supplier have to go through inspection processes. These processes are fabric GSM checking, fabric shade variation, shrinkage testing, and defect checking.
3. DMS Seals is manufactured according to the following stages: fabrics wrinkle-resistant finish, cutting piece, grading, flat sewing, edge finishing, ironing, and packing.
4. The design of DMS Seals is professional and complicated. It covers several major steps that are carried out by exceptional designers, including sketch drawings, three-dimensional perspective drawing, mold making, and identification of whether the product fitting the space or not.
5. Its surface is durable. It has passed various surface resistance testing such as surface resistance to cold liquids, surface resistance to wet heat, surface resistance to abrasion, and surface resistance to scratching.
6. This product has the advantage of excellent breathability. Passing anti-bacterial treatment, it is able to wick away perspiration and fight foot odor.
7. The product has dimensional stability. It has been inspected size changes after washed and dried, which proves it keeps the original size perfectly.
8. The product is innoxious. It does not contain any harmful chemical residues such as dyestuff, color fixing agent, and anti-bacterial agents.
9. The chief advantage in the use of this product is the shorter period of production because of its quick-yielding power.
10. The product can provide support for the feet where they need it most and effectively relieves pain-inducing shock and stress.
11. If people take a closer look at the inside, they will only find straight, neatly finished seams, which guarantees it to be worn for a long period.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

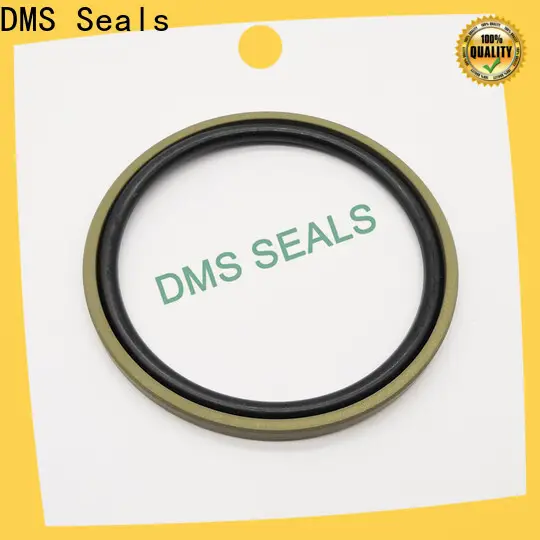

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others



6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited has occupied large security seal supplier market for its high quality and professional service. Dms Seals Technology Co.,limited is a quality dust seal manufacturers provider. DMS Seals is known as an experienced mechanical seal selection supplier.
2. Human resources are one of our company's strengths. It is worth emphasizing the R&D team. They are acquainted with the market trend and have deep expertise and creativity to create new products that may lead trend. Our company has complete manufacturing teams. They are able to offer a wide spectrum of services including customer services, product enhancement, package and test development, and quality and reliability issues. Our manufacturing plant is well invested with modern production equipment and adequate technical capacity. This allows us to ensure lead times and delivery precision while working to ensure health, safety, and wellbeing for our employees.
3. We shoulder social responsibilities. Our company is ISO 14001:2015 certified, which demonstrates we are committed to reducing environmental impact and undertake audits evaluating our CO2 output, product life cycle through our Environmental Management System. We always believe that innovation is a breaking point that we should attach more importance to. Besides adopting international technologies, we need to keep us to be inspired by the latest market trends and potential purchasing trends. Keep being curious is our operational principle. We question, hunt, study, examine, probe, observe, query and search, hoping to learn from different perspectives. Integrity is the core value of our company. We aim to demonstrate honesty, respect for others and trustworthiness in all we do.
